Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32361A3806J030CAP FILM 80UF 5% 330VAC RADIAL |
606 |
|
Datasheet |
Radial, Can | 80 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|

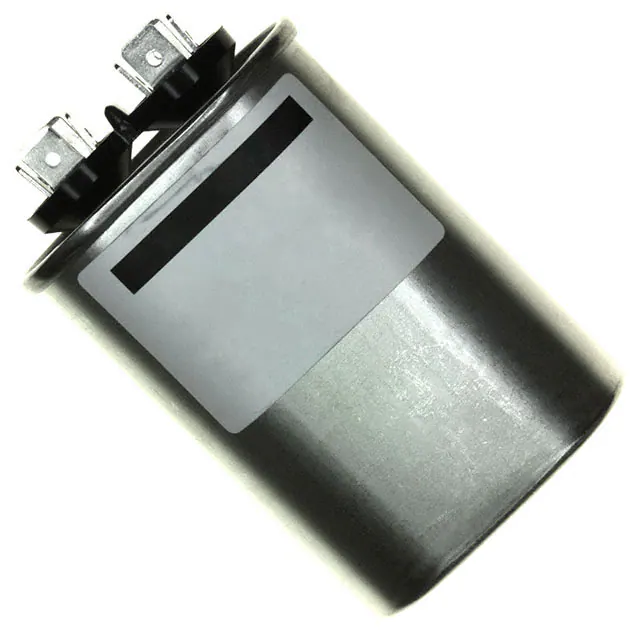

SFA37T12.5K288B-FCAP FILM 12.5UF 10% 370VAC RAD |
301 |
|
Datasheet |
Radial, Can | 12.5 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.000" (76.20mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
JSNDK5470KB6L0CAP FILM 47UF 10% 63VDC SMD |
327 |
|
Datasheet |
SMD, J-Lead | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.606" (15.40mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
C44AMFP5100ZD0JCAP FILM 10UF 5% 850VDC RADIAL |
143 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
935C4W10K-FCAP FILM 10UF 10% 400VDC AXIAL |
159 |
|
Datasheet |
Axial | 10 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.543" Dia x 2.248" L (39.20mm x 57.10mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
B32371A2207J050CAP FILM 200UF 5% 675VDC RADIAL |
201 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 250V | 675V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.315" (135.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
474K400CS6GCAP FILM 0.47UF 10% 400VDC 6SMD |
260 |
|
Datasheet |
6-SMD, Gull Wing | 0.47 µF | ±10% | - | 400V | Polymer, Metallized | 11 mOhms | -55°C ~ 125°C | Surface Mount | 0.701" L x 0.460" W (17.80mm x 11.70mm) | 0.319" (8.10mm) | Gull Wing | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
.jpg)
|
944U101K102ABMCAP FILM 100UF 10% 1KVDC RADIAL |
258 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
FFV34D0167K--CAP FILM 160UF 10% 75VDC RADIAL |
304 |
|
Datasheet |
Radial - 4 Leads | 160 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
|
B32373A5476J030CAP FILM 47UF 5% 1.35KVDC RADIAL |
27 |
|
Datasheet |
Radial, Can | 47 µF | ±5% | 530V | 1350V (1.35kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 4.823" (122.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25680B1427A101CAP FILM 420UF 10% 1.1KV RADIAL |
280 |
|
Datasheet |
Radial, Can | 420 µF | ±10% | - | 1100V (1.1kV) | - | 2.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 5.354" (136.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
.JPG)
|

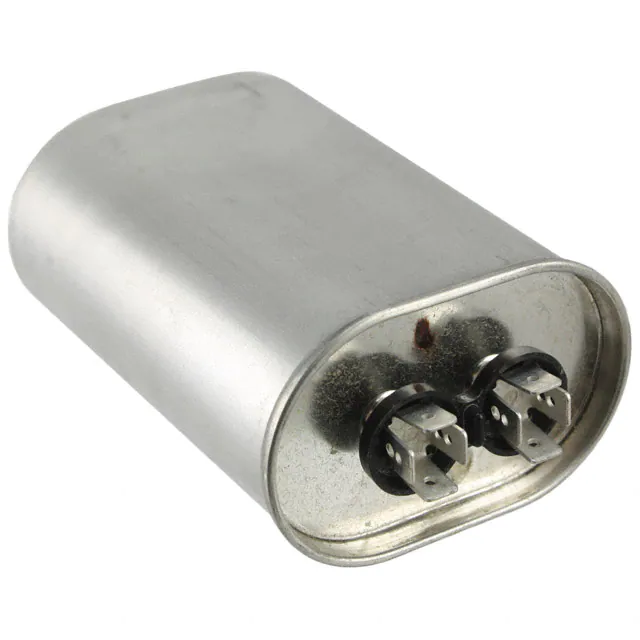

SFC66T15K391B-FCAP FILM 15UF 10% 660VAC RADIAL |
48 |
|
Datasheet |
Radial, Can | 15 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
B25680B0557K901CAP FILM 550UF 10% 900V RADIAL |
57 |
|
Datasheet |
Radial, Can | 550 µF | ±10% | - | 900V | - | 2.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.354" (136.00mm) | Threaded, Female | 1.260" (32.00mm) | General Purpose | - | - |
|
106K100CS4G-FACAP FILM 10UF 10% 100VDC 14SMD |
181 |
|
Datasheet |
14-SMD, Gull Wing | 10 µF | ±10% | - | 100V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Surface Mount | 0.995" L x 0.500" W (25.30mm x 12.70mm) | 0.250" (6.35mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
B25632E0137K900POWER ELECTRONIC CAPACITORS (PEC |
62 |
|
Datasheet |
Radial, Can | 130 µF | ±10% | - | 900V | - | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.598" (66.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
944U141K102ACMCAP FILM 140UF 10% 1KVDC RADIAL |
169 |
|
Datasheet |
Radial, Can | 140 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
B25690A0737K901CAP FILM 730UF 10% 900V RADIAL |
49 |
|
Datasheet |
Radial, Can | 730 µF | ±10% | - | 900V | - | 1.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.929" (176.00mm) | Threaded, Female | 1.260" (32.00mm) | General Purpose | - | - |
|
C44AHGP6100ZA0JCAP FILM 100UF 5% 600VDC RADIAL |
50 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.433" (138.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
B32362A4107J080CAP FILM 100UF 5% 480VAC RADIAL |
168 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.756" (197.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
C44PUGR5150RASKCAP FILM 15UF 10% 1.7KVDC RADIAL |
28 |
|
Datasheet |
Radial, Can | 15 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
