Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLH406K112C134DC LINK, THB, 85/85 |
118 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.579" (65.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32320I4267K000260MFD 450V PP 50X120 PBT 5 PIN |
121 |
|
Datasheet |
Radial, Can - 5 Lead | 260 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
942C12P9K-FCAP FILM 0.9UF 10% 1.2KVDC AXIAL |
156 |
|
Datasheet |
Axial | 0.9 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.220" Dia x 2.520" L (31.00mm x 64.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
MKP1848625094Y5CAP FILM 25UF 5% 900VDC RADIAL |
126 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
C870CG35800AA2JCAP FILM 80UF 5% 470VAC RADIAL |
187 |
|
Datasheet |
Radial, Can | 80 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
940C8W2K-FCAP FILM 2UF 10% 850VDC AXIAL |
213 |
|
Datasheet |
Axial | 2 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.201" Dia x 1.811" L (30.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32778G1256K000CAP FILM 25UF 1.3KVDC RAD 4 LEAD |
655 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32320I4207K000200MFD 450V PP 50X95 PBT 5 PIN |
133 |
|
Datasheet |
Radial, Can - 5 Lead | 200 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 3.740" (95.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
|
B32778G1276K000CAP FILM 27UF 1.3KVDC RAD 4 LEAD |
324 |
|
Datasheet |
Radial - 4 Leads | 27 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1847C630355Y5MKP 30F 10% 350VAC PITCH 52,5 |
433 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
MKP1848630094Y5CAP FILM 30UF 5% 900VDC RADIAL |
113 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
DCP4L055007JD4KSSDCAP FILM 50UF 10% 800VDC RAD |
106 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.378" W (41.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32918A5475M000CAP FILM 4.7UF 20% 1KVDC RADIAL |
286 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X1 | - |
|
SFA44T2K219B-FCAP FILM 2UF 10% 440VAC RADIAL |
160 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.150" (54.61mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
EZP-V60956MTSCAP FILM 95UF 10% 600V RADIAL |
117 |
|
Datasheet |
Radial - 4 Leads | 95 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C44APFP4200ZD0JCAP FILM 2UF 5% 1.2KVDC RADIAL |
112 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
FFB34D0686K--CAP FILM 68UF 10% 75VDC RADIAL |
192 |
|
Datasheet |
Radial | 68 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
C878BF35350SA0JCAP FILM 35UF 5% 470VAC RADIAL |
279 |
|
Datasheet |
Radial, Can | 35 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|

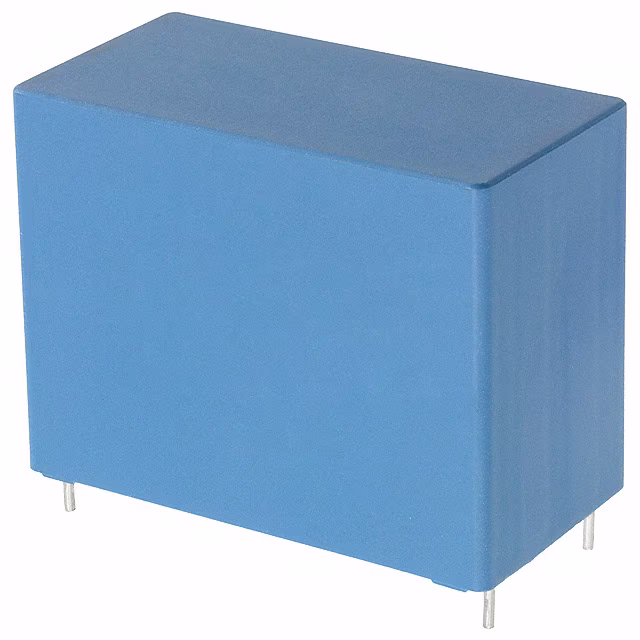

B32778G8506K000CAP FILM 50UF 800VDC RAD 4 LEAD |
125 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
C274ACF5400WA0JCAP FILM 40UF 5% 470VAC RADIAL |
3 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.862" (123.50mm) | Wire Leads | - | Motor Run | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
