Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848C73280JY5CAP FILM 320UF 5% 800VDC RADIAL |
77 |
|
Datasheet |
Radial - 4 Leads | 320 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 1.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 5.118" W (57.50mm x 130.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
B25620C0757K881CAP FILM 750UF 10% 900VDC RADIAL |
60 |
|
Datasheet |
Radial, Can | 750 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.1 mOhms | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.126" (181.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
947D311K132CFRSNCAP FILM 310UF 10% 1.3KVDC RAD |
64 |
|
Datasheet |
Radial, Can | 310 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937" Dia (100.00mm) | 4.449" (113.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
B25680B2477K003470UF +-10% 2000V PEC MKP DC |
51 |
|
Datasheet |
Radial, Can | 470 µF | ±10% | - | 2000V (2kV) | - | 3 mOhms | -40°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 10.984" (279.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
B25620B1947K103CAP FILM 940UF 10% 1.1KVDC RAD |
52 |
|
Datasheet |
Radial, Can | 940 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.811" (173.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|

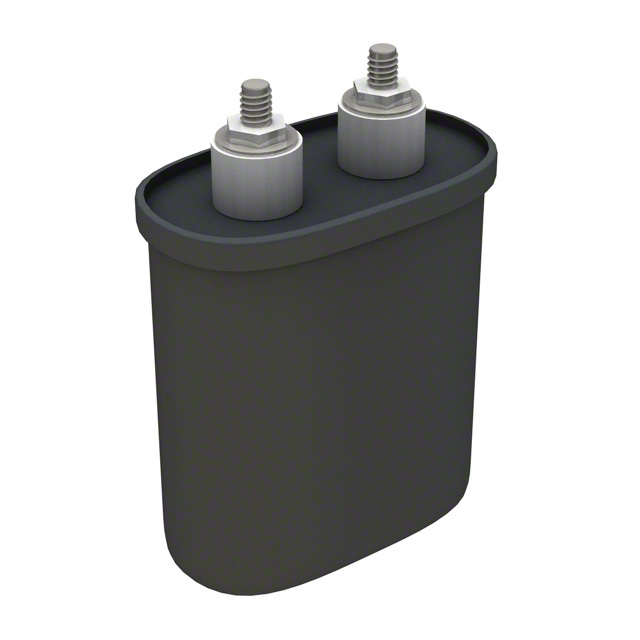

T50W1NR-FCAP FILM 1UF 10% 5KVDC RADIAL |
123 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | - | 5000V (5kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.310" (109.47mm) | Threaded, Male | 1.380" (35.05mm) | EMI, RFI Suppression | - | High Temperature |
|
947C471K102CDMSCAP FILM 470UF 10% 1KVDC RADIAL |
78 |
|
Datasheet |
Radial, Can | 470 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 6.772" (172.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
947D591K132DJRSNCAP FILM 590UF 10% 1.3KVDC RAD |
45 |
|
Datasheet |
Radial, Can | 590 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1118K103CAP FILM 1100UF 10% 1.1KVDC RAD |
44 |
|
Datasheet |
Radial, Can | 1100 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 9.094" (231.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
R82IC2220Z350KCAP FILM 0.022UF 10% 250VDC RAD |
3,250 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82IC2330Z350KCAP FILM 0.033UF 10% 250VDC RAD |
3,726 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82DC3150DQ60KCAP FILM 0.15UF 10% 63VDC RADIAL |
3,219 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
FKS2F014701A00MSSDCAP FILM 4700PF 20% 250VDC RAD |
19,317 |
|
Datasheet |
Radial | 4700 pF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | High Pulse, DV/DT | - | - |
|
|
R82IC2150Z350KCAP FILM 0.015UF 10% 250VDC RAD |
25 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
B32529C0472K289CAP FILM 4700PF 10% 63VDC RADIAL |
12,787 |
|
Datasheet |
Radial | 4700 pF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529C1473K289CAP FILM 0.047UF 10% 100VDC RAD |
11,800 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529C1333K289CAP FILM 0.033UF 10% 100VDC RAD |
8,343 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529C1683K189CAP FILM 0.068UF 10% 100VDC RAD |
7,189 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
B32529C1223K189CAP FILM 0.022UF 10% 100VDC RAD |
6,273 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32529C1472M289CAP FILM 4700PF 20% 100VDC RAD |
5,962 |
|
Datasheet |
Radial | 4700 pF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
