Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
105PPA122KCAP FILM 1UF 10% 1.2KVDC AXIAL |
193 |
|
Datasheet |
Axial | 1 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 85°C | Through Hole | 1.260" Dia x 1.811" L (32.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

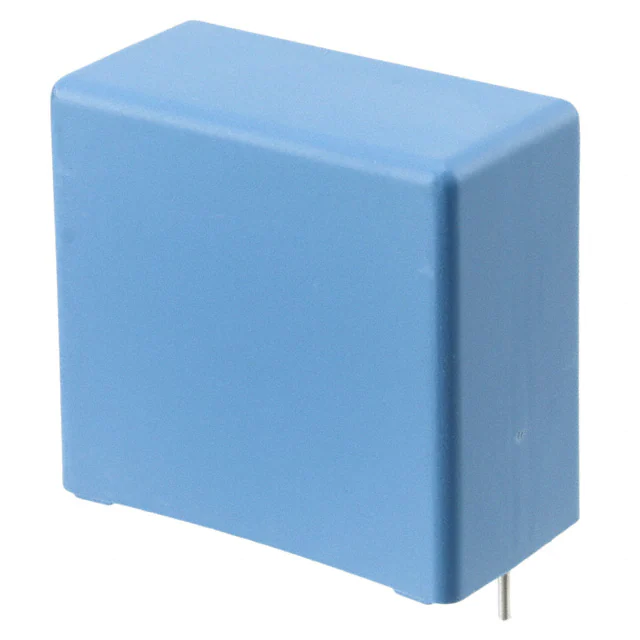

PHE450MR7270JR06L2CAP FILM 2.7UF 5% 630VDC RADIAL |
1,424 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
MPX206K305RCAP FILM 20UF 10% 305VAC RADIAL |
208 |
|
Datasheet |
Radial | 20 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
EZP-V1B256MTTCAP FILM 25UF 10% 1100V RADIAL |
235 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.106" (53.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

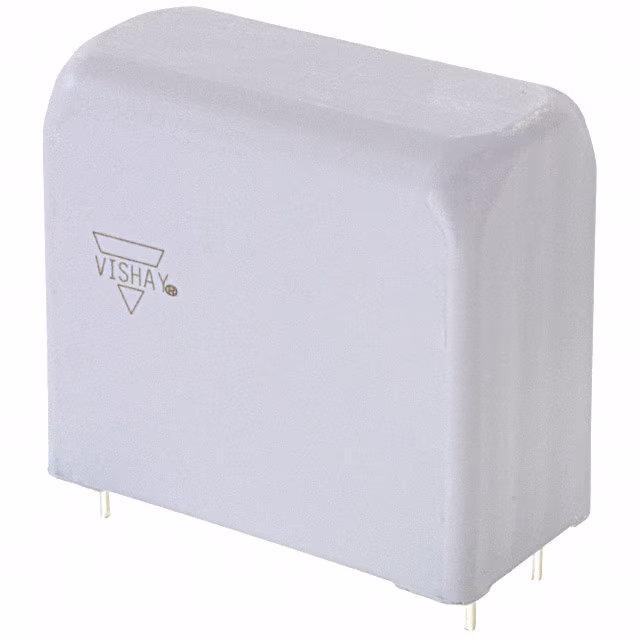

MKP1847580354P4CAP FILM 8UF 5% 700VDC RADIAL |
203 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
C4ATHBW4900A3LJCAP FILM 9UF 5% 600VDC RADIAL |
180 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AF7BW5100T3OKFILM, POWER, METALLIZED POLYPROP |
104 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
B32564J1336K000CAP FILM 33UF 10% 100VDC 2DIP |
1,973 |
|
Datasheet |
2-DIP | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.142" L x 0.512" W (29.00mm x 13.00mm) | 0.780" (19.80mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
Z26S6045M50NCAP FILM 45UF -1% +5% 600VAC RAD |
319 |
|
Datasheet |
Radial, Can | 45 µF | -1%, +5% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 1.750" Dia (44.45mm) | 2.870" (72.90mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
B32526T3226K000CAP FILM 22UF 10% 250VDC RADIAL |
400 |
|
Datasheet |
Radial | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
R60ER54705040KCAP FILM 47UF 10% 100VDC RAD |
107 |
|
Datasheet |
Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PMB2124100KSPCAP FILM 1UF 10% 1.2KVDC SCREW |
480 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.319" W (42.50mm x 33.50mm) | 1.398" (35.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

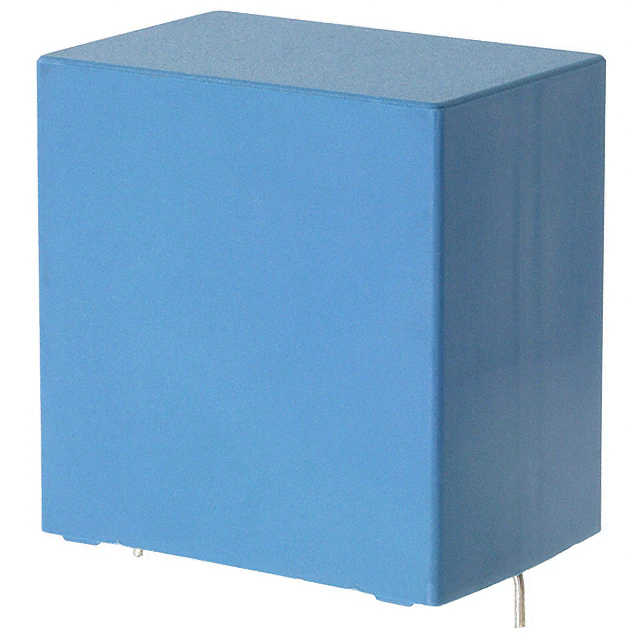

B32526R3686K000CAP FILM 68UF 10% 250VDC RADIAL |
386 |
|
Datasheet |
Radial | 68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
C4AQLBW5540M3HKCAP FILM 54UF 10% 500VDC RADIAL |
130 |
|
Datasheet |
Radial - 4 Leads | 54 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
50MU475MD35750CAP FILM 4.7UF 20% 50VDC 2220 |
1,215 |
|
Datasheet |
2220 (5750 Metric) | 4.7 µF | ±20% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
940C16P47K-FCAP FILM 0.47UF 1.6KVDC AXIAL |
266 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.083" Dia x 1.811" L (27.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
EZP-Q33356MTACAP FILM 35UF 5% 330VAC RADIAL |
192 |
|
Datasheet |
Radial - 4 Leads | 35 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.461" (62.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
B32776E8306K000CAP FILM 30UF 10% 800VDC RADIAL |
1,128 |
|
Datasheet |
Radial | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
C276CC35600AA0JCAP FILM 60UF 5% 470VAC RADIAL |
262 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.803" (122.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
B32756G8156K000CAP FILM 15UF 10% 600VDC RADIAL |
135 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
