Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C276CCF5200LG0JCAP FILM 20UF 5% 470VAC RADIAL |
318 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
B32926D3156M000CAP FILM 15UF 20% 630VDC RADIAL |
150 |
|
Datasheet |
Radial | 15 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
405PHC600KCAP FILM 4UF 10% 600VDC AXIAL |
455 |
|
Datasheet |
Axial | 4 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 1.811" L (27.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
C284ACA4600AL2JCAP FILM 6UF 5% 470VAC RADIAL |
155 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|
C878BF35100SA0JCAP FILM 10UF 5% 470VAC RADIAL |
218 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
EZP-V60256MTBCAP FILM 25UF 10% 600V RADIAL |
237 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 8.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
B32332I6156J080CAP FILM 15UF 5% 450VAC RADIAL |
150 |
|
Datasheet |
Radial, Can | 15 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.189" (81.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
MKP1839533634HQCAP FILM 3.3UF 5% 630VDC AXIAL |
677 |
|
Datasheet |
Axial | 3.3 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.102" Dia x 1.240" L (28.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

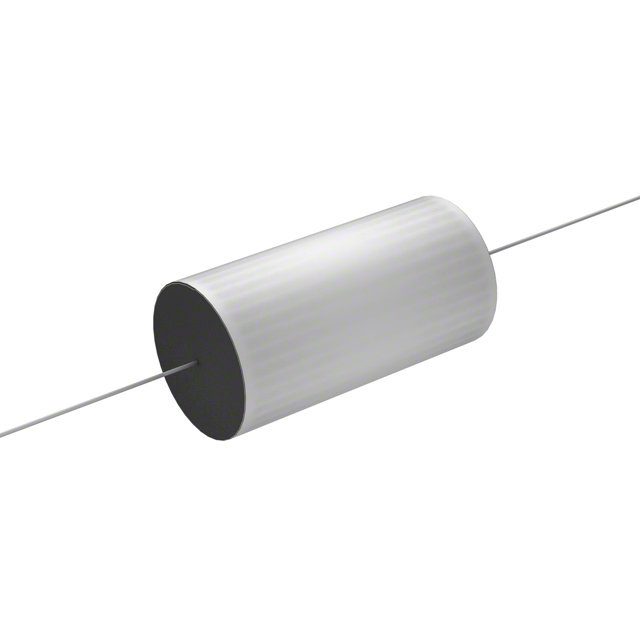

WMF2W2K-FCAP FILM 2UF 10% 250VDC AXIAL |
2,411 |
|
Datasheet |
Axial | 2 µF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.965" Dia x 1.874" L (24.50mm x 47.60mm) | - | PC Pins | - | General Purpose | - | - |
|
R60IW52205040KCAP FILM 22UF 10% 250VDC RADIAL |
339 |
|
Datasheet |
Radial | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
FFB36A0625K--CAP FILM 6.2UF 10% 720VDC RADIAL |
272 |
|
Datasheet |
Radial | 6.2 µF | ±10% | 120V | 720V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
B32778Z5606K000CAP FILM 60UF 600VDC RDL 4 LEAD |
233 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 5.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
PMB2123330KVPCAP FILM 0.33UF 1.2KVDC SCREW |
140 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
FFB34H0166K--CAP FILM 16UF 10% 300VDC RADIAL |
161 |
|
Datasheet |
Radial | 16 µF | ±10% | 90V | 300V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
C4AF3BW5100A3MKCAP FILM 10UF 10% 400VAC RADIAL |
243 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
B32778Z4756K000CAP FILM 75UF 500VDC RDL 4 LEAD |
244 |
|
Datasheet |
Radial - 4 Leads | 75 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32926D3156K000CAP FILM 15UF 10% 630VDC RADIAL |
170 |
|
Datasheet |
Radial | 15 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
C274ACF5150WA0JCAP FILM 15UF 5% 470VAC RADIAL |
116 |
|
Datasheet |
Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
BFC238320105CAP FILM 1UF 5% 630VDC RADIAL |
1,943 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
C4AQLBW5500A3JKCAP FILM 50UF 10% 500VDC RADIAL |
258 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
