BOM Upload
Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4225JLCAP FILM 2.2UF 5% 400VDC RADIAL |
903 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.661" W (28.00mm x 16.80mm) | 1.004" (25.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECQ-E1685JFCAP FILM 6.8UF 5% 100VDC RADIAL |
411 |
|
Datasheet |
Radial | 6.8 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
LDEQF2220KA5N00CAP FILM 0.022UF 10% 1KVDC 4030 |
1,867 |
|
Datasheet |
4030 (10276 Metric) | 0.022 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.134" (3.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32653A0564K000CAP FILM 0.56UF 10% 1KVDC RADIAL |
865 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32654A7224K000CAP FILM 0.22UF 10% 1.25KVDC RAD |
729 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQUBU4220A1YJCAP FILM 2.2UF 5% 1.3KVDC RADIAL |
286 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

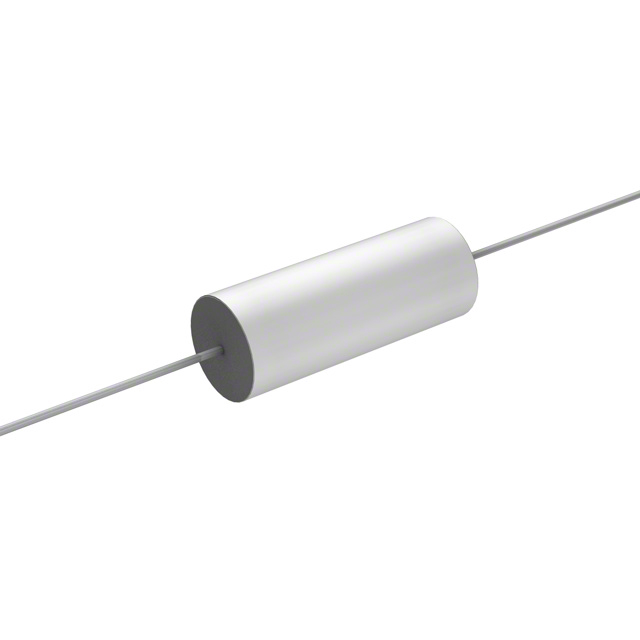

WMF05P22K-FCAP FILM 0.22UF 10% 50VDC AXIAL |
145 |
|
Datasheet |
Axial | 0.22 µF | ±10% | - | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.358" Dia x 0.811" L (9.10mm x 20.60mm) | - | PC Pins | - | General Purpose | - | - |
|
ECW-FG80335JCAP FILM 3.3UF 800VDC RADIAL |
126 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
ECQ-E2475KBCAP FILM 4.7UF 10% 250VDC RADIAL |
8,139 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.469" W (20.80mm x 11.90mm) | 0.866" (22.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
BFC237510222CAP FILM 2200PF 5% 630VDC RADIAL |
1,766 |
|
Datasheet |
Radial | 2200 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.236" W (14.50mm x 6.00mm) | 0.551" (14.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
ECW-F6105JLCAP FILM 1UF 5% 630VDC RADIAL |
731 |
|
Datasheet |
Radial | 1 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.937" (23.80mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
BFC247076684CAP FILM 0.68UF 5% 63VDC RADIAL |
555 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
MKP1840410104MCAP FILM 0.1UF 5% 1KVDC RADIAL |
379 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71XN447050H0KFILM, RADIAL, PULSE, SINGLE META |
223 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R463R422000M1KCAP FILM 2.2UF 10% 630VDC RADIAL |
1,789 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-H12563JVCAP FILM 0.056UF 5% 1.25KVDC RAD |
168 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.453" W (28.00mm x 11.50mm) | 0.846" (21.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
BFC237353474CAP FILM 0.47UF 10% 400VDC RAD |
166 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
QXK2G155KTPCAP FILM 1.5UF 10% 400VDC RADIAL |
135 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.370" W (30.50mm x 9.40mm) | 0.768" (19.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
_06x00KSSD.jpg)
|
MKS4O136806F00KSSDCAP FILM 0.68UF 10% 1KVDC RADIAL |
1,733 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
F17723102000CAP FILM 10000PF 10% 630VDC RAD |
1,483 |
|
Datasheet |
Radial | 10000 pF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
