Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

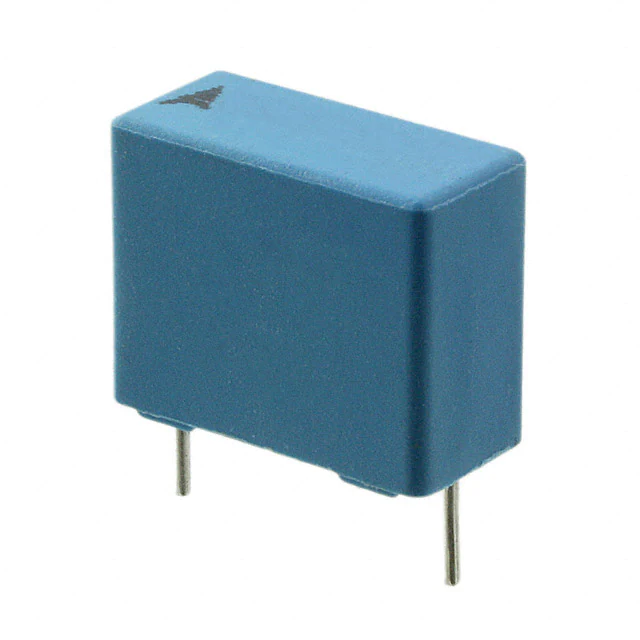

B32522C0685K000CAP FILM 6.8UF 10% 63VDC RADIAL |
1,015 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
R474N33304001MCAP FILM 0.33UF 20% 1KVDC RADIAL |
527 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75MN41004030JCAP FILM 1UF 5% 400VDC RADIAL |
133 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC246828224CAP FILM 0.22UF 10% 400VDC RAD |
3,910 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
SMDID02470QA00KP00CAP FILM 0.047UF 10% 100VDC 2220 |
2,556 |
|
Datasheet |
2220 (5750 Metric) | 0.047 µF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.150" (3.80mm) | Solder Pads | - | General Purpose | - | - |
|
SMDTG03470YA00KT00CAP FILM 0.47UF 10% 200VAC 6054 |
1,867 |
|
Datasheet |
6054 (153137 Metric) | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
C4AQIBU4270M1WJCAP FILM 2.7UF 5% 800VDC RADIAL |
855 |
|
Datasheet |
Radial | 2.7 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 18.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-FG1B155JCAP FILM 1.5UF 5% 1.1KVDC RAD |
703 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
B32934A3474K000CAP FILM 0.47UF 10% 305VAC RAD |
1,145 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
R474N33305001KCAP FILM 0.33UF 10% 1KVDC RADIAL |
954 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R533N422050P0MCAP FILM 2.2UF 20% 630VDC RADIAL |
919 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-H12333JVCAP FILM 0.033UF 5% 1.25KVDC RAD |
627 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.394" W (23.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

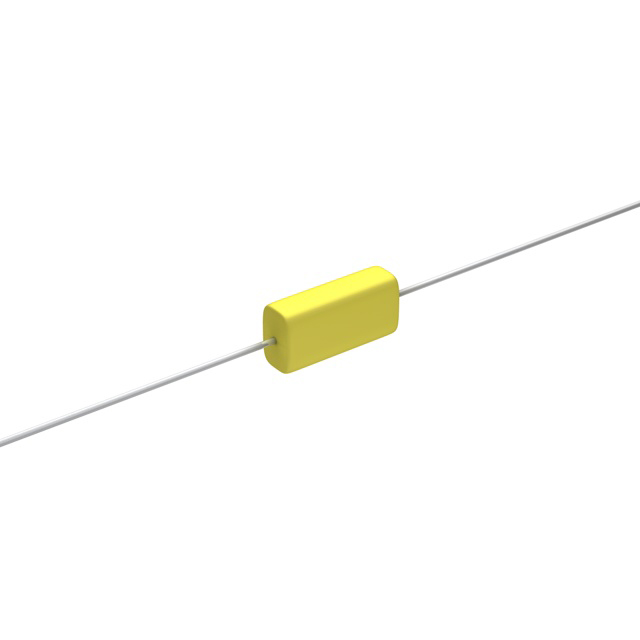

MMP6S1K-FCAP FILM 10000PF 630VDC AXIAL |
580 |
|
Datasheet |
Axial | 10000 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.354" W, 0.197" T x 0.669" L (9.00mm, 5.00mm x 17.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
WMF2D22K-FCAP FILM 2200PF 10% 250VDC AXIAL |
503 |
|
Datasheet |
Axial | 2200 pF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189" Dia x 0.563" L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
R46KR415000M1KCAP FILM 1.5UF 10% 560VDC RADIAL |
480 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R53BN347050S0MCAP FILM 0.47UF 20% 800VDC RAD |
204 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-F4154JBCAP FILM 0.15UF 5% 400VDC RADIAL |
989 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF335KCAP FILM 3.3UF 10% 275VAC RADIAL |
183 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC241841003CAP FILM 10000PF 2% 250VDC RAD |
3,065 |
|
Datasheet |
Radial | 10000 pF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
155MKP275KGCAP FILM 1.5UF 10% 310VAC RADIAL |
2,163 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.839" (21.30mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
