Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
155MWR250KCAP FILM 1.5UF 10% 250VDC AXIAL |
404 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 160V | 250V | Polyester, Metallized | 1.179 Ohms | -40°C ~ 105°C | Through Hole | 0.472" Dia x 1.142" L (12.00mm x 29.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECW-U1154JC9CAP FILM 0.15UF 5% 100VDC 2416 |
4,711 |
|
Datasheet |
2416 (6041 Metric) | 0.15 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E4155JFCAP FILM 1.5UF 5% 400VDC RADIAL |
1,030 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32524Q6105K000CAP FILM 1UF 10% 400VDC RADIAL |
854 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
335MWR050KCAP FILM 3.3UF 10% 50VDC AXIAL |
814 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 30V | 50V | Polyester, Metallized | 536 mOhms | -40°C ~ 105°C | Through Hole | 0.394" Dia x 0.807" L (10.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECW-F6184JLCAP FILM 0.18UF 5% 630VDC RADIAL |
513 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.386" W (18.00mm x 9.80mm) | 0.618" (15.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-F6105HLCAP FILM 1UF 3% 630VDC RADIAL |
386 |
|
Datasheet |
Radial | 1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.937" (23.80mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECW-F4224JLCAP FILM 0.22UF 5% 400VDC RADIAL |
215 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.594" (15.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
PME271Y533MR30CAP FILM 0.033UF 20% 1KVDC RAD |
19,594 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
MKY22W32205I00KSSDCAP FILM 0.22UF 10% 300VAC RAD |
8,014 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
BFC237021334CAP FILM 0.33UF 10% 100VDC RAD |
6,908 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
B32674D4155K000CAP FILM 1.5UF 10% 450VDC RADIAL |
6,268 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 22.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
715P2725800LA3CAP FILM 2700PF 5% 1.8KVDC RAD |
5,814 |
|
Datasheet |
Radial | 2700 pF | ±5% | 800V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.362" Dia x 1.122" L (9.20mm x 28.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
150332J630BBCAP FILM 3300PF 5% 630VDC AXIAL |
4,380 |
|
Datasheet |
Axial | 3300 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
BFC233860104CAP FILM 0.1UF 20% 1KVDC RADIAL |
3,998 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC238350103CAP FILM 10000PF 5% 1.6KVDC RAD |
717 |
|
Datasheet |
Radial | 10000 pF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
R60EI43305030JCAP FILM 3.3UF 5% 100VDC RADIAL |
433 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
R586I282050T0KCAP FILM 600VAC(X1) 0.082 UF 10% |
329 |
|
Datasheet |
Radial | 0.08 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
R586N310050T0KCAP FILM 600VAC(X1) 0.1 UF 10% |
277 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

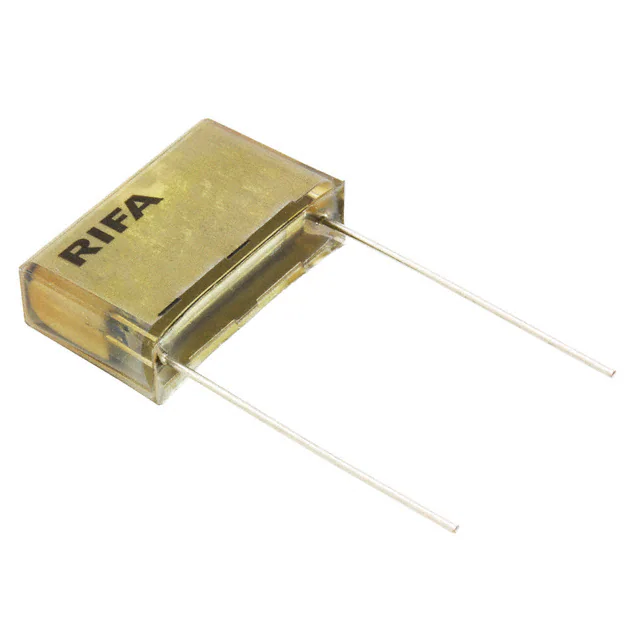

PME271YD5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
223 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
