Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76QR318050H3JCAP FILM 0.18UF 5% 1KVDC RAD |
189 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32933A3824K000CAP FILM 0.82UF 10% 305VAC RAD |
1,926 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R463R422040M2MCAP FILM 2.2UF 20% 630VDC RAD |
740 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 18x10.jpg)
|
ECW-F2155JACAP FILM 1.5UF 5% 250VDC RADIAL |
422 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.413" W (18.80mm x 10.50mm) | 0.673" (17.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R41BN322050T0KCAP FILM 0.22UF 10% 1.5KVDC RAD |
197 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32913C5104K000CAP FILM 0.1UF 10% 1KVDC RADIAL |
170 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-F4394JBCAP FILM 0.39UF 5% 400VDC RADIAL |
133 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.531" W (23.00mm x 13.50mm) | 0.866" (22.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
.jpg)
|

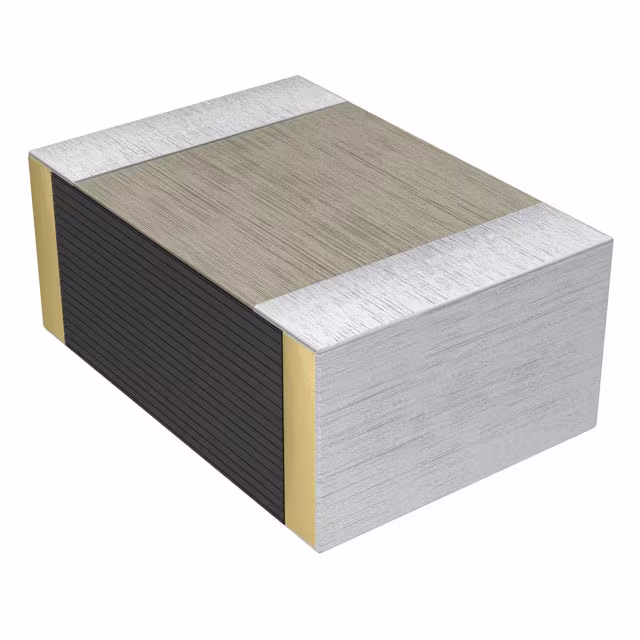

ECH-U1H184GX9CAP FILM 0.18UF 2% 50VDC 2416 |
6,823 |
|
Datasheet |
2416 (6041 Metric) | 0.18 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | General Purpose | - | - |
|
BFC233845105CAP FILM 1UF 10% 800VDC RADIAL |
1,200 |
|
Datasheet |
Radial | 1 µF | ±10% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KR410000M1KCAP FILM 1UF 10% 560VDC RADIAL |
1,505 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC236825474CAP FILM 0.47UF 10% 100VDC RAD |
1,246 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.217" W (17.50mm x 5.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
ECW-U2563JC9CAP FILM 0.056UF 5% 250VDC 2416 |
1,214 |
|
Datasheet |
2416 (6041 Metric) | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32924H3105MCAP FILM 1UF 20% 630VDC RADIAL |
1,211 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECW-F4244JLCAP FILM 0.24UF 5% 400VDC RADIAL |
978 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
PWS2201470KGCAP FILM 4700PF 10% 2KVDC SCREW |
504 |
|
Datasheet |
Rectangular Box | 4700 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 0.335" Dia x 1.063" L (8.50mm x 27.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
BFC237321334CAP FILM 0.33UF 10% 100VDC RAD |
199 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
B32913A5154M000CAP FILM 0.15UF 20% 1KVDC RADIAL |
13,706 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
F862DU105K310ZLH0JCAP FILM 1UF 10% 630VDC RADIAL |
4,384 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-U1C394JC9CAP FILM 0.39UF 5% 16VDC 2416 |
3,755 |
|
Datasheet |
2416 (6041 Metric) | 0.39 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
MKS4J033306A00KSSDCAP FILM 0.33UF 10% 630VDC RAD |
1,982 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
