Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4G041005G00MSSDCAP FILM 1UF 20% 400VDC RADIAL |
1,458 |
|
Datasheet |
Radial | 1 µF | ±20% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R46KR3470CK01MCAP FILM 0.47UF 20% 560VDC RAD |
1,329 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

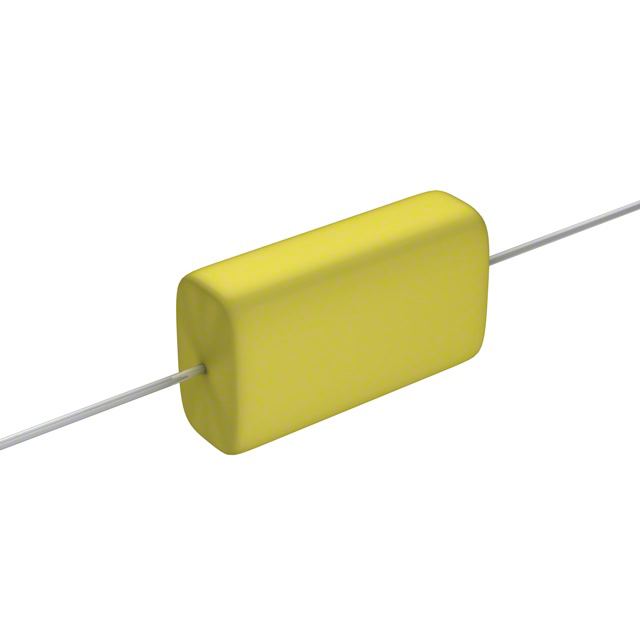

MMP4P47K-FCAP FILM 0.47UF 10% 400VDC AXIAL |
186 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.610" W, 0.354" T x 1.063" L (15.50mm, 9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
ECW-U1154KC9CAP FILM 0.15UF 10% 100VDC 2416 |
165 |
|
Datasheet |
2416 (6041 Metric) | 0.15 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
475MMR250KCAP FILM 4.7UF 10% 250VDC RADIAL |
9,276 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
-2,80mm.jpg)
|
CB038D0104JBACAP FILM 0.1UF 5% 50VDC 1812 |
3,666 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.094" (2.40mm) | Solder Pads | - | General Purpose | - | Low ESR, Low ESL |
|
BFC233620334CAP FILM 0.33UF 20% 630VDC RAD |
3,483 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MKT1822510015CAP FILM 1UF 10% 100VDC RADIAL |
2,115 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F4304HLCAP FILM 0.3UF 3% 400VDC RADIAL |
139 |
|
Datasheet |
Radial | 0.3 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.362" W (18.00mm x 9.20mm) | 0.606" (15.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
FCN1913G103J-E3CAP FILM 10000PF 5% 400VDC 1913 |
5,850 |
|
Datasheet |
1913 (4833 Metric) | 10000 pF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
BFC237351474CAP FILM 0.47UF 10% 400VDC RAD |
3,150 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
684MKP275KCAP FILM 0.68UF 10% 310VAC RAD |
2,368 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.256" W (31.00mm x 6.50mm) | 0.622" (15.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC247086223CAP FILM 0.022UF 5% 100VDC RAD |
1,930 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
B32522C0475K189CAP FILM 4.7UF 10% 63VDC RADIAL |
1,843 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC236855224CAP FILM 0.22UF 10% 400VDC RAD |
1,069 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.248" W (26.00mm x 6.30mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
B32923P3205K000FILM CAP MKP X2 - 125C, 2UF 10% |
811 |
|
Datasheet |
Radial | 2 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233610104CAP FILM 0.1UF 20% 630VDC RADIAL |
500 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC237363104CAP FILM 0.1UF 10% 630VDC RADIAL |
176 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
MKS4D044706A00JSSDCAP FILM 4.7UF 5% 100VDC RADIAL |
1,008 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
R4Y5I16805000KCAP FILM 500VAC Y1 6800PF RADIAL |
439 |
|
Datasheet |
Radial | 6800 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
