Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H12102JVCAP FILM 1000PF 5% 1.25KVDC RAD |
1,000 |
|
Datasheet |
Radial | 1000 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
BFC237251473CAP FILM 0.047UF 10% 400VDC RAD |
950 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
R75TI22204030JCAP FILM 0.022UF 5% 1.6KVDC RAD |
947 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75UN256050H3JCAP FILM 0.056UF 5% 2KVDC RADIAL |
849 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 19.9 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32653A4474K000CAP FILM 0.47UF 10% 400VDC RAD |
523 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
R53BI32205000KCAP FILM 0.22UF 10% 800VDC RAD |
483 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.583" (14.80mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-H12122JVCAP FILM 1200PF 5% 1.25KVDC RAD |
462 |
|
Datasheet |
Radial | 1200 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KN368040M2MCAP FILM 0.68UF 20% 560VDC RAD |
400 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32529D0225K000CAP FILM 2.2UF 10% 63VDC RADIAL |
14,226 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R76PI22204030JCAP FILM 0.022UF 5% 630VDC RAD |
2,669 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32653A0104J000CAP FILM 0.1UF 5% 1KVDC RADIAL |
2,020 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

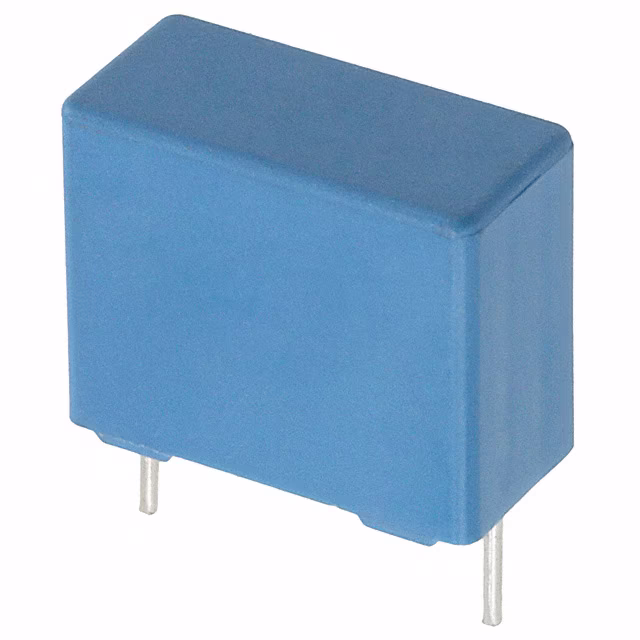

B32672P5684K000CAP FILM 0.68UF 10% 520VDC RAD |
2,005 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
ECW-U1563JC9CAP FILM 0.056UF 5% 100VDC 1913 |
1,917 |
|
Datasheet |
1913 (4833 Metric) | 0.056 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
MKY22W24704F00KSSDCAP FILM 0.047UF 10% 300VAC RAD |
1,362 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
F339X136848MFP2B0CAP FILM 0.068UF 20% 1KVDC RAD |
991 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R46KI3470JBM1KCAP FILM 0.47UF 10% 560VDC RAD |
724 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
154MWR250KCAP FILM 0.15UF 10% 250VDC AXIAL |
649 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECW-FD2W185JCAP FILM 1.8UF 5% 450VDC RADIAL |
443 |
|
Datasheet |
Radial | 1.8 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.398" W (17.50mm x 10.10mm) | 0.524" (13.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F862DJ334K310ZV054CAP FILM 0.33UF 10% 630VDC RAD |
166 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KN368040P0MCAP FILM 0.68UF 20% 560VDC RAD |
117 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
