Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R46KI3330DQN0KCAP FILM 0.33UF 10% 560VDC RAD |
733 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R71PI34704030MCAP FILM 0.47UF 20% 630VDC RAD |
315 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
ECQ-E6334JFCAP FILM 0.33UF 5% 630VDC RADIAL |
165 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.307" W (26.00mm x 7.80mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32022A3103M189CAP FILM 10000PF 20% 300VAC RAD |
7,250 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
SMDTD02680KA00MP00CAP FILM 0.068UF 20% 63VAC 1812 |
4,140 |
|
Datasheet |
1812 (4532 Metric) | 0.068 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
MKP4O126804F00JSSDCAP FILM 0.068UF 5% 1KVDC RAD |
3,567 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-U2473KC9CAP FILM 0.047UF 10% 250VDC 2416 |
3,285 |
|
Datasheet |
2416 (6041 Metric) | 0.047 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2102V16CAP FILM 1000PF 5% 250VDC 1913 |
3,210 |
|
Datasheet |
1913 (4833 Metric) | 1000 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32682A6103K000CAP FILM 10000PF 10% 630VDC RAD |
2,282 |
|
Datasheet |
Radial | 10000 pF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
R76PI2120SE00JCAP FILM 0.012UF 5% 630VDC RAD |
1,977 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI347050M1KCAP FILM 0.47UF 10% 560VDC RAD |
1,188 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
 Series.jpg)
|
ECW-FE2J684KCAP FILM 0.68UF 10% 630VDC RAD |
928 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.433" W (17.50mm x 11.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FD2J824JCAP FILM 0.82UF 5% 630VDC RADIAL |
647 |
|
Datasheet |
Radial | 0.82 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.402" W (17.80mm x 10.20mm) | 0.594" (15.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN347045N0MCAP FILM 0.47UF 20% 560VDC RAD |
539 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-H16682JVCAP FILM 6800PF 5% 1.6KVDC RAD |
331 |
|
Datasheet |
Radial | 6800 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.276" W (23.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
B32932A3474M000CAP FILM 0.47UF 20% 305VAC RAD |
14,223 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

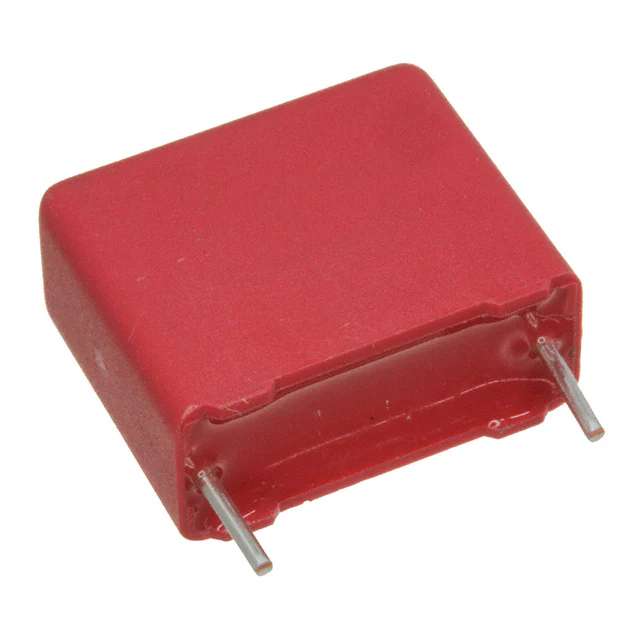

MKS4G034704F00KSSDCAP FILM 0.47UF 10% 400VDC RAD |
7,845 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32933A3224K189CAP FILM 0.22UF 10% 305VAC RAD |
4,244 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECQ-E4274JFCAP FILM 0.27UF 5% 400VDC RADIAL |
941 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.602" (15.30mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
ECQ-E1185KFCAP FILM 1.8UF 10% 100VDC RADIAL |
508 |
|
Datasheet |
Radial | 1.8 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.606" (15.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
