Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R66DD4100Z37AJCAP FILM 1UF 5% 63VDC RADIAL |
1,086 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
B32522C3105J000CAP FILM 1UF 5% 250VDC RADIAL |
907 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32923H3684MCAP FILM 0.68UF 20% 630VDC RAD |
727 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R76MI33905050JFILM, RADIAL, PULSE, DOUBLE META |
703 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R4Y5I12205000KCAP FILM 500VAC Y1 2200PF RADIAL |
452 |
|
Datasheet |
Radial | 2200 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
ECQ-E6564KFCAP FILM 0.56UF 10% 630VDC RAD |
439 |
|
Datasheet |
Radial | 0.56 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R75PI32204030JCAP FILM 0.22UF 5% 630VDC RADIAL |
428 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75PI3330AA30KCAP FILM 0.33UF 10% 630VDC RAD |
411 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
473MPW160KCAP FILM 0.047UF 160VDC AXIAL |
287 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 3.763 Ohms | -55°C ~ 105°C | Through Hole | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
BFC237252473CAP FILM 0.047UF 5% 400VDC RAD |
144 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|

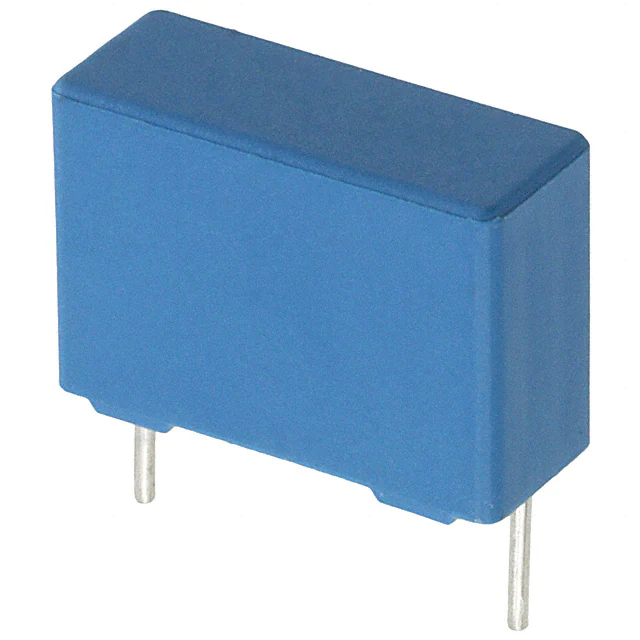

B32672P5474K000CAP FILM 0.47UF 10% 520VDC RAD |
5,385 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
MKS0C021000B00JSSDCAP FILM 10000PF 5% 63VDC RAD |
4,408 |
|
Datasheet |
Radial | 10000 pF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
ECW-U2273KC9CAP FILM 0.027UF 10% 250VDC 1913 |
4,294 |
|
Datasheet |
1913 (4833 Metric) | 0.027 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1U011005A00MSSDCAP FILM 1000PF 20% 2KVDC RAD |
3,630 |
|
Datasheet |
Radial | 1000 pF | ±20% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.197" W (26.50mm x 5.00mm) | 0.551" (14.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32672P6474J000CAP FILM 0.47UF 5% 630V RADIAL |
2,321 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32672P6474K000CAP FILM 0.47UF 10% 630VDC RAD |
2,219 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
R49AI24705001KCAP FILM 0.047UF 10% 800VDC RAD |
1,655 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R60EF4150506AKCAP FILM 1.5UF 10% 100VDC RADIAL |
1,569 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
 Series Style B 8-W.jpg)
|
ECW-F2W394JAQCAP FILM 0.39UF 5% 450VDC RADIAL |
1,544 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.319" W (13.00mm x 8.10mm) | 0.736" (18.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-H8333HACAP FILM 0.033UF 3% 800VDC RAD |
1,059 |
|
Datasheet |
Radial | 0.033 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618" L x 0.331" W (15.70mm x 8.40mm) | 0.563" (14.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
