Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DME2S1K-FCAP FILM 10000PF 10% 250VDC RAD |
517 |
|
Datasheet |
Radial | 10000 pF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECW-HC3F392JDCAP FILM 3900PF 5% 3KVDC RADIAL |
486 |
|
Datasheet |
Radial | 3900 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 0.480" (12.20mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
PHE840EX6220MB06R17CAP FILM 0.22UF 20% 760VDC RAD |
443 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R60EI4220AA30JCAP FILM 2.2UF 5% 100VDC RADIAL |
382 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R75GI368050H0JCAP FILM 0.68UF 5% 160VDC RADIAL |
363 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC237042223CAP FILM 0.022UF 5% 250VDC RAD |
9,559 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|

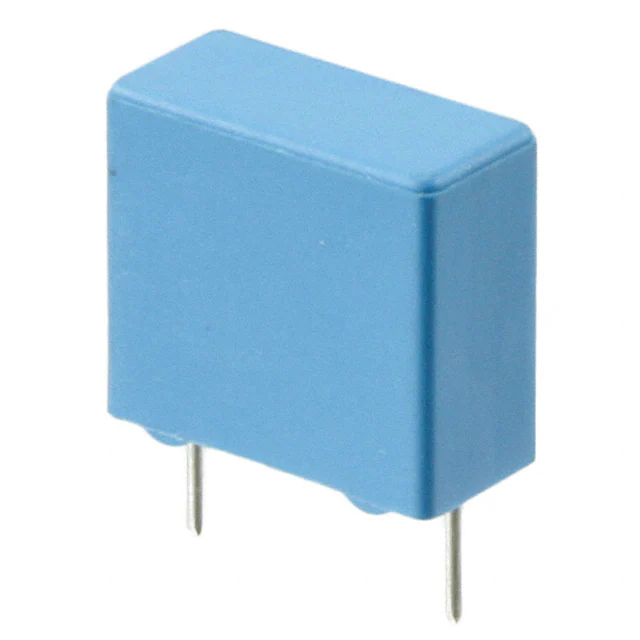

PHE450HA6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
4,001 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R463N368050M2KCAP FILM 0.68UF 10% 630VDC RAD |
2,586 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
DME2S47K-FCAP FILM 0.047UF 10% 250VDC RAD |
1,773 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
MKX2AW32205B00KSSDCAP FILM 0.22UF 10% 630VDC RAD |
1,520 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KI347045P2MCAP FILM 0.47UF 20% 560VDC RAD |
1,014 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
QXK2J103KTPTZHCAP FILM 10000PF 10% 630VDC RAD |
1,000 |
|
Datasheet |
Radial | 10000 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.189" W (15.50mm x 4.80mm) | 0.409" (10.40mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
ECQ-E6274JFCAP FILM 0.27UF 5% 630VDC RADIAL |
1,000 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R73QI14704030JCAP FILM 4700PF 5% 1KVDC RADIAL |
1,000 |
|
Datasheet |
Radial | 4700 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC233920224CAP FILM 0.22UF 20% 630VDC RAD |
908 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
 Series Style D 18x6.jpg)
|
ECW-F2564JAQCAP FILM 0.56UF 5% 250VDC RADIAL |
834 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.272" W (18.10mm x 6.90mm) | 0.783" (19.90mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KI347000P2MCAP FILM 0.47UF 20% 560VDC RAD |
680 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKS4G034705B00JSSDCAP FILM 0.47UF 5% 400VDC RADIAL |
581 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R75II38204080JCAP FILM 0.82UF 5% 250VDC RADIAL |
437 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R523I347050P0KCAP FILM 0.47UF 10% 630VDC RAD |
414 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200, X2 | - |
