Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R60EF4100506AKCAP FILM 1UF 10% 100VDC RADIAL |
493 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
890334026027CAP FILM 1UF 10% 310VAC RADIAL |
391 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MB6150KB10R17CAP FILM 0.15UF 10% 760VDC RAD |
344 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
474MSR400KCAP FILM 0.47UF 10% 400VDC RAD |
2,645 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.925" L x 0.413" W (23.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.787" (20.00mm) | General Purpose | - | - |
|
LDECA2100JA0N00CAP FILM 10000PF 5% 50VDC 1206 |
6,077 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

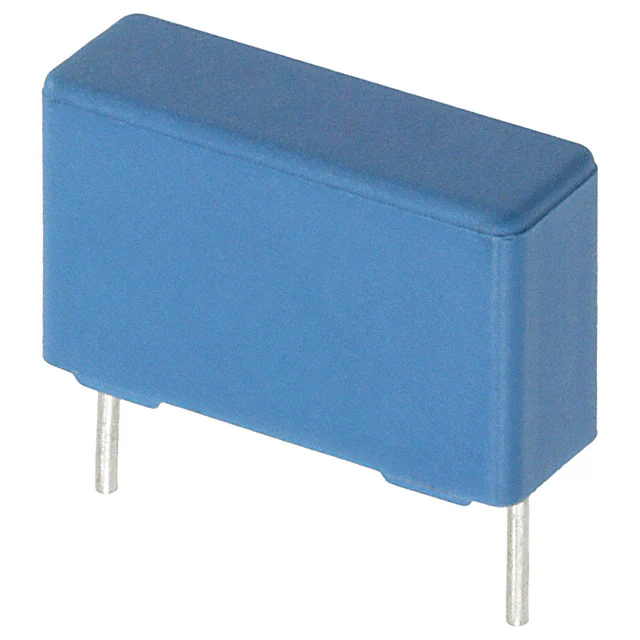

B32672P5334K000CAP FILM 0.33UF 10% 520VDC RAD |
5,170 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
MKP4G033304F00JSSDCAP FILM 0.33UF 5% 400VDC RAD |
3,057 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R76UN23905050JFILM, RADIAL, PULSE, DOUBLE META |
2,195 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 16.3 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75UI222050H3JCAP FILM 0.022UF 5% 2KVDC RADIAL |
675 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 36.2 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E4564KFCAP FILM 0.56UF 10% 400VDC RAD |
638 |
|
Datasheet |
Radial | 0.56 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R463N368050H7KCAP FILM 0.68UF 10% 630VDC RAD |
453 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
R41BI247050T0KCAP FILM 0.047UF 10% 1.5KVDC RAD |
282 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
QXK2G333KTPCAP FILM 0.033UF 10% 400VDC RAD |
268 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.433" L x 0.193" W (11.00mm x 4.90mm) | 0.398" (10.10mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECW-FD2J275KCAP FILM 2.7UF 10% 630VDC RADIAL |
125 |
|
Datasheet |
Radial | 2.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.543" W (25.30mm x 13.80mm) | 0.756" (19.20mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B81123C1222M289CAP FILM 2200PF 20% 500VAC RAD |
15,900 |
|
Datasheet |
Radial | 2200 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
BFC237341224CAP FILM 0.22UF 10% 250VDC RAD |
11,454 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
SMDTC03100TA00MQ00CAP FILM 0.1UF 20% 40VAC 2824 |
9,154 |
|
Datasheet |
2824 (7260 Metric) | 0.1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
F862BP184K310ALR0LCAP FILM 0.18UF 10% 630VDC RAD |
2,200 |
|
Datasheet |
Radial | 0.18 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
B32682A2102J000CAP FILM 1000PF 5% 2KVDC RADIAL |
1,749 |
|
Datasheet |
Radial | 1000 pF | ±5% | 550V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
BFC237530223CAP FILM 0.022UF 5% 1.6KVDC RAD |
1,646 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.374" W (30.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
