Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237042103CAP FILM 10000PF 5% 250VDC RAD |
4,382 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|

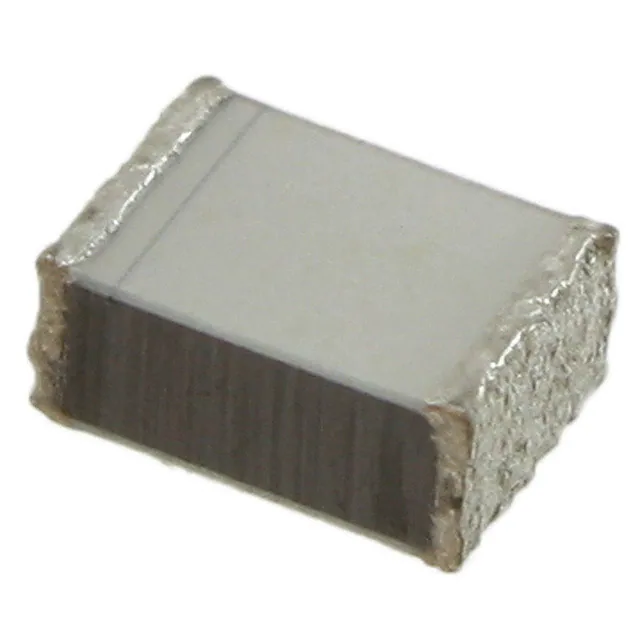

LDEIC2330JA0N00CAP FILM 0.033UF 5% 250VDC 1812 |
4,141 |
|
Datasheet |
1812 (4532 Metric) | 0.033 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32922C3683K000CAP FILM 0.068UF 10% 630VDC RAD |
2,882 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC237022123CAP FILM 0.012UF 5% 100VDC RAD |
1,977 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
F861AO224M310ACAP FILM 0.22UF 20% 630VDC RAD |
1,570 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI333000M1KCAP FILM 0.33UF 10% 560VDC RAD |
1,519 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76MN32205050JFILM, RADIAL, PULSE, DOUBLE META |
1,398 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E4334JFCAP FILM 0.33UF 5% 400VDC RADIAL |
1,065 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R75II32204040JCAP FILM 0.22UF 5% 250VDC RADIAL |
900 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413N3100DQM1KCAP FILM 0.1UF 10% 1KVDC RADIAL |
592 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
LDEDD3470KA5N00CAP FILM 0.47UF 10% 63VDC 2220 |
5,336 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
F340Y232230MFM2B0CAP FILM 0.022UF 20% 1KVDC RAD |
4,554 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
224MSR630KCAP FILM 0.22UF 10% 630VDC RAD |
4,009 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | 8.038 Ohms | -55°C ~ 125°C | Through Hole | 0.886" L x 0.453" W (22.50mm x 11.50mm) | 0.748" (19.00mm) | PC Pins | 0.787" (20.00mm) | General Purpose | - | - |
|
ECH-U1H123JB5CAP FILM 0.012UF 5% 50VDC 1210 |
2,950 |
|
Datasheet |
1210 (3225 Metric) | 0.012 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
R76UI12204030JCAP FILM 2200PF 5% 2KVDC RADIAL |
2,935 |
|
Datasheet |
Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32671P4334K000CAP FILM 0.33UF 10% 450VDC RAD |
2,482 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
B32652A3824J000CAP FILM 0.82UF 5% 250VDC RADIAL |
1,130 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
DME4S22K-FCAP FILM 0.022UF 10% 400VDC RAD |
887 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.189" W (10.30mm x 4.80mm) | 0.370" (9.40mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
ECQ-E6154JFCAP FILM 0.15UF 5% 630VDC RADIAL |
804 |
|
Datasheet |
Radial | 0.15 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
BFC237353104CAP FILM 0.1UF 10% 400VDC RADIAL |
750 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
