Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104MPR400KCAP FILM 0.1UF 10% 400VDC RADIAL |
1,949 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 1.768 Ohms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering | - | Low ESR |
|
R75QD1470Z330JCAP FILM 4700PF 5% 1KVDC RADIAL |
1,659 |
|
Datasheet |
Radial | 4700 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W155JCAP FILM 1.5UF 5% 450VDC RADIAL |
1,500 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474I268050A2KCAP FILM 0.068UF 10% 1KVDC RAD |
1,474 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-FD2J125JCAP FILM 1.2UF 5% 630VDC RADIAL |
990 |
|
Datasheet |
Radial | 1.2 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.362" W (25.30mm x 9.20mm) | 0.563" (14.30mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FD2J474JCCAP FILM 0.47UF 5% 630VDC RADIAL |
913 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.307" W (17.80mm x 7.80mm) | 0.500" (12.70mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76PF2100SE30JCAP FILM 10000PF 5% 630VDC RAD |
696 |
|
Datasheet |
Radial | 10000 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75QN31004000JCAP FILM 0.1UF 5% 1KVDC RADIAL |
523 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KN333045N0MCAP FILM 0.33UF 20% 560VDC RAD |
490 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R413I247050T0KCAP FILM 0.047UF 10% 1.5KVDC RAD |
468 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

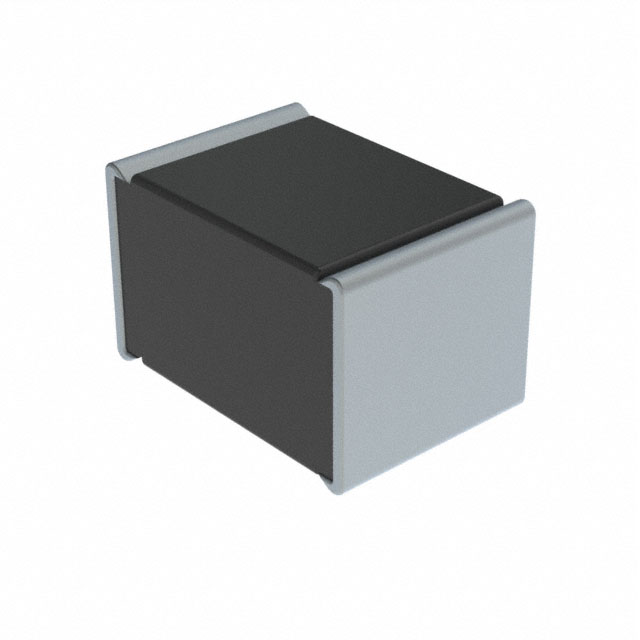

SMDTD02470KA00MP00CAP FILM 0.047UF 20% 63VAC 1812 |
2,380 |
|
Datasheet |
1812 (4532 Metric) | 0.047 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R75II3220AA40JCAP FILM 0.22UF 5% 250VDC RADIAL |
1,524 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI347000S0KCAP FILM 0.47UF 10% 560VDC RAD |
1,199 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
SMR5223J50J01L16.5CBULKCAP FILM 0.022UF 5% 50VDC RADIAL |
1,105 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
BFC237051473CAP FILM 0.047UF 10% 400VDC RAD |
1,005 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R76MI3100SE30JCAP FILM 0.1UF 5% 400VDC RADIAL |
854 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI333040P0MCAP FILM 0.33UF 20% 560VDC RAD |
374 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI368040P0KCAP FILM 0.68UF 10% 560VDC RAD |
149 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R76TN22204030JCAP FILM 0.022UF 5% 1.6KVDC RAD |
144 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
QXL2B224KTPTCAP FILM 0.22UF 10% 125VAC RAD |
136 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 125V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531" L x 0.299" W (13.50mm x 7.60mm) | - | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
