Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32332I6306J080CAP FILM 30UF 5% 450VAC RADIAL |
137 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.780" (96.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
B32320I0157K000150MFD 1100V PP 60X120 PBT 5 PIN |
137 |
|
Datasheet |
Radial, Can - 5 Lead | 150 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 2.362" Dia (60.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
B32656S7125K561CAP FILM 1.2UF 10% 1.25KVDC SCRW |
254 |
|
Datasheet |
Rectangular Box | 1.2 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.004" (25.50mm) | Snubber | - | Low ESL |
|
|
F873RU185M760ZCAP FILM POLYPROP RAD X1 |
250 |
|
Datasheet |
Radial | 1.8 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4BSPBX4100ZAJJCAP FILM 1UF 5% 1.2KVDC SCREW |
363 |
|
Datasheet |
Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|

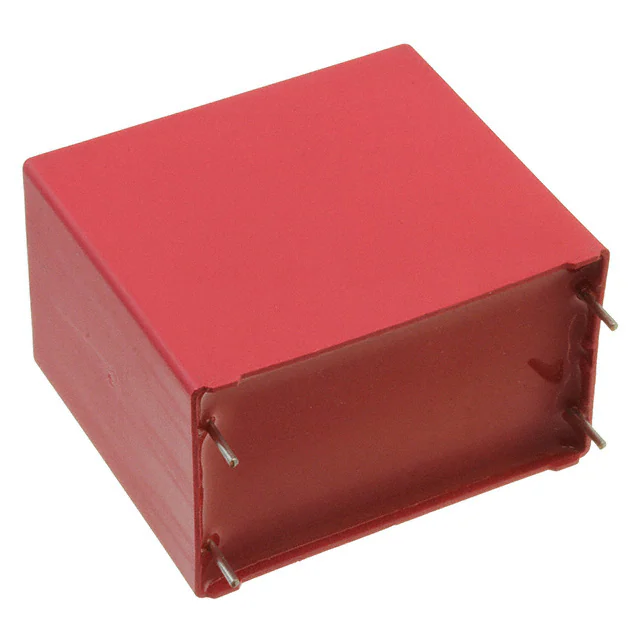

MKS4U041009FD4KSSDCAP FILM 1UF 10% 2KVDC RADIAL |
664 |
|
Datasheet |
Radial - 4 Leads | 1 µF | ±10% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.378" W (57.00mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32718H8506K000MKP DC FILTERING - 800VDC, 50UF |
401 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32676G8106K000CAP FILM 10UF 10% 875VDC RADIAL |
251 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32778G8606K000CAP FILM 60UF 800VDC RAD 4 LEAD |
4,312 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
C4AQIBW5600A3NJCAP FILM 60UF 5% 800VDC RADIAL |
168 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32656A0225J000CAP FILM 2.2UF 5% 1KVDC RADIAL |
248 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
B32776G8306K000CAP FILM 30UF 800VDC RAD 4 LEAD |
2,676 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
FFB56C0685K--CAP FILM 6.8UF 10% 900VDC RADIAL |
3,159 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|

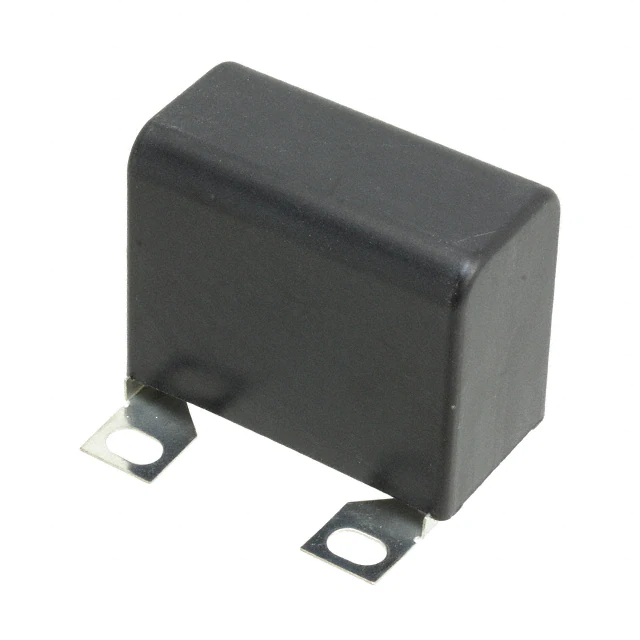

MKP386M510200YT4CAP FILM 1UF 5% 2KVDC SCREW |
138 |
|
Datasheet |
Rectangular Box | 1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.181" W (58.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
B32916A5475M000CAP FILM 4.7UF 20% 1KVDC RADIAL |
472 |
|
Datasheet |
Radial | - | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
F161ZS106K050VCAP FILM 10UF 10% 50V |
843 |
|
Datasheet |
Nonstandard SMD | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
B32526R0107K000CAP FILM 100UF 10% 63VDC RADIAL |
488 |
|
Datasheet |
Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
C4AQNEW5550M3AJCAP FILM 55UF 5% 1KVDC RADIAL |
152 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B32926A4106M000CAP FILM 10UF 20% 650VDC RADIAL |
363 |
|
Datasheet |
Radial | 10 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|

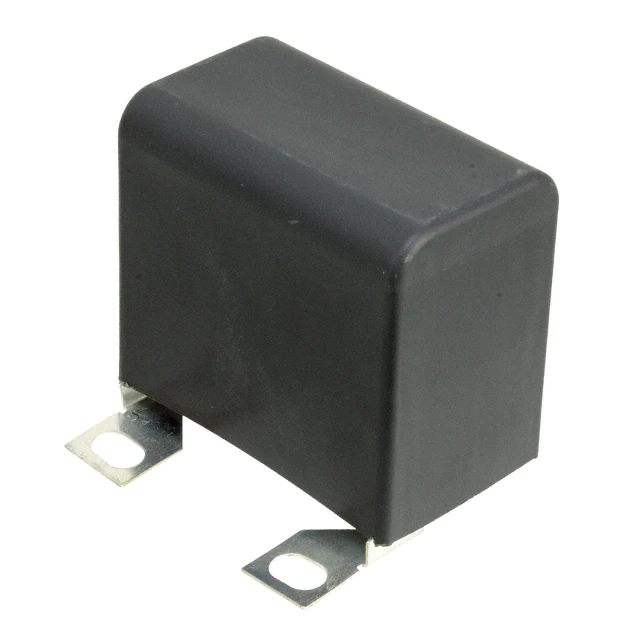

MKP386M550125YT4CAP FILM 5UF 5% 1.25KVDC SCREW |
1,088 |
|
Datasheet |
Rectangular Box | 5 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.378" W (58.00mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
