Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C20P1K-FCAP FILM 0.1UF 10% 2KVDC AXIAL |
1,816 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
R75RW412050H4JCAP FILM 1.2UF 5% 1.25KVDC RAD |
124 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MKT1813610015CAP FILM 10UF 10% 100VDC AXIAL |
188 |
|
Datasheet |
Axial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
715P22456MD3CAP FILM 0.22UF 5% 600VDC RADIAL |
870 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.831" Dia x 1.650" L (21.10mm x 41.90mm) | 1.102" (28.00mm) | PC Pins | 1.094" (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
R586R410050T0MCAP FILM 600VAC(X1) 1 UF 20% |
242 |
|
Datasheet |
Radial | 1 µF | ±20% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.311" (33.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R474W42205001KCAP FILM 2.2UF 10% 1KVDC RADIAL |
2,050 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC238350104CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
1,518 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
R60DR52205040JCAP FILM 22UF 5% 63VDC RADIAL |
1,798 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
LDEDG4470KA0N00CAP FILM 4.7UF 10% 63VDC 5040 |
1,650 |
|
Datasheet |
5040 (127102 Metric) | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
R474W422000A1MCAP FILM 2.2UF 20% 1KVDC RADIAL |
1,008 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
B32656J1224K000CAP FILM 0.22UF 10% 1.6KVDC RAD |
794 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32776T0505K000CAP FILM 5UF 10% 1.1KVDC RADIAL |
1,159 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 23.6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32355C4305J015CAP FILM 3UF 5% 400VAC RADIAL |
657 |
|
Datasheet |
Radial, Can | 3 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 100°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.559" (65.00mm) | Wire Leads | - | Motor Run | - | High Temperature |
|
|
FKP1Y024707H00MSSDCAP FILM 0.047UF 20% 6KVDC RAD |
290 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C878AF24400TF1JCAP FILM 4UF 5% 470VAC RADIAL |
171 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
735P205X9400LCAP FILM 2UF 10% 400VDC AXIAL |
673 |
|
Datasheet |
Axial | 2 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 105°C | Through Hole | 0.895" Dia x 1.750" L (22.73mm x 44.45mm) | - | PC Pins | - | High Frequency, Switching | - | Low ESR |
|
|
940C20P15K-FCAP FILM 0.15UF 10% 2KVDC AXIAL |
3,326 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.768" Dia x 1.811" L (19.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
MKP1848C61080JK2CAP FILM 10UF 5% 800VDC RADIAL |
4,407 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
940C12P22K-FCAP FILM 0.22UF 1.2KVDC AXIAL |
112 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.846" Dia x 1.339" L (21.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

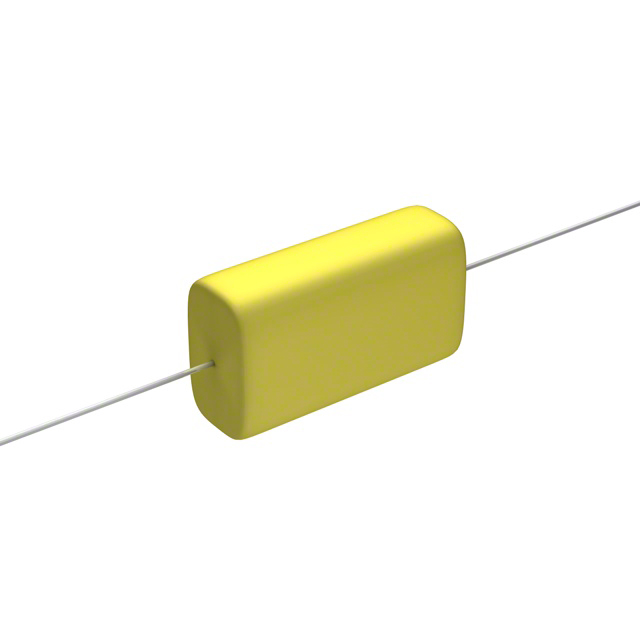

MMP4W2P2K-FCAP FILM 2.2UF 10% 400VDC AXIAL |
628 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.906" W, 0.551" T x 1.575" L (23.00mm, 14.00mm x 40.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
