Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP386M515200YT4CAP FILM 1.5UF 5% 2KVDC SCREW |
441 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.378" W (58.00mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
105PPA202KCAP FILM 1UF 10% 2KVDC AXIAL |
196 |
|
Datasheet |
Axial | 1 µF | ±10% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 85°C | Through Hole | 1.535" Dia x 2.165" L (39.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
205PPA122KCAP FILM 2UF 10% 1.2KVDC AXIAL |
175 |
|
Datasheet |
Axial | 2 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 85°C | Through Hole | 1.535" Dia x 2.165" L (39.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C276CCF5500LH2JCAP FILM 50UF 5% 470VAC RADIAL |
218 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 3.819" (97.00mm) | Wire Leads | - | Motor Run | - | - |
|
C878BG35500SA0JCAP FILM 50UF 5% 470VAC RADIAL |
241 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
B32776E4606J000CAP FILM 60UF 5% 450VDC RADIAL |
191 |
|
Datasheet |
Radial | 60 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
206PHC250KCAP FILM 20UF 10% 250VDC AXIAL |
155 |
|
Datasheet |
Axial | 20 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.142" Dia x 1.811" L (29.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
RA6106K100-FACAPACITOR |
1,209 |
|
Datasheet |
Radial | 10 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.260" W (16.50mm x 6.60mm) | 0.461" (11.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
B32361A2506J050CAP FILM 50UF 5% 250VAC RADIAL |
117 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 2.756" (70.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B32361A4106J080CAP FILM 10UF 5% 480VAC RADIAL |
359 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 2.835" (72.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C870CG36100AA0JCAP FILM 100UF 5% 470VAC RADIAL |
446 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.165" Dia (55.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MKP1848C65010JY5CAP FILM 50UF 5% 1KVDC RADIAL |
4,216 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
B32361A4506J080CAP FILM 50UF 5% 480VAC RADIAL |
157 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
C4AQLEW6210A3BKCAP FILM 210UF 10% 500VDC RADIAL |
157 |
|
Datasheet |
Radial - 4 Leads | 210 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1848C71050JY5CAP FILM 100UF 5% 500VDC RADIAL |
230 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
475K100CS4GCAP FILM 4.7UF 10% 100VDC 6SMD |
236 |
|
Datasheet |
6-SMD, Gull Wing | 4.7 µF | ±10% | - | 100V | Polymer, Metallized | 6 mOhms | -55°C ~ 125°C | Surface Mount | 0.524" L x 0.500" W (13.30mm x 12.70mm) | 0.252" (6.40mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

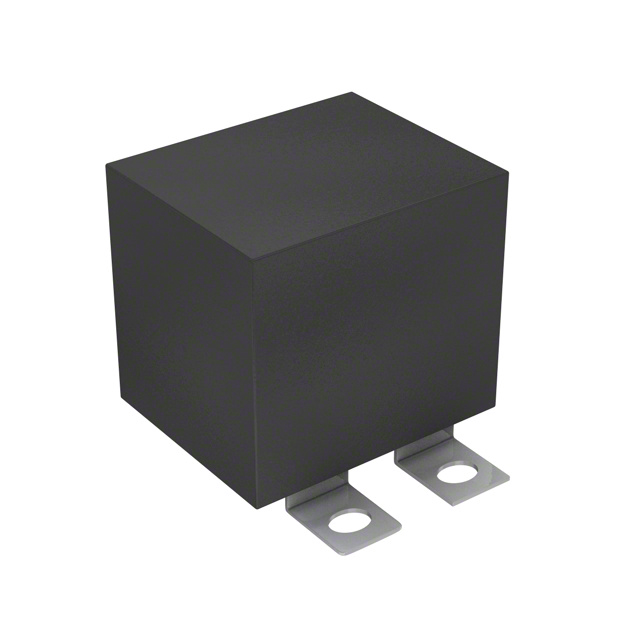

SCD205K122A3Z25-FCAP FILM 2UF 10% 1.2KVDC SCREW |
184 |
|
Datasheet |
Rectangular Box | 2 µF | ±10% | 580V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 85°C | Chassis Mount | 2.224" L x 1.827" W (56.50mm x 46.40mm) | 1.976" (50.20mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
SCRN222R-FCAP FILM 5UF 10% 600VPK RADIAL |
402 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 600Vpk | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 4.310" (109.47mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FFV34E0107K--CAP FILM 100UF 10% 100VDC RADIAL |
164 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±10% | 60V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
C44BXFP4100ZB0JCAP FILM 1UF 5% 2.4KVDC RADIAL |
98 |
|
Datasheet |
Radial, Can | 1 µF | ±5% | 1000V (1kV) | 2400V (2.4kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.016" (102.00mm) | Threaded, Male | 0.878" (22.30mm) | Snubber | - | - |
