Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

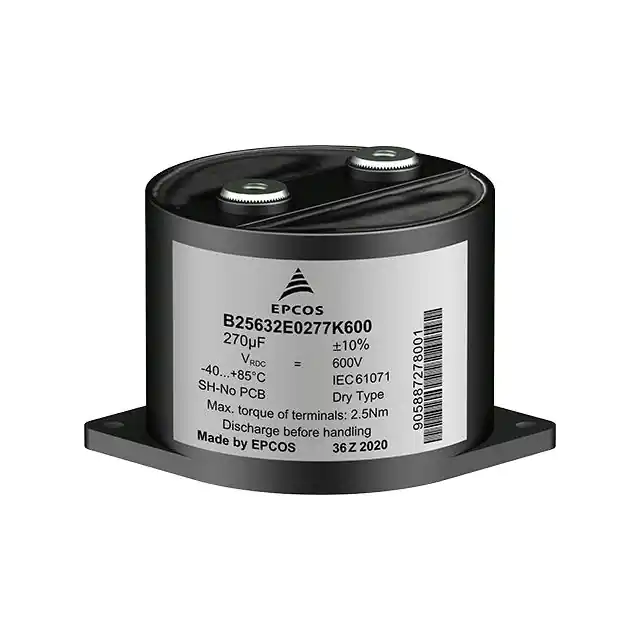

B25632E1117K100POWER ELECTRONIC CAPACITORS (PEC |
48 |
|
Datasheet |
Radial, Can | 110 µF | ±10% | - | 1100V (1.1kV) | - | 1.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.598" (66.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering; Snubber | - | - |
|

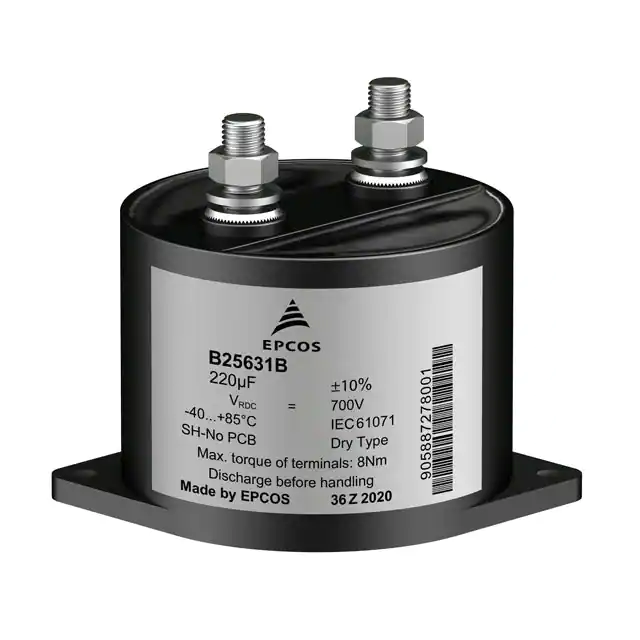

B25631B0307K600CAP FILM 300UF 10% 600V RADIAL |
33 |
|
Datasheet |
Radial, Can | 300 µF | ±10% | - | 600V | - | 1.2 mOhms | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
106K050CS4CAP FILM 10UF 10% 50VDC 10DIP |
46 |
|
Datasheet |
10-DIP | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Through Hole | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.319" (8.10mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

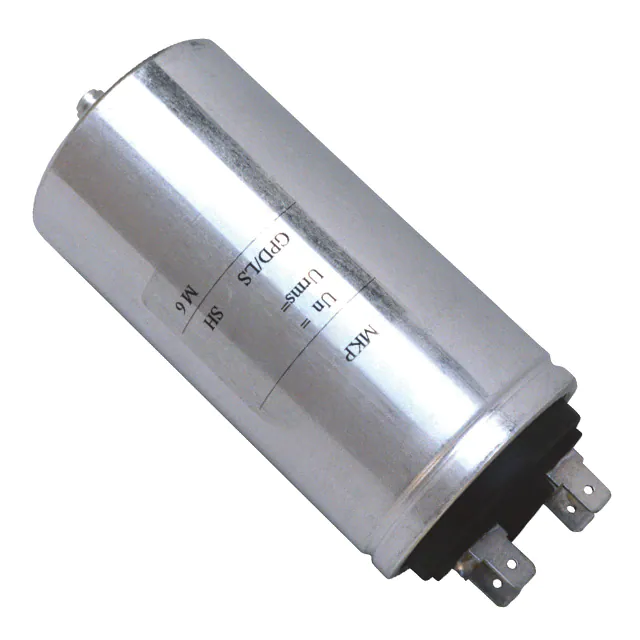

C44AFGP6130ZA0JCAP FILM 130UF 5% 400VDC RADIAL |
70 |
|
Datasheet |
Radial, Can | 130 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
MKT1820712255CAP FILM 120UF 10% 250VDC RADIAL |
80 |
|
Datasheet |
Radial | 120 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
B32362A4706J080CAP FILM 70UF 5% 480VAC RADIAL |
152 |
|
Datasheet |
Radial, Can | 70 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.787" (147.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B32362B2207J050CAP FILM 200UF 5% 250VAC RADIAL |
75 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.685" (119.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
C44AFGP6200ZE0JCAP FILM 200UF 5% 400VDC RADIAL |
102 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|

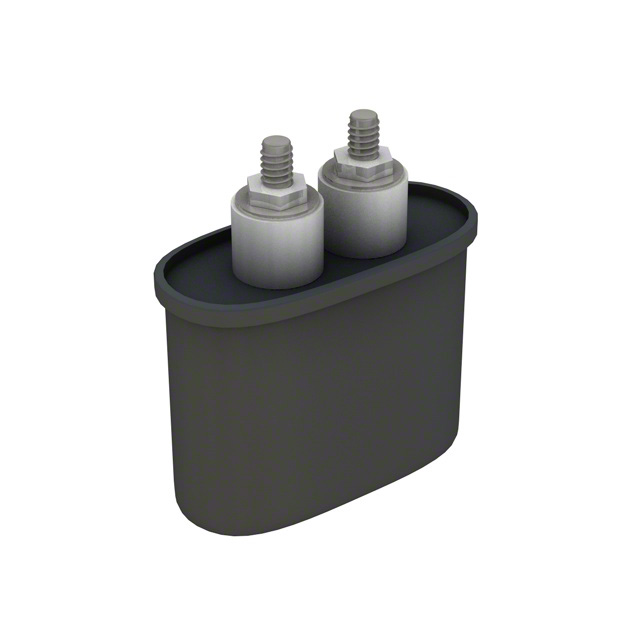

T20P5NR-FCAP FILM 0.5UF 10% 2KVDC RADIAL |
126 |
|
Datasheet |
Radial, Can | 0.5 µF | ±10% | - | 2000V (2kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
|
C44ASGP5100ZA0JCAP FILM 10UF 5% 1.5KVDC RADIAL |
64 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 630V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.756" Dia (70.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
SCRN234R-FCAP FILM 2UF 10% 1KVPK RADIAL |
81 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.190" (81.03mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C44UVGT5900M81KCAP FILM 90UF 10% 1.8KVDC RADIAL |
100 |
|
Datasheet |
Radial, Can | 90 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.055" (103.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B32362A2307J050CAP FILM 300UF 5% 250VAC RADIAL |
142 |
|
Datasheet |
Radial, Can | 300 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.756" (197.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
106K050CS4GCAP FILM 10UF 10% 50VDC 10SMD |
49 |
|
Datasheet |
10-SMD, Gull Wing | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Surface Mount | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.319" (8.10mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
.JPG)
|
SFD66T20K391B-FCAP FILM 20UF 10% 660VAC RADIAL |
83 |
|
Datasheet |
Radial, Can | 20 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
C44UUGT6320M86KCAP FILM 320UF 10% 1.3KVDC RAD |
40 |
|
Datasheet |
Radial, Can | 320 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
.jpg)
|
944U161K801ABMCAP FILM 160UF 10% 800VDC RADIAL |
23 |
|
Datasheet |
Radial, Can | 160 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
C4DENPQ5680A8TKCAP FILM 68UF 10% 1KVDC RADIAL |
31 |
|
Datasheet |
Radial, Can | 68 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
947D271K112AEGSNCAP FILM 270UF 10% 1.1KVDC RAD |
170 |
|
Datasheet |
Radial, Can | 270 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.976" (101.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|

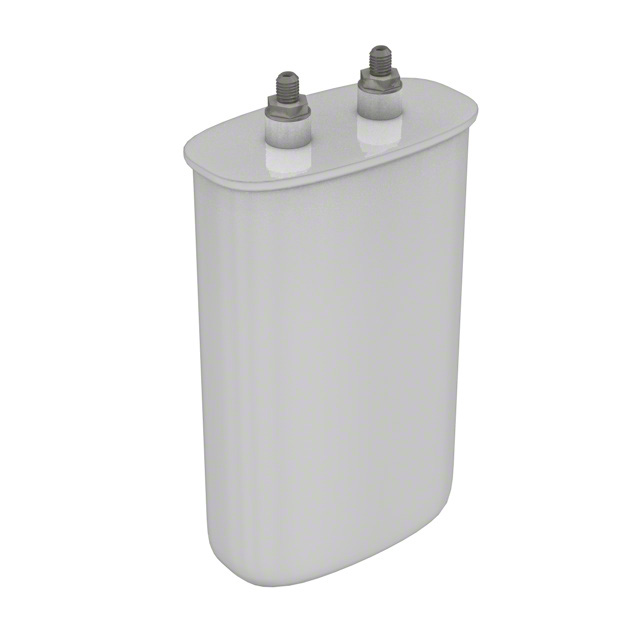

SCRN253R-FCAP FILM 5UF 10% 2KVPK RADIAL |
58 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 5.810" (147.57mm) | Threaded, Male | 1.380" (35.05mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
