Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
944U101K122ACMCAP FILM 100UF 10% 1.2KVDC RAD |
1,371 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

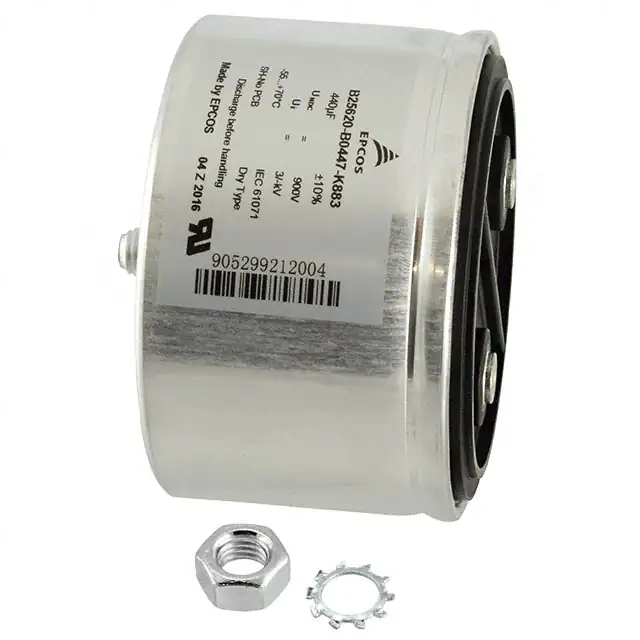

B25620B0567K703CAP FILM 560UF 10% 700VDC RADIAL |
41 |
|
Datasheet |
Radial, Can | 560 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 3.071" (78.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
Z26S5892MT5A4CAP FILM 92UF -1% +5% 580VAC RAD |
40 |
|
Datasheet |
Radial, Can | 92 µF | -1%, +5% | 580V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500" Dia (63.50mm) | 7.500" (190.50mm) | Threaded, Male | - | General Purpose | - | Long Life |
|
MKT1820733015CAP FILM 330UF 10% 100VDC RADIAL |
36 |
|
Datasheet |
Radial | 330 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
944U700K142ACMCAP FILM 70UF 10% 1.4KVDC RADIAL |
126 |
|
Datasheet |
Radial, Can | 70 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
B25690A0128K903CAP FILM 1200UF 10% 900V RADIAL |
38 |
|
Datasheet |
Radial, Can | 1200 µF | ±10% | - | 900V | - | 1.5 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 5.551" (141.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
947D331K102BDMSNCAP FILM 330UF 10% 1KVDC RADIAL |
131 |
|
Datasheet |
Radial, Can | 330 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 3.465" (88.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
FFVI6A0227KJECAP FILM 220UF 10% 700VDC RADIAL |
34 |
|
Datasheet |
Radial, Can | 220 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947D501K112BJMSNCAP FILM 500UF 10% 1.1KVDC RAD |
38 |
|
Datasheet |
Radial, Can | 500 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
B25667C4467A375CAP FILM 154UF -5% +10% 440VAC |
48 |
|
Datasheet |
Radial, Can | 154 µF | -5%, +10% | 440V | - | Polypropylene (PP) | - | -40°C ~ 85°C | Chassis, Stud Mount | 5.354" Dia (136.00mm) | 7.874" (200.00mm) | Terminal Block | - | Power Factor Correction (PFC) | - | - |
|
FFVS6U0656K--CAP FILM 65UF 10% 1.2KVDC RADIAL |
213 |
|
Datasheet |
Radial, Can | 65 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947D601K901DCRSNCAP FILM 600UF 10% 900VDC RADIAL |
95 |
|
Datasheet |
Radial, Can | 600 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 0.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
B25690A2367K003CAP FILM 360UF 10% 2KV RADIAL |
39 |
|
Datasheet |
Radial, Can | 360 µF | ±10% | - | 2000V (2kV) | - | 1.4 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 9.055" (230.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
B25680B2807K003CAP FILM 800UF 10% 2KV RADIAL |
32 |
|
Datasheet |
Radial, Can | 800 µF | ±10% | - | 2000V (2kV) | - | 1.1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 7.047" (179.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
947D102K901CJRSNCAP FILM 1000UF 10% 900VDC RAD |
39 |
|
Datasheet |
Radial, Can | 1000 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 1.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937" Dia (100.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
B25620B1158K103CAP FILM 1500UF 10% 1.1KVDC RAD |
212 |
|
Datasheet |
Radial, Can | 1500 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 11.063" (281.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
FFLI6B3007K--CAP FILM 3000UF 10% 800VDC RAD |
37 |
|
Datasheet |
Radial, Can | 3000 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 95°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 13.465" (342.00mm) | Threaded, Male | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
R75UI118050H4JCAP FILM 1800PF 5% 2KVDC RADIAL |
2,071 |
|
Datasheet |
Radial | 1800 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 442.1 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R82EC2680SH60JCAP FILM 0.068UF 5% 100VDC RAD |
12,204 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32529C0333K289CAP FILM 0.033UF 10% 63VDC RAD |
54,318 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
