Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C276CCF5160LG0JCAP FILM 16UF 5% 470VAC RADIAL |
171 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
226MWR100KCAP FILM 22UF 10% 100VDC AXIAL |
1,541 |
|
Datasheet |
Axial | 22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.866" Dia x 1.811" L (22.00mm x 46.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
B32036A4105M000CAP FILM 1UF 20% 1KVDC RADIAL |
155 |
|
Datasheet |
Radial | 1 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
940C30P1K-FCAP FILM 0.1UF 10% 3KVDC AXIAL |
1,025 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 0.886" Dia x 1.811" L (22.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FFB26C0275K--CAP FILM 2.7UF 10% 900VDC RADIAL |
260 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.575" W (31.10mm x 14.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
PHE844RF7100MR06L2CAP FILM 1UF 20% 1KVDC RADIAL |
958 |
|
Datasheet |
Radial | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
C4CAYUD3150AA1JCAP FILM 0.15UF 5% 3KVDC AXIAL |
334 |
|
Datasheet |
Axial | 0.15 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" Dia x 1.732" L (32.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

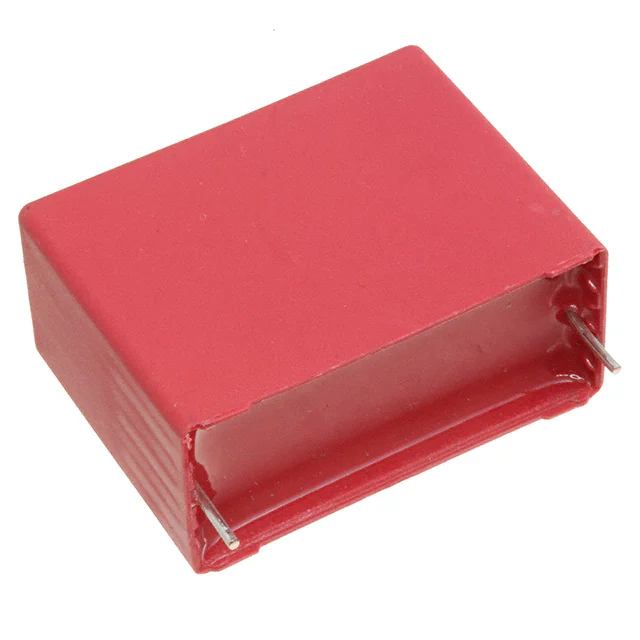

MKS4F052207F00KSSDCAP FILM 22UF 10% 250VDC RADIAL |
400 |
|
Datasheet |
Radial | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C878BF35160SA0JCAP FILM 16UF 5% 470VAC RADIAL |
226 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4GAMUD4200AA1JCAP FILM 2UF 5% 850VDC AXIAL |
523 |
|
Datasheet |
Axial | 2 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.122" Dia x 1.732" L (28.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
B32524R3336K000CAP FILM 33UF 10% 250VDC RADIAL |
438 |
|
Datasheet |
Radial | 33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

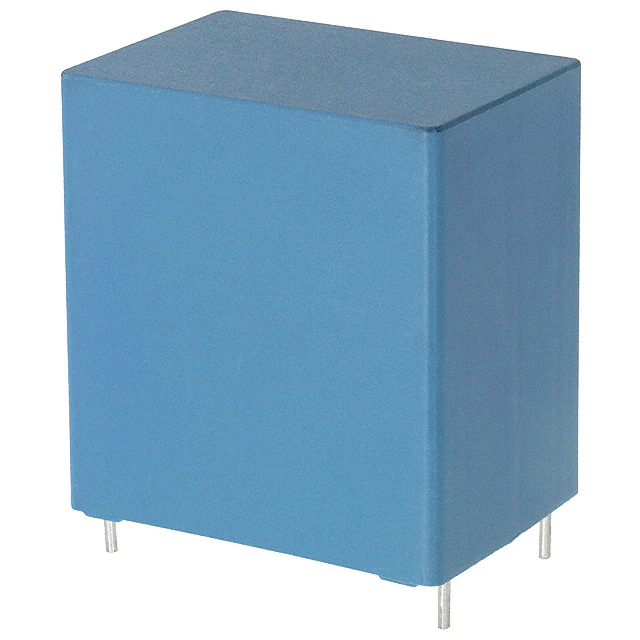

B32776G0126J000CAP FILM 12UF 1.1KVDC RAD 4 LEAD |
1,009 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
940C20P22K-FCAP FILM 0.22UF 10% 2KVDC AXIAL |
259 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.866" Dia x 1.811" L (22.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32776T4166K000CAP FILM 16UF 10% 450VDC RADIAL |
557 |
|
Datasheet |
Radial | 16 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32926C3106K000CAP FILM 10UF 10% 630VDC RADIAL |
384 |
|
Datasheet |
Radial | 10 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
C878BF34800SA0JCAP FILM 8UF 5% 470VAC RADIAL |
283 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
B32774D4226K000CAP FILM 22UF 10% 450VDC RADIAL |
5,166 |
|
Datasheet |
Radial | 22 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
EZP-E50306MTACAP FILM 30UF 10% 500VDC RADIAL |
348 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
C4AQCBW5400A3LJCAP FILM 40UF 5% 650VDC RADIAL |
228 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

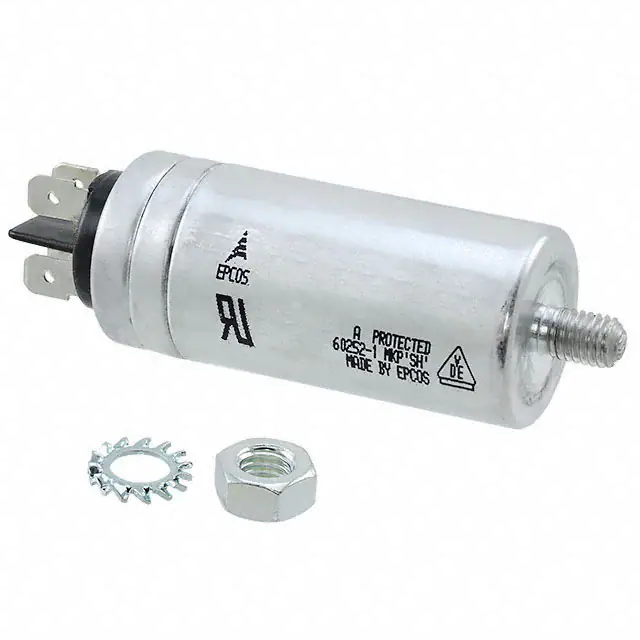

B32332I6106J080CAP FILM 10UF 5% 450VAC RADIAL |
199 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.795" (71.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
