EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFM21HC102R1H3DFILTER LC HIGH FREQ 1000PF 0805 |
6,809 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 1 A | C = 1000pF | No | -55°C ~ 125°C | - | 50V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFM21HC221R1H3DFILTER LC HIGH FREQ 220PF 0805 |
4,517 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 700 mA | C = 220pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
USBUF01W6FILTER RC(PI) 33 OHM/47PF SMD |
11,489 |
|
- |
USBUF | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | - | -28dB @ 900MHz | 33 | - | R = 33Ohms, C = 47pF | Yes | -40°C ~ 125°C | USB | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|
|
NUF2221W1T2GFILTER RC(PI) 22 OHM/42PF SMD |
27,385 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 3 | - | - | 22 | - | R = 22Ohms, C = 42pF (Total) | Yes | -55°C ~ 125°C | USB | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|
NFA18SL307V1A45LFILTER LC 300MHZ SMD |
13,538 |
|
- |
EMIFIL®, NFA18 | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 300MHz (Cutoff) | 20dB @ 900MHz | - | 100 mA | - | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
NUF4001MUT2GFILTER RC(PI) 100 OHM/13PF SMD |
10,531 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 150MHz (Cutoff) | -25dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 13pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.022" (0.55mm) |
|
MEM2012S35R0T001FILTER LC(T) 35MHZ SMD |
9,612 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 35MHz (Cutoff) | 30dB @ 90MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
MEM1608P101RFILTER LC(PI) 100MHZ SMD |
8,969 |
|
- |
MEM | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | 100MHz (Cutoff) | 20dB @ 400MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
MEM2012S50R0T001FILTER LC(T) 50MHZ SMD |
8,743 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (T-Type) | 1 | 50MHz (Cutoff) | 30dB @ 200MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
MEM2012S201RT001FILTER LC(T) 200MHZ SMD |
7,862 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 200MHz (Cutoff) | 30dB @ 530MHz ~ 2.5GHz | - | 250 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
EMIF04-1005M8FILTER RC(PI) 100 OHM/45PF SMD |
13,128 |
|
- |
IPAD™ | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | - | -34dB @ 900MHz ~ 1.8GHz | 100 | 10 mA | R = 100Ohms, C = 45pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.026" (0.65mm) |
|
EMIF01-10005W5FILTER RC(PI) 100 OHM/50PF SMD |
5,460 |
|
- |
EMIF | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | - | - | 100 | - | R = 100Ohms, C = 50pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|
NUF6401MNT1GFILTER RC(PI) 100 OHM/17PF SMD |
8,570 |
|
- |
- | 12-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 110MHz (Cutoff) | -30dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -45°C ~ 105°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.039" (1.00mm) |
|
DSS1NB32A222Q91AFILTER LC(T) 2200PF TH |
53,204 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 2200pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
B72862F1050S160FILTER LC 270PF 10MHZ ESD SMD |
5,161 |
|
- |
- | 0504 (1410 Metric), Array, 6 PC Pad | Tape & Reel (TR) | Active | Low Pass | 4th | LC | 2 | 10MHz (Cutoff) | 60dB @ 900MHz | 0.2 | 1 A | C = 270pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.054" L x 0.039" W (1.37mm x 1.00mm) | 0.026" (0.65mm) |
, Array, 10 PC Pad.jpg)
|
MEA2010L101RFILTER LC 100MHZ SMD |
5,061 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 100MHz (Cutoff) | 20dB @ 800MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
|
TPD6F003DQDRFILTER RC(PI) 100 OHM/8.5PF SMD |
5,383 |
|
- |
TPD | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 200MHz (Cutoff) | 25dB @ 1GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.031" (0.79mm) |
|
MEM2012V241RFILTER LC(PI) 240MHZ SMD |
3,659 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 1 | 240MHz (Cutoff) | 20dB @ 450MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

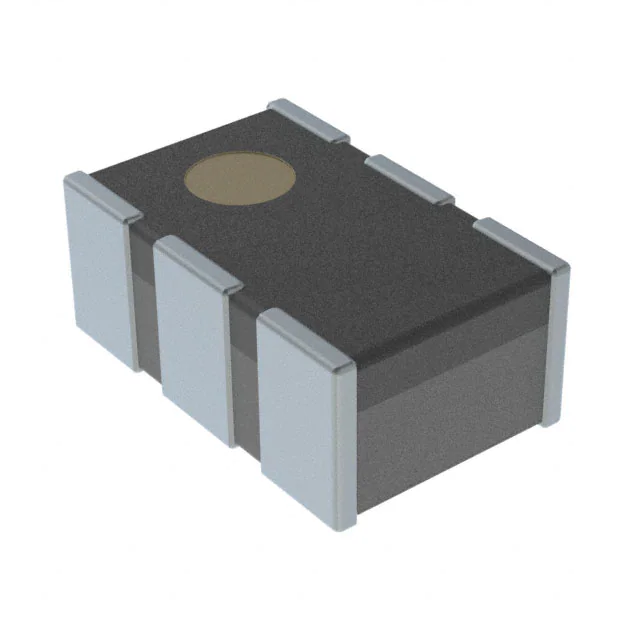

MEM2012SC151T001FILTER LC(T) 150PF SMD |
15,099 |
|
- |
MEM | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (T-Type) | 1 | - | - | 0.15 | 1 A | C = 150pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
IP4252CZ8-4-TTL,13FILTER RC(PI) 40 OHM/12PF SMD |
12,000 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | Low Pass | 2nd | RC (Pi) | 4 | - | 12dB @ 800MHz ~ 3GHz | 40 | - | R = 40Ohms, C = 12pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.022" (0.55mm) |
