EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFE31PT220R1E9LFILTER LC(T) 22PF SMD |
15,328 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 22pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
|
NFE31PT471F1E9LFILTER LC(T) 470PF SMD |
6,834 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 470pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
|
NFE31PT152Z1E9LFILTER LC(T) 1500PF SMD |
2,176 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 1500pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
EMIF08-1005M16FILTER RC(PI) 100 OHM/45PF SMD |
1,459 |
|
- |
EMIF | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 100MHz (Cutoff) | -34dB @ 900MHz ~ 1.8GHz | 100 | 10 mA | R = 100Ohms, C = 45pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.059" W (3.30mm x 1.50mm) | 0.024" (0.60mm) |
|
|
NFE31PT222Z1E9LFILTER LC(T) 2200PF SMD |
52,516 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 2200pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
DSS1NB32A103Q91AFILTER LC(T) 0.01UF TH |
32,627 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 10000pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
 Exposed Pad.jpg)
|
NUF8402MNT4GFILTER RC(PI) 100 OHM/17PF SMD |
3,951 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 105MHz (Cutoff) | -35dB @ 800MHz ~ 2.2GHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
, Array, 10 PC Pad.jpg)
|
MEA2010L50R0T001FILTER LC 50MHZ SMD |
27,906 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 50MHz (Cutoff) | 20dB @ 500MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
|

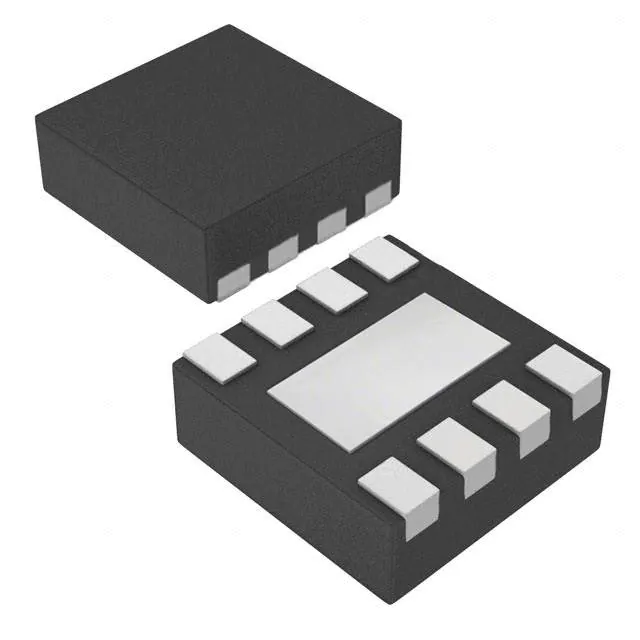

TPD4F003DQDRFILTER RC(PI) 100 OHM/8.5PF SMD |
13,570 |
|
- |
TPD | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 200MHz (Cutoff) | 25dB @ 1GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.031" (0.79mm) |
|
NFE61PT681B1H9LFILTER LC(T) 680PF SMD |
92,342 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 680pF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
|
NFE61PT102E1H9LFILTER LC(T) 1000PF SMD |
33,443 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 1000pF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
|
TPD3F303DQDRFILTER RC(PI) ESD SMD |
14,154 |
|
- |
TPD | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 3 | 294MHz, 308MHz (Cutoff) | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.031" (0.79mm) |
|
TPD3F303DPVRFILTER RC(PI) ESD SMD |
19,507 |
|
- |
TPD | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 3 | 294MHz, 308MHz (Cutoff) | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.026" (0.65mm) |
|
NFE31ZT222Z1E9LFILTER LC(T) |
1,492 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 6 A | C = 2200pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
NFL18ZT207H1A3DEMI FILTER LC-CIRCUIT 0.1A 10VDC |
58,050 |
|
- |
- | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 200MHz (Cutoff) | - | - | 100 mA | L = 110nH, C = 22pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount, MLCC | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
NFL18ZT507H1A3DEMI SUPPRESSION FILTER MONOLITHI |
7,542 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 500MHz (Cutoff) | - | - | 100 mA | L = 42nH, C = 10pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
NFL18ZT506H1A3DEMI SUPPRESSION FILTER MONOLITHI |
6,089 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 50MHz (Cutoff) | - | - | 75 mA | L = 350nH, C = 110pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
NFE61PT472C1H9LFILTER LC(T) 4700PF SMD |
44,651 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 4700pF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
ECLAMP2465T.TCTFILTER RC(PI) ESD SMD |
8,223 |
|
- |
EClamp™ | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 1st | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.017" (0.43mm) |
|
|
EMIF06-MSD02N16FILTER RC(PI) 45 OHM/20PF SMD |
30,825 |
|
- |
IPAD™ | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | - | 45 | - | R = 45Ohms, C = 20pF (Total) | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.138" L x 0.047" W (3.50mm x 1.20mm) | 0.022" (0.55mm) |
