EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECLAMP2455P.TCTFILTER RC(PI) ESD SMD |
8,812 |
|
- |
EMIClamp® | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.026" (0.65mm) |
|
PMR209MC6100M047R30FILTER RC 47 OHM/0.1UF TH |
146 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|

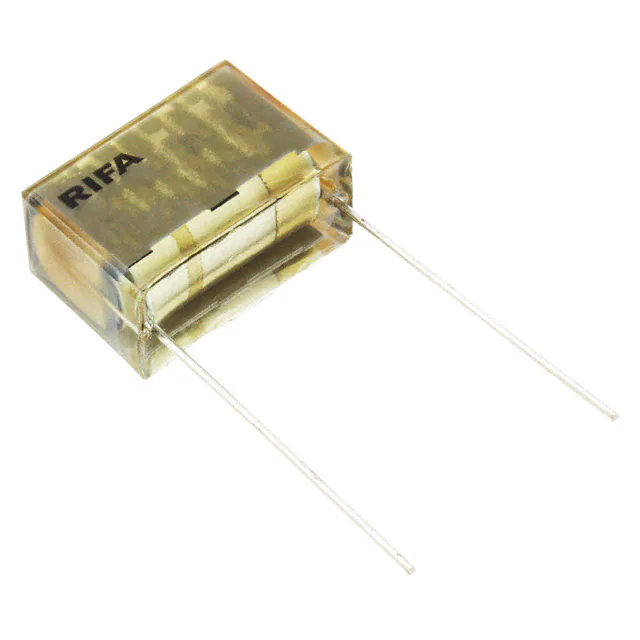

PMR209MC6100M470R30FILTER RC 470 OHM/0.1UF TH |
836 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 470 | - | R = 470Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2410PQTCTFILTER RC(PI) 45 OHM/15PF SMD |
7,410 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | - | 45 | - | R = 45Ohms, C = 15pF | Yes | -40°C ~ 125°C | - | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
PMR209MC6220M100R30FILTER RC 100 OHM/0.22UF TH |
611 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR209MB5470M047R30FILTER RC 47 OHM/0.047UF TH |
3,244 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
PMR209MC6220M022R30FILTER RC 22 OHM/0.22UF TH |
863 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2357NQTLTFILTER LC(PI) 100 OHM/12PF SMD |
15,094 |
|
- |
EMIClamp® | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | RC (Pi) | 6 | - | 30dB @ 1.8GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 125°C | - | - | Automotive | AEC-Q100 | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.028" (0.70mm) |
|
4700-056MLFFILTER LC(PI) 0.1UH/5000PF SMD |
3,673 |
|
- |
4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | L = 0.1µH, C = 5000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.085" Dia x 0.315" L (2.16mm x 8.00mm) | - |
|
|
PMR209MC6220M047R30FILTER RC 47 OHM/0.22UF TH |
846 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR209MC6100M022R30FILTER RC 22 OHM/0.1UF TH |
923 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P409CE104M275AH220FILTER RC 22 OHM/0.1UF TH |
156 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR210MB5220M100R30FILTER RC 100 OHM/0.022UF TH |
2,621 |
|
- |
PMR210 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.022µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
PMR209MB5470M100R30FILTER RC 100 OHM/0.047UF TH |
1,151 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
,-3-PC-Pad.jpg)
|
SBSPP1000470MCTFILTER LC(PI) 47PF SMD |
2,820 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 4dB @ 100MHz | - | 1 A | C = 47pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000471MCTFILTER LC(PI) 470PF SMD |
6,168 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 25dB @ 100MHz | - | 1 A | C = 470pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
BNX012H01FILTER LC TH |
384 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -55°C ~ 125°C | - | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
|
BNX027H01LFILTER LC 22UF SMD |
684 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 40kHz ~ 1GHz | 0.00043 | 20 A | C = 22µF | No | -55°C ~ 125°C | - | 16V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
254M06QD100FILTER RC 100 OHM/0.25UF TH |
5,386 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | - | - | - | 100 | - | R = 100Ohms, C = 0.25µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.449" L x 0.417" W (36.80mm x 10.60mm) | 0.748" (19.00mm) |
,-3-PC-Pad.jpg)
|
SBSGP5000472MXTFILTER LC(PI) 4700PF SMD |
2,171 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 4700pF | No | - | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
