EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-3-PC-Pad.jpg)
|
SBSGP5000473MXTFILTER LC(PI) 0.047UF SMD |
3,186 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.047µF | No | - | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
|
|
SBSGP1000154MXTFILTER LC(PI) 0.15UF SMD |
1,828 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.15µF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
|
|
SBSGP5000102MXTSURFACE MOUNT C AND PI FILTER |
1,725 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 1000pF | No | -55°C ~ 125°C | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) |
|
|
SBSGP5000223MXTSURFACE MOUNT C AND PI FILTER |
1,602 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.022µF | No | -55°C ~ 125°C | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) |
|
SBSMP5000683MXTSURFACE MOUNT C AND PI FILTER |
1,793 |
|
- |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 44dB @ 100MHz | - | 20 A | C = 0.068µF | No | -55°C ~ 125°C | General Purpose | 500V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) |
|
105M02QB47FILTER RC 47 OHM/1.0UF TH |
638 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 1µF | No | -55°C ~ 85°C | General Purpose | 200V | - | - | Through Hole | 1.449" L x 0.390" W (36.80mm x 9.90mm) | 0.657" (16.70mm) |
|
104M06QC100FILTER RC 100 OHM/0.1UF TH |
4,476 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.079" L x 0.390" W (27.40mm x 9.90mm) | 0.657" (16.70mm) |
|
504M02QA100FILTER RC 100 OHM/0.50UF TH |
2,002 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.5µF | No | -55°C ~ 85°C | General Purpose | 200V | - | - | Through Hole | 1.079" L x 0.390" W (27.40mm x 9.90mm) | 0.642" (16.30mm) |
,-3-PC-Pad.jpg)
|

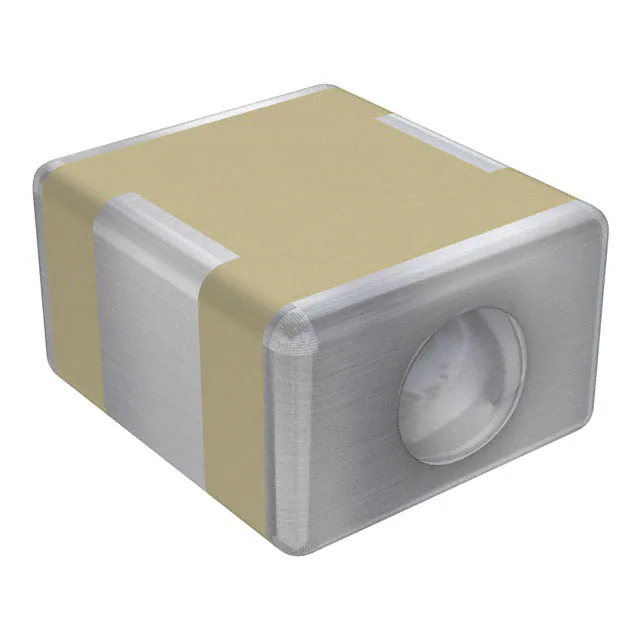

SBSMC0500474MXTSURFACE MOUNT C AND PI FILTER |
2,498 |
|
- |
SBSMC | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 1st | - | 1 | - | 43dB @ 100MHz | - | 20 A | C = 470nF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) |
|

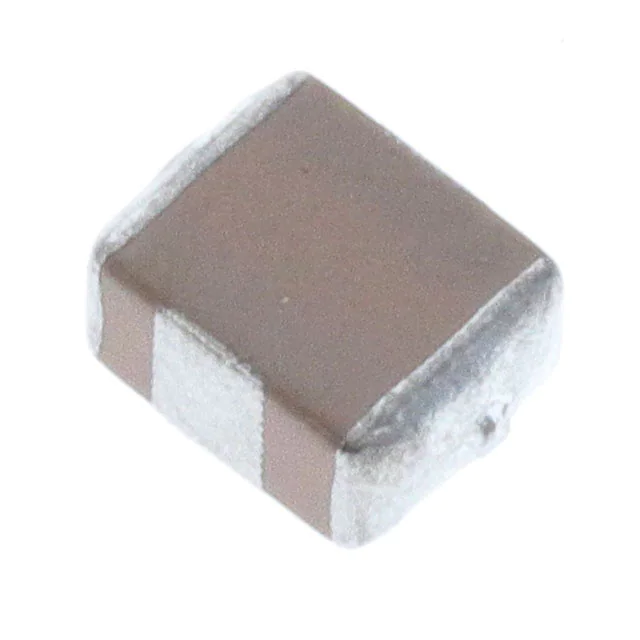

SBSMP0500474MXTSURFACE MOUNT C AND PI FILTER |
5,637 |
|
- |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 44dB @ 100MHz | - | 20 A | C = 0.47µF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) |
|
SBSMP1000224MXTSURFACE MOUNT C AND PI FILTER |
1,794 |
|
- |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 44dB @ 100MHz | - | 10 A | C = 0.22µF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) |
|
|
SBSMP1000334MXTFILTER LC(PI) 0.33UF SMD |
1,688 |
|
- |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 44dB @ 100MHz | - | 10 A | C = 0.33µF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.130" (3.30mm) |
|
SNUB0000FILTER RC 47 OHM/0.1UF TH |
161 |
|
- |
SNUB | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | - | General Purpose | 250V | - | - | Through Hole | - | - |
|
|
104M06QC150FILTER RC 150 OHM/0.1UF TH |
1,184 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.079" L x 0.390" W (27.40mm x 9.90mm) | 0.657" (16.70mm) |
|
4206-001LFFILTER LC(PI) 3000PF CHASSIS |
990 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) | - |
|

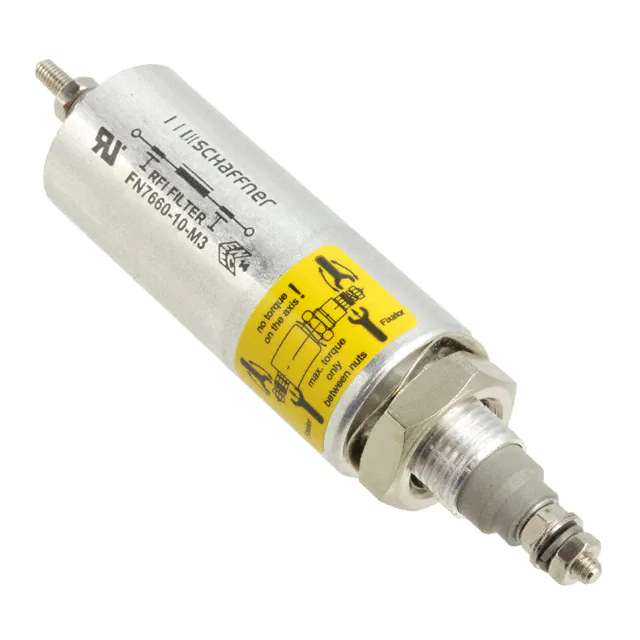

FN7660-10-M3FILTER LC(PI) 58NH/0.01UF BOLT |
133 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00106 | 10 A | L = 58nH, C = 10000pF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 2.402" L (20.00mm x 61.00mm) | - |
|
FN7611-10-M3FILTER LC(PI) 70NH/0.01UH BOLT |
80 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.0012 | 10 A | L = 70nH, C = 10000pF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.787" Dia x 2.717" L (20.00mm x 69.00mm) | - |
|
IP4256CZ5-W,115FILTER RC(PI) 100 OHM/19PF SMD |
1,120 |
|
- |
- | SOT-665 | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | - | 20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 19pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
|
NFM21HC224R1A3DFILTER LC HI FREQ 220000PF 0805 |
4,495 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 2 A | C = 0.22µF | No | -55°C ~ 125°C | - | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
NUF2230XV6T1GFILTER RC(PI) 100 OHM/16PF SMD |
5,016 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | 125MHz (Cutoff) | -30dB @ 800MHz ~ 900MHz | 100 | - | R = 100Ohms, C = 16pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
