EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

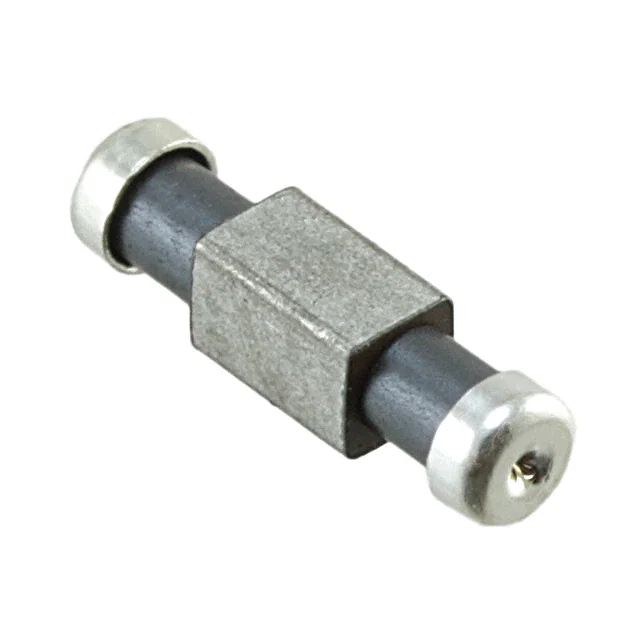

NFE61HT330U2A9LFILTER LC(T) 33PF SMD |
4,775 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 33pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
EMI7204MUTAGFILTER LC(PI) 17NH/12PF ESD SMD |
1,584 |
|
- |
EMI720xMU | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 4 | 250MHz (Cutoff) | -23dB @ 800MHz ~ 6GHz | 10 | 30 mA | L = 17nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.022" (0.55mm) |
|
|
NFE61HT332Z2A9LFILTER LC(T) 3300PF SMD |
8,695 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 3300pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
|
NFE61HT681D2A9LFILTER LC(T) 680PF SMD |
3,968 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 680pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
.jpg)
|
EMI7208MUTAGFILTER LC(PI) 17NH/12PF ESD SMD |
3,781 |
|
- |
EMI720xMU | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 8 | 250MHz (Cutoff) | -23dB @ 800MHz ~ 6GHz | 10 | 30 mA | L = 17nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.053" W (3.30mm x 1.35mm) | 0.022" (0.55mm) |
|

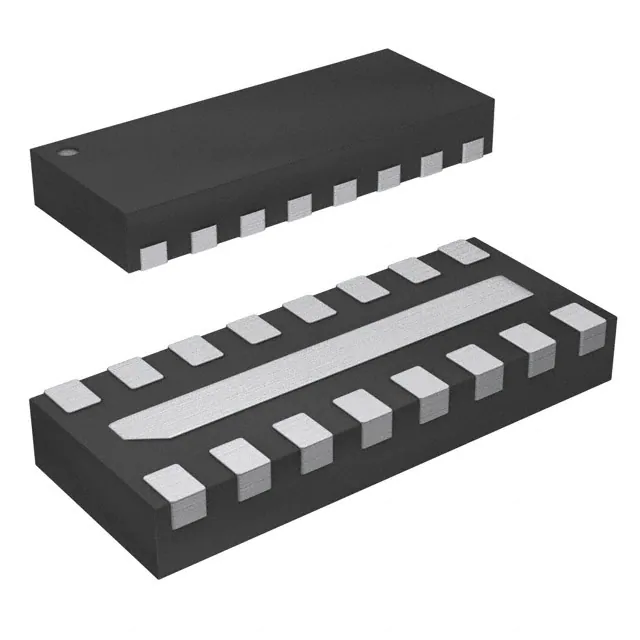

ECLAMP2398P.TCTFILTER LC(PI) 19NH/12PF ESD SMD |
8,896 |
|
- |
EClamp™ | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 8 | 150MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 18 | - | L = 19nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
PMR209MC6100M100R30FILTER RC 100 OHM/0.1UF TH |
1,805 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
ECLAMP2454P.TCTFILTER LC(PI) 28NH/12PF ESD SMD |
11,916 |
|
- |
EMIClamp® | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 4 | 155MHz (Cutoff) | 40dB @ 800MHz ~ 2.7GHz | 33 | - | L = 28nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.026" (0.65mm) |
|

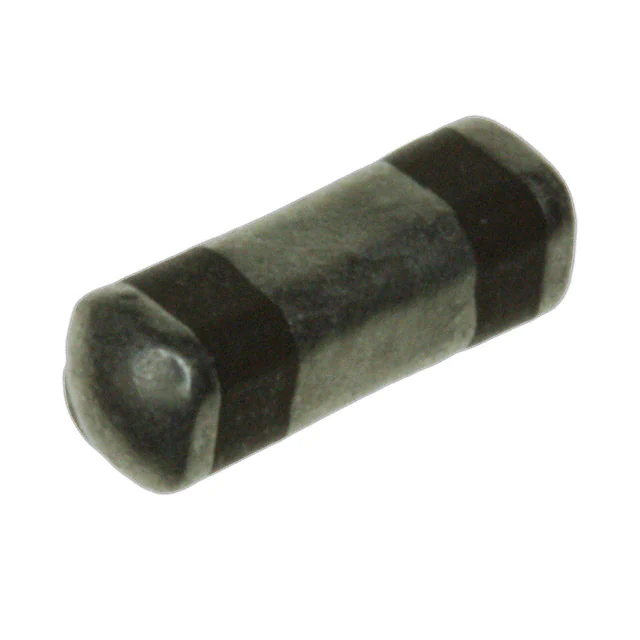

4700-005MLFFILTER LC(PI) 0.1UH/1000PF SMD |
141 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | L = 0.1µH, C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
ECLAMP2410P.TCTFILTER RC(PI) 45 OHM/12PF SMD |
22,738 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | - | 45 | - | R = 45Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|

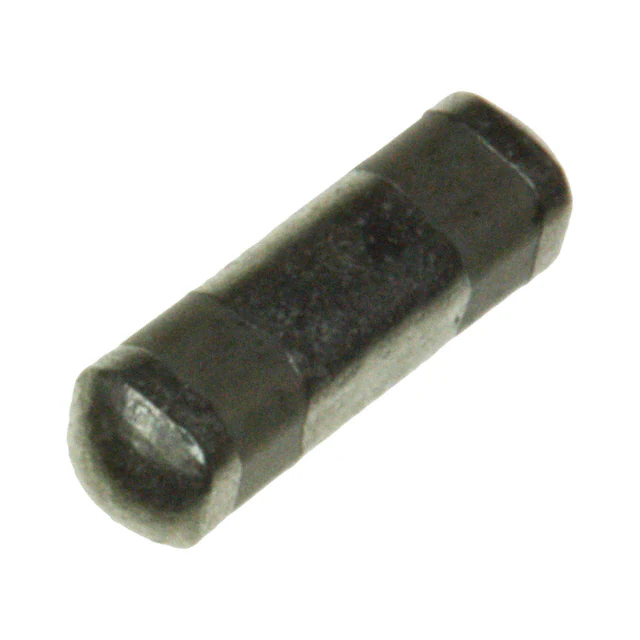

4700-006MLFFILTER LC(PI) 0.1UH/100PF SMD |
2,874 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 3dB @ 100MHz | - | 10 A | L = 0.1µH, C = 100pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
ECLAMP2458P.TCTFILTER LC(PI) 28NH/12PF ESD SMD |
3,759 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 8 | 155MHz (Cutoff) | 40dB @ 800MHz ~ 2.7GHz | 33 | - | L = 28nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|

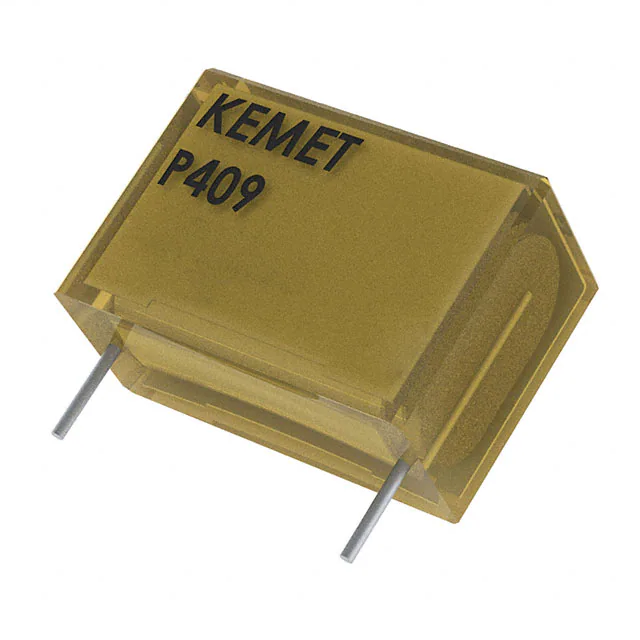

P409CE104M275AH101FILTER RC 100 OHM/0.1UF TH |
864 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
BNX016-01FILTER LC TH |
5,259 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 100kHz ~ 1GHz | - | 15 A | - | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 25V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
|
|
BNX012-01FILTER LC TH |
2,896 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.335" (8.50mm) |
,-3-PC-Pad.jpg)
|
SBSPP1000101MCTFILTER LC(PI) 100PF SMD |
2,990 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 7dB @ 100MHz | - | 1 A | C = 100pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000221MCTFILTER LC(PI) 220PF SMD |
2,358 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 14dB @ 100MHz | - | 1 A | C = 220pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000332MXTFILTER LC(PI) 3300PF SMD |
43,981 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 3300pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000472MXTFILTER LC(PI) 4700PF SMD |
27,420 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 4700pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000222MXTFILTER LC(PI) 2200PF SMD |
8,606 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 2200pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
