EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-3-PC-Pad.jpg)
|
SBSPP1000102MXTFILTER LC(PI) 1000PF SMD |
6,936 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 1000pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000682MXTFILTER LC(PI) 6800PF SMD |
2,777 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 6800pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
BNX022-01LFILTER LC 1UF SMD |
6,209 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 1MHz ~ 1GHz | 0.00043 | 20 A | C = 1µF | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.130" (3.30mm) |
|
|
BNX023-01LFILTER LC 1UF SMD |
16,941 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 1MHz ~ 1GHz | 0.00043 | 20 A | C = 1µF | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.130" (3.30mm) |
|
|
SBSPP0250154MXTFILTER LC(PI) 0.15UF SMD |
8,105 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.15µF | No | - | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000103MXTFILTER LC(PI) 0.01UF SMD |
19,993 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 10000pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000153MXTFILTER LC(PI) 0.015UF SMD |
7,212 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.015µF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP0500683MXTFILTER LC(PI) 0.068UF SMD |
4,520 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.068µF | No | - | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP0500473MXTFILTER LC(PI) 0.047UF SMD |
1,282 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.047µF | No | - | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|

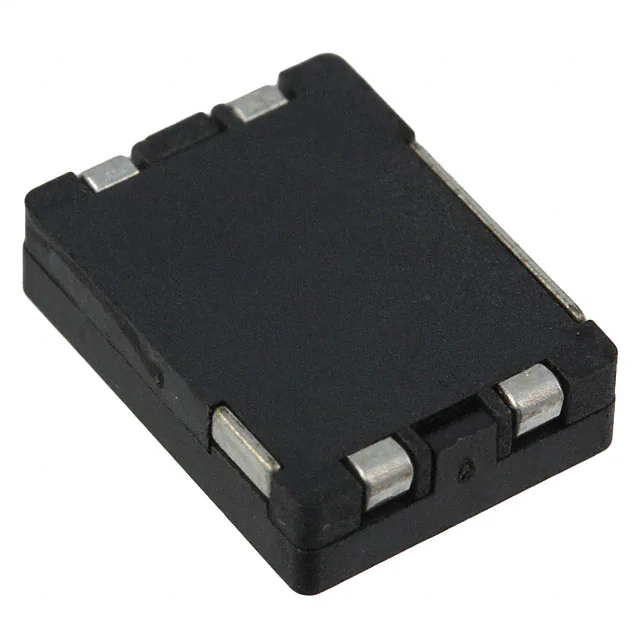

BNX028-01LFILTER LC 47UF SMD |
1,382 |
|
- |
EMIFIL®, BNX | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 30kHz ~ 1GHz | 0.00043 | 20 A | C = 47µF | No | -40°C ~ 105°C | Data Lines for Mobile Devices | 16V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
|
BNX025H01LFILTER LC 10UF SMD |
4,756 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 50kHz ~ 1GHz | 0.00043 | 20 A | C = 10µF | No | -55°C ~ 125°C | - | 25V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
|
BNX024H01LFILTER LC 4.7UF SMD |
1,553 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 100kHz ~ 1GHz | 0.00043 | 20 A | C = 4.7µF | No | -55°C ~ 125°C | - | 50V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
|
BNX029-01LFILTER LC 100UF SMD |
1,270 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 15kHz ~ 1GHz | 0.00043 | 20 A | C = 100µF | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
|
BNX026H01LFILTER LC 10UF SMD |
2,080 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 50kHz ~ 1GHz | 0.00043 | 20 A | C = 10µF | No | -55°C ~ 125°C | - | 50V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
|
BNX023-01BFILTER LC 1UF SMD |
304 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Strip | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 1MHz ~ 1GHz | 0.00043 | 15 A | C = 1µF | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.130" (3.30mm) |
|
BNX003-11FILTER EMI SUPPRESSION BLOCK |
613 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Box | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 5MHz ~ 1GHz | - | 10 A | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 150V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.492" (12.50mm) |
|
4202-053LFFILTER LC(PI) 5000PF CHASSIS |
690 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.88mm) | - |
|

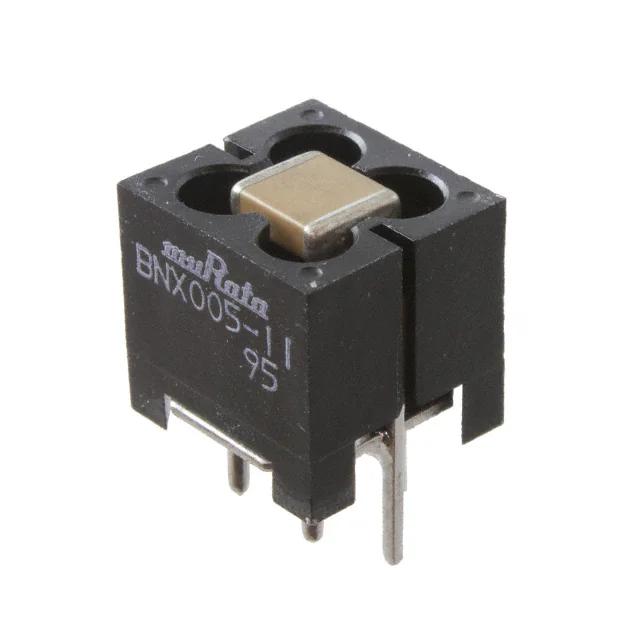

BNX005-11FILTER EMI SUPPRESSION BLOCK |
200 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Box | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 15 A | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.512" (13.00mm) |
|
4251-002LFFILTER LC(PI) 0.012UF CHASSIS |
378 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 0.012µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 125V | - | - | Chassis Mount | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | - |
,-3-PC-Pad.jpg)
|
SBSGP0500224MXTFILTER LC(PI) 0.22UF SMD |
3,914 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.22µF | No | - | General Purpose | 50V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
