EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG1676-51-ELCURC NETWORK, 0.5 MFD, 220 OHM, 48 |
4 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1676-51RC NETWORK, 0.5 MFD, 220 OHM, 48 |
4 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MEM2012F10R0FILTER LC(PI) 10MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (Pi) | 1 | 10MHz (Cutoff) | 20dB @ 200MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NFA21SL506X1A48LFILTER LC 50MHZ SMD |
0 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 50MHz (Cutoff) | 30dB @ 500MHz | - | 20 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|

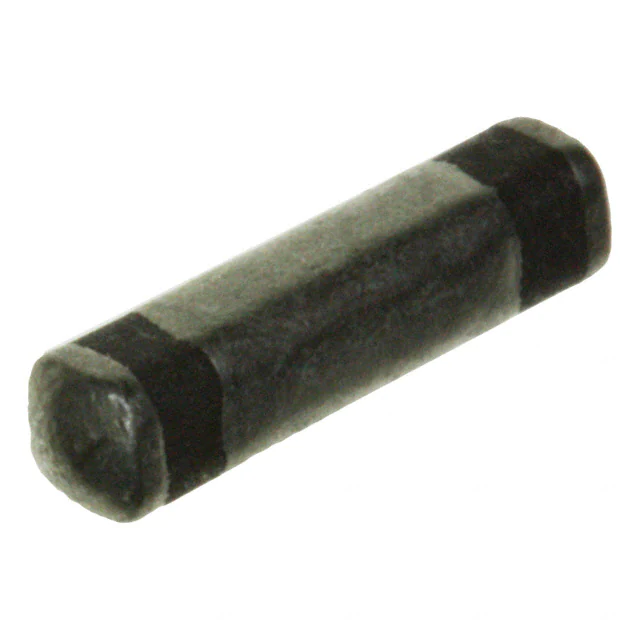

4701-002MLFFILTER LC(PI) 0.1UH/6800PF SMD |
1 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 60dB @ 100MHz | - | 10 A | L = 0.1µH, C = 6800pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.394" L x 0.090" W (10.00mm x 2.29mm) | 0.095" (2.41mm) |
|
4700-003MLFFILTER LC(PI) 0.1UH/2000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | L = 0.1µH, C = 2000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|

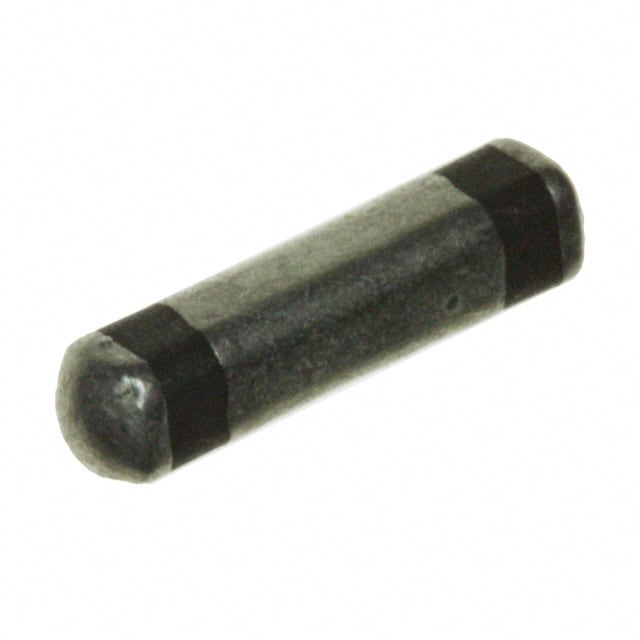

4701-001MLFFILTER LC(PI) 0.1UH/8200PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | L = 0.1µH, C = 8200pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.394" L x 0.090" W (10.00mm x 2.29mm) | 0.095" (2.41mm) |
|

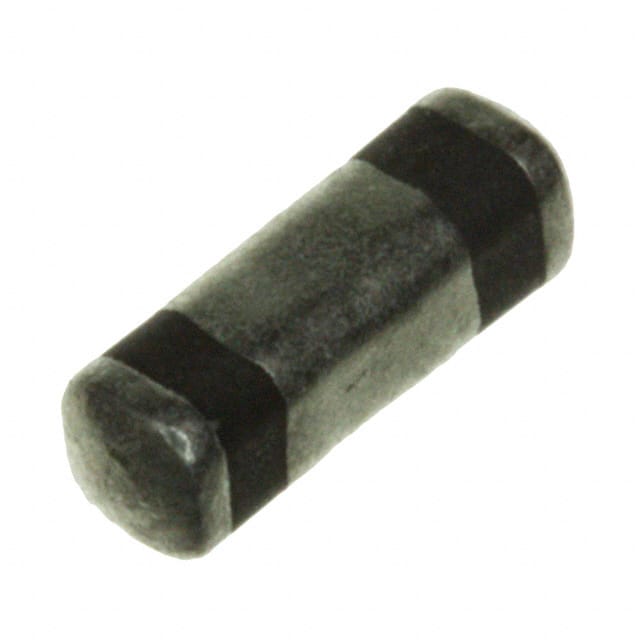

4700-008MLFFILTER LC(PI) 0.1UH/4000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 52dB @ 100MHz | - | 10 A | L = 0.1µH, C = 4000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
BNX002-11FILTER EMI SUPPRESSION BLOCK |
0 |
|
- |
EMIFIL®, BNX | Block, 4 Lead | Box | Active | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 10 A | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 50V | - | - | Through Hole | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.492" (12.50mm) |
|

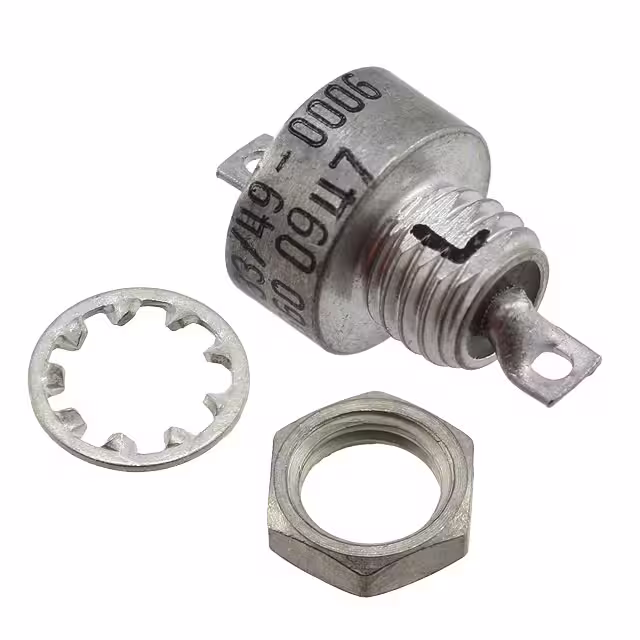

M15733/49-0006FILTER LC 1.2UF/2.4UF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Solder Eyelets | Tray | Active | Low Pass | 2nd | LC | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 15 A | C = 1.2µF, 2.4µF | No | -55°C ~ 125°C | - | 50V | - | - | Chassis Mount | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) | - |
|
4201-051LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|

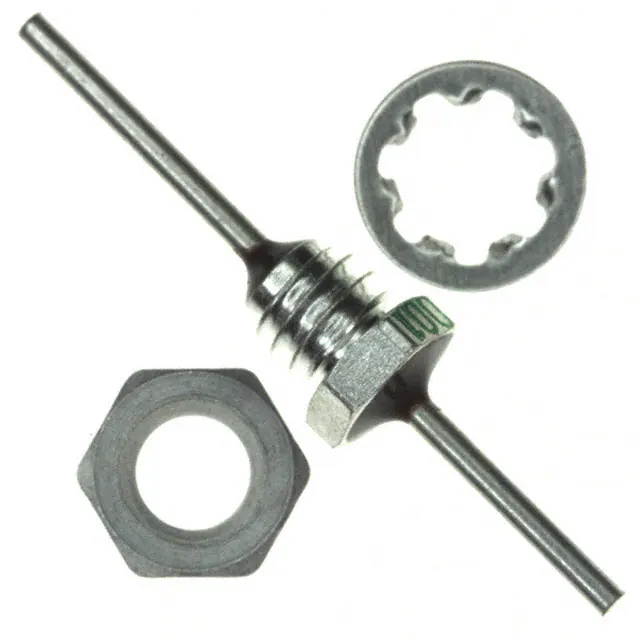

4205-001LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 15 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 125V | - | - | Chassis Mount | 0.187" Dia x 0.200" L (4.75mm x 5.08mm) | - |
|
4206-006LFFILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) | - |
|
4209-053LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.517" L (6.35mm x 13.14mm) | - |
|
4251-004LFFILTER LC(PI) 0.028UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 75dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.028µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | - |
|
4202-004FILTER LC(PI) 2500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 15 A | C = 2500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 350V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
FN7661-16-M4FILTER LC(PI) 70NH/0.1UF BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.0007 | 16 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) | - |
|
MEM2012S101RT001FILTER LC(T) 100MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 100MHz (Cutoff) | 30dB @ 400MHz ~ 2GHz | - | 250 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
MEM2012F101RT001FILTER LC(PI) 100MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | 100MHz (Cutoff) | 20dB @ 1.5GHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NFE61PT181B1H9LFILTER LC(T) 180PF SMD |
0 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 180pF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
