EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBSPP0250104MXTSURFACE MOUNT PI FILTER |
0 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.1µF | No | - | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
BNX024H01BFILTER LC 4.7UF SMD |
3 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Bulk | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 100kHz ~ 1GHz | 0.00043 | 15 A | C = 4.7µF | No | -55°C ~ 125°C | - | 50V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
4202-004LFFILTER LC(PI) 2500PF CHASSIS |
2 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 15 A | C = 2500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 350V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
4200-005LFFILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.156" Dia x 0.350" L (3.96mm x 8.89mm) | - |
|
4201-001LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.479" L (4.75mm x 12.16mm) | - |
|
4201-053LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 15 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.479" L (4.75mm x 12.16mm) | - |
|
|
4601-501DISCOIDAL FILTER |
0 |
|
- |
4601 | Axial, Bushing - 2 Solder Eyelets | Bulk | Active | - | - | LC | - | - | 15dB @ 30kHz, 28dB @ 50kHz, 33dB @ 300kHz, 44dB @ 1MHz, 60dB @ 10MHz, 70dB @ 1GHz, 70dB @ 10GHz | - | 15 A | C = 2.4µF | - | - | - | 100V | - | - | Chassis Mount | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) | - |
|
FN7661-63-M6FILTER LC(PI) 186NH/0.47UH BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00047 | 63 A | L = 186nH, C = 0.47µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 1.260" Dia x 4.764" L (32.00mm x 121.00mm) | - |
|

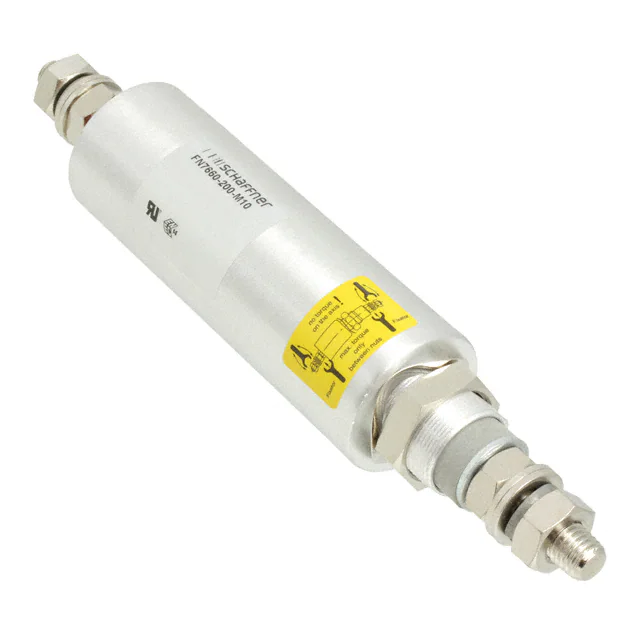

FN7660-200-M10FILTER LC(PI) 124NH/0.47UF BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00024 | 200 A | L = 124nH, C = 0.47µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 1.496" Dia x 5.906" L (38.00mm x 150.00mm) | - |
|
|
NFE61HT181C2A9LFILTER LC(T) 180PF SMD |
0 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 180pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|

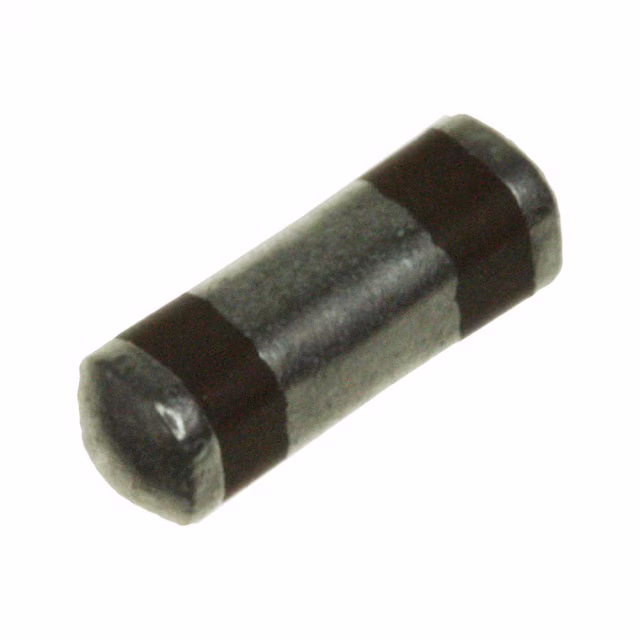

4700-009MLFFILTER LC(PI) 0.1UH/470PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 16dB @ 100MHz | - | 10 A | L = 0.1µH, C = 470pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
PMR209MC6220M220R30FILTER RC 220 OHM/0.22UF TH |
23 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
4400-057LFFILTER LC 0.05UF CHASSIS |
3 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 52dB @ 100MHz | - | 10 A | C = 0.05µF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | Chassis Mount | - | - |
|
4100-053LFFILTER LC(PI) 5000PF/0.01UF TH |
0 |
|
- |
4100 | Radial, Eyelet - PC Pin | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 60dB @ 100MHz | - | 10 A | C = 5000pF, 10000pF | No | -55°C ~ 125°C | - | 200V | - | - | Through Hole | 0.200" Dia x 0.600" L (5.08mm x 15.24mm) | - |
|

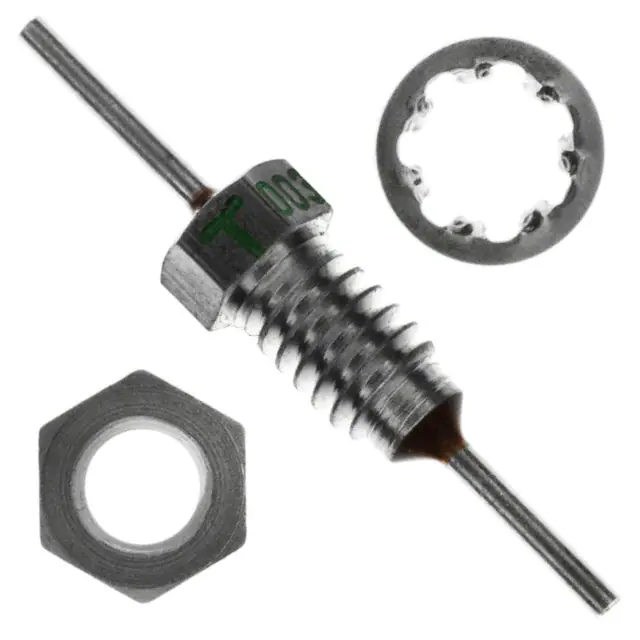

4201-003LFFILTER LC(PI) 2000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 38dB @ 100MHz | - | 15 A | C = 2000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|

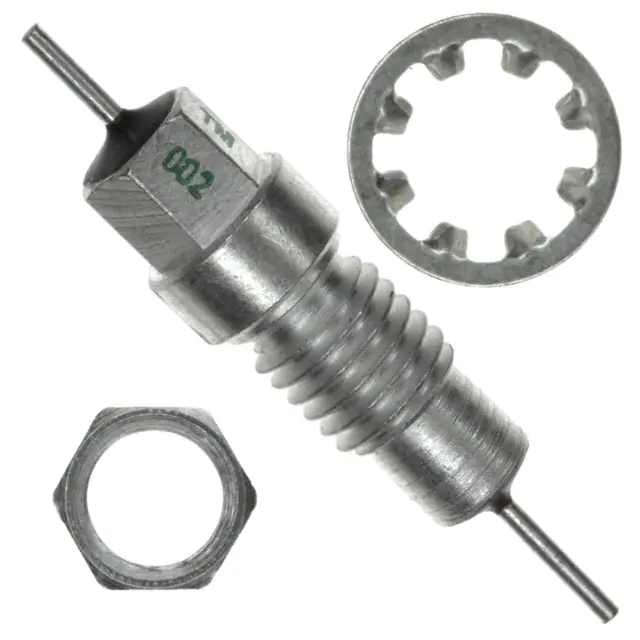

4253-002LFFILTER LC(PI) 0.05UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 75dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.05µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 70V | - | - | Chassis Mount | 0.250" Dia x 0.807" L (6.35mm x 20.49mm) | - |
|
FN7661-10-M3FILTER LC(PI) 70NH/0.1UF BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.0012 | 10 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 3.071" L (20.00mm x 78.00mm) | - |
|

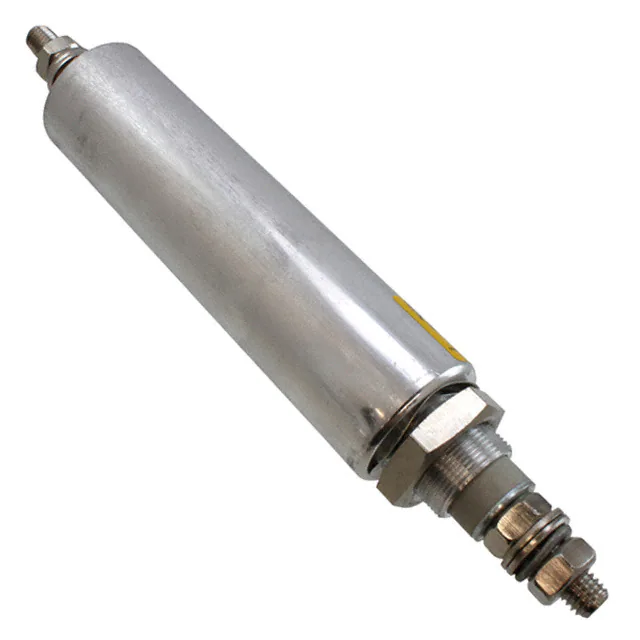

FN7661-100-M8FILTER LC(PI) 186NH/1UH BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00028 | 100 A | L = 186nH, C = 1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 1.260" Dia x 5.354" L (32.00mm x 136.00mm | - |
|
FN7661-200-M10FEED THROUGH FILTER 130VDC/130VA |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00024 | 200 A | L = 124nH, C = 0.47µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 2.126" Dia x 5.906" L (54.00mm x 150.00mm) | - |
|
|
VEMI65AC-HCI-GS08FILTER RC(PI) 100 OHM/13PF SMD |
0 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 240MHz (Cutoff) | - | 100 | 2 A | R = 100Ohms, C = 13pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.024" (0.60mm) |
