EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VEMI353A-HAF-G-08FILTER RC(PI) 30 OHM/37PF SMD |
0 |
|
- |
- | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 100MHz (Cutoff) | - | 30 | 4 A | R = 30Ohms, C = 37pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
VEMI35AA-HAF-G-08FILTER RC(PI) 100 OHM/37PF SMD |
0 |
|
- |
- | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 100MHz (Cutoff) | - | 100 | 4 A | R = 100Ohms, C = 37pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
AOZ8043DIFILTER RC(PI) 100 OHM/9PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 250MHz (Cutoff) | -20dB @ 1GHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 9pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.024" (0.60mm) |
|
PEMI2STD/HE,115FILTER RC(PI) 45 OHM/8.5PF SMD |
0 |
|
- |
PEMI2STD | SOT-665 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 45 | - | R = 45Ohms, C = 8.5pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
|
|
PEMI2STD/HT,115FILTER RC(PI) 45 OHM/23PF SMD |
0 |
|
- |
PEMI2STD | SOT-665 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 45 | - | R = 45Ohms, C = 23pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
|
MEM2012D201RFILTER LC 200MHZ SMD |
0 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | LC | 1 | 200MHz (Cutoff) | 20dB @ 800MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 25V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
KNH16C105DB5TSFILTER LC 1UF SMD |
0 |
|
- |
KNH, Kyocera | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | - | LC | - | - | - | - | 2 A | C = 1µF | No | -40°C ~ 85°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
NFM21HC101U1H3DFILTER LC HIGH FREQ 100PF 0805 |
0 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 700 mA | C = 100pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFM21HC220U1H3DFILTER LC HIGH FREQ 22PF 0805 |
0 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 700 mA | C = 22pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFM21HC470U1H3DFILTER LC HIGH FREQ 47PF 0805 |
0 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 700 mA | C = 47pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
AOZ8073DIFILTER RC(PI) 100 OHM/8PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 220MHz (Cutoff) | -20dB @ 1GHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 8pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.024" (0.60mm) |
|
IP4264CZ8-20,118FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | 45dB @ 800MHz ~ 6GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 11pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.020" (0.50mm) |
|
|
IP4264CZ8-40,118FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | 50dB @ 800MHz ~ 6GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 23pF (Total) | Yes | -35°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.053" W (1.70mm x 1.35mm) | 0.020" (0.50mm) |
.jpg)
|

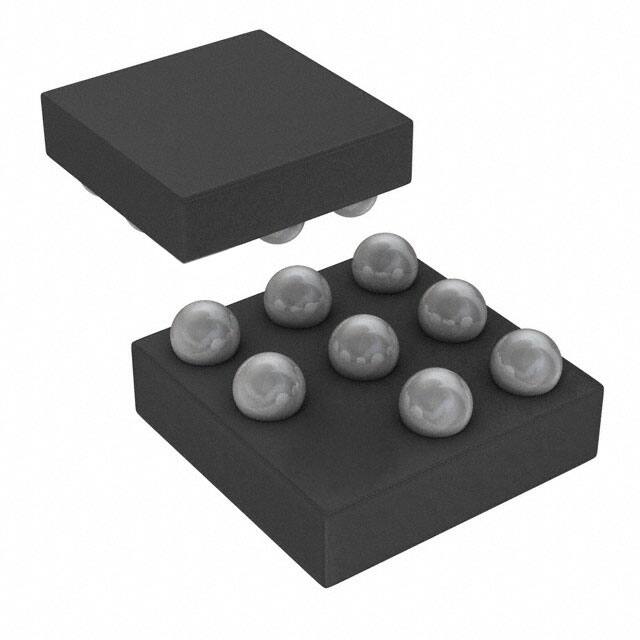

CM6305FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 47, 100 | - | R = 47Ohms, 100Ohms, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.16mm x 1.16mm) | 0.025" (0.64mm) |
|
AOZ8015DILFILTER RC(PI) 100 OHM/20PF SMD |
0 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 100MHz (Cutoff) | -30dB @ 800MHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.024" (0.60mm) |
|
|
AOZ8035DILFILTER RC(PI) 100 OHM/28PF SMD |
0 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 90MHz (Cutoff) | -35dB @ 800MHz ~ 2.2GHz | 100 | 20 mA | R = 100Ohms, C = 28pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.098" L x 0.047" W (2.50mm x 1.20mm) | 0.024" (0.60mm) |
|
|
AOZ8015DIFILTER RC(PI) 100 OHM/20PF SMD |
0 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 100MHz (Cutoff) | -30dB @ 800MHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.024" (0.60mm) |
|

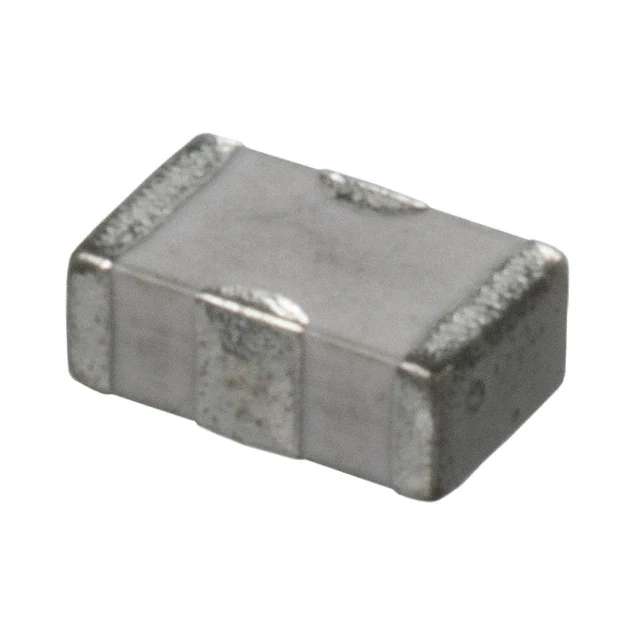

AEMIF-0805-151M-16-TFILTER RC(PI) 1 OHM 150MHZ SMD |
0 |
|
- |
AEMIF-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 150MHz (Cutoff) | 20dB @ 350MHz ~ 2GHz | 1 | 200 mA | R = 1Ohm | No | -40°C ~ 85°C | General Purpose | 16V | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.046" (1.17mm) |
|
|
AEMIF-0805-201M-16-TFILTER RC(PI) 1 OHM 200MHZ SMD |
0 |
|
- |
AEMIF-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 200MHz (Cutoff) | 20dB @ 450MHz ~ 2GHz | 1 | 250 mA | R = 1Ohm | No | -40°C ~ 85°C | General Purpose | 16V | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.046" (1.17mm) |
|
|
AEMIF-0805-301M-16-TFILTER RC(PI) 1 OHM 300MHZ SMD |
0 |
|
- |
AEMIF-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 300MHz (Cutoff) | 20dB @ 550MHz ~ 2GHz | 1 | 300 mA | R = 1Ohm | No | -40°C ~ 85°C | General Purpose | 16V | - | - | Surface Mount | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.046" (1.17mm) |
