EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG1784-8-ELCURC NETWORK, 0.5 MFD, 220 OHM, 25 |
184 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1986-6-12-ELCURC NETWORK, 0.5 MFD, 100 OHM, 25 |
85 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RG1781-8RC NETWORK, 1 MFD, 220 OHM, 125V |
214 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 220Ohm, C = 1µF | No | -40°C ~ 80°C | General Purpose | 200V | - | - | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.780" (19.81mm) |
|
RG1676-16RC NETWORK, 0.5 MFD, 220 OHM, 48 |
116 |
|
- |
- | Block, 4 Lead | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 220Ohm, C = 0.5µF | No | - | General Purpose | 1000V (1kV) | - | - | Through Hole | 1.370" L x 1.280" W (34.80mm x 32.51mm) | 3.000" (76.20mm) |
|
MEM2012F50R0T001FILTER LC(PI) 50MHZ SMD |
236 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | 50MHz (Cutoff) | 20dB @ 400MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
FN7611-16-M4FILTER LC(PI) 70NH/0.022UH BOLT |
17 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00065 | 16 A | L = 70nH, C = 0.022µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 3.268" L (25.00mm x 83.00mm) | - |
|

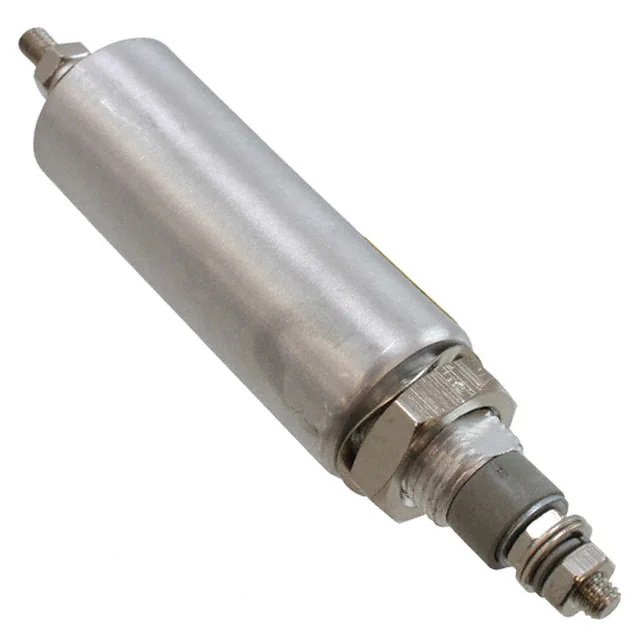

FN7661-32-M4FILTER LC(PI) 70NH/0.1UF BOLT |
3 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.0007 | 32 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) | - |
|
NFE31PT470C1E9LFILTER LC(T) 47PF SMD |
828 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 47pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
|
NFL18ZT706H1A3DEMI SUPPRESSION FILTER MONOLITHI |
477 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 70MHz (Cutoff) | - | - | 75 mA | L = 230nH, C = 70pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
4100-003LFFILTER LC(PI) 3000PF CUSTOM |
59 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 15 A | C = 3000pF | No | -55°C ~ 125°C | - | 50V | - | - | Custom | 0.140" Dia x 0.275" L (3.55mm x 6.98mm) | - |
|
FN7612-10-M3FILTER LC(PI) 70NH/0.047UH |
13 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00152 | 10 A | L = 70nH, C = 0.047µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.787" Dia x 4.370" L (20.00mm x 111.00mm) | - |
|
FN7611-32-M4FILTER LC(PI) 70NH/0.022UH BOLT |
22 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00065 | 32 A | L = 70nH, C = 0.022µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 3.268" L (25.00mm x 83.00mm) | - |
|
FN7612-32-M4FILTER LC(PI) 70NH/0.1UF BOLT |
16 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00092 | 32 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 4.528" L (25.00mm x 115.00mm) | - |
|
FN7611-63-M6FILTER LC(PI) 186NH/0.015UH BOLT |
12 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00047 | 63 A | L = 186nH, C = 0.015µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 1.260" Dia x 4.764" L (32.00mm x 121.00mm) | - |
|
|
MEM2012V211RT001FILTER LC(PI) 210MHZ SMD |
999 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 1 | 210MHz (Cutoff) | 20dB @ 350MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NFM21HC471R1H3DFILTER LC HIGH FREQ 470PF 0805 |
313 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 1 A | C = 470pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
DSS1NB32A331Q91AFILTER LC(T) 330PF TH |
725 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 330pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
MEA1608LC080T001FILTER LC 8PF 280MHZ SMD |
376 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 280MHz (Cutoff) | 20dB @ 800MHz ~ 4GHz | - | 100 mA | C = 8pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
|
DSS1NB31H333Q91AFILTER LC(T) 0.033UF TH |
43 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 0.033µF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
DSS1NB32A470Q91AFILTER LC(T) 47PF TH |
27 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 47pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
EMI/RFI Filters (LC, RC Networks) Electronic Components
Explore EMI/RFI Filters (LC, RC Networks) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
