EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Exposed Pad.jpg)
|
NUF8410MNT4GFILTER RC(PI) 100 OHM/8.5PF SMD |
596 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|
PMR209MC6100M220R30FILTER RC 220 OHM/0.1UF TH |
99 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P409EL474M275AH221FILTER RC 220 OHM/0.47UF TH |
77 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|

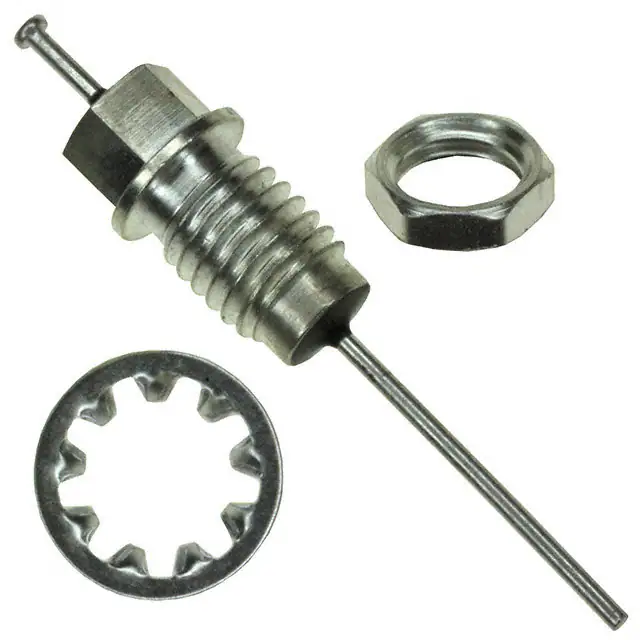

4203-053LFFILTER LC(PI) 5000PF CHASSIS |
65 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.469" L (6.35mm x 11.91mm) | - |
|
2904477FILTER RC ESD DIN RAIL |
13 |
|
- |
PLC | - | Bulk | Active | Low Pass | 2nd | RC | 2 | - | - | - | 20 mA | - | Yes | -25°C ~ 55°C | - | 24V | - | - | DIN Rail | - | - |
|
FN7660-32-M4FILTER LC(PI) 70NH/0.01UH BOLT |
11 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00065 | 32 A | L = 70nH, C = 10000pF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) | - |
|
MEM1608P75R0FILTER LC(PI) 75MHZ SMD |
992 |
|
- |
MEM | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | 75MHz (Cutoff) | 20dB @ 300MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
MEA1608LC220T001FILTER LC 22PF 210MHZ SMD |
353 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 210MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
, Array, 10 PC Pad.jpg)
|
MEA2010PE150T001FILTER LC 15PF 270MHZ SMD |
943 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 270MHz (Cutoff) | - | - | 100 mA | C = 15pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
|
4101-001LFFILTER LC(PI) 1500PF CUSTOM |
21 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.197" Dia x 0.406" L (5.00mm x 10.31mm) | - |
|
M15733/62-0002FILTER LC(PI) 1500PF CUSTOM |
89 |
|
- |
- | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.143" Dia x 0.340" L (3.63mm x 8.64mm) | - |
|
4200-000LFFILTER LC(PI) 1500PF CHASSIS |
97 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.156" Dia x 0.350" L (3.96mm x 8.89mm) | - |
|

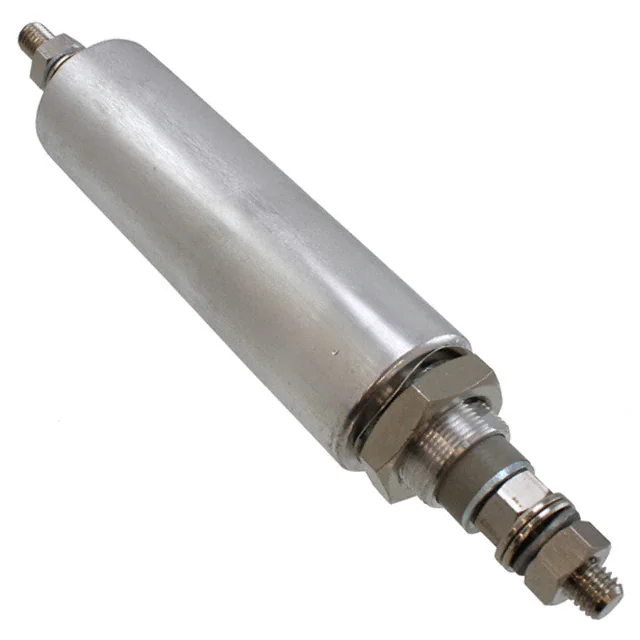

FN7660-100-M8FILTER LC(PI) 124NH/0.47UF BOLT |
10 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00025 | 100 A | L = 124nH, C = 0.47µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 1.260" Dia x 4.724" L (32.00mm x 120.00mm) | - |
|
|
MEA1608LC040T001FILTER LC 4PF 310MHZ SMD |
280 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 310MHz (Cutoff) | 20dB @ 800MHz ~ 1GHz | - | 100 mA | C = 4pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
MEA1608PH220TA0GFILTER LC(PI) 22PF 420MHZ SMD |
549 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 4 | 420MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
DSS1NB32A222Q93AEMI SUPPRESSION FILTERS |
508 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
P409CP224M275AH220FILTER RC 22 OHM/0.22UF TH |
48 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409EL474M275AH151FILTER RC 150 OHM/0.47UF TH |
58 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
2904476FILTER RC ESD DIN RAIL |
60 |
|
- |
PLC | - | Bulk | Active | Low Pass | 2nd | RC | 2 | - | - | - | 15 mA | - | Yes | -25°C ~ 55°C | - | 24V | - | - | DIN Rail | - | - |
|
EMIF04-1K030F3FILTER RC(PI) 1KOHM/24PF ESD SMD |
355 |
|
- |
IPAD™ | 9-WFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | - | 1k | - | R = 1kOhm, C = 24pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.046" W (1.17mm x 1.17mm) | 0.028" (0.70mm) |
