EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEA1608PH150TA0GFILTER LC(PI) 15PF 480MHZ SMD |
0 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (Pi) | 4 | 480MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 15pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
MEA1608P000RFILTER SMD |
0 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Not For New Designs | - | - | - | 4 | - | - | 0.05 | 100 mA | - | No | -40°C ~ 85°C | General Purpose | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
ECLAMP2384K.TCTFILTER RC(PI) 200 OHM/12PF SMD |
0 |
|
- |
EMIClamp® | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | - | 30dB @ 800MHz ~ 2.7GHz | 200 | - | R = 200Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.022" (0.55mm) |
|
RCNL25R0F03R0KTTFILTER RC 25 OHM/3PF SMD |
0 |
|
- |
RCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | - | RC | - | - | - | 25 | - | R = 25Ohms, C = 3pF | No | -55°C ~ 125°C | General Purpose | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
M15733/61-0008FILTER LC(PI) 1000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1000pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|

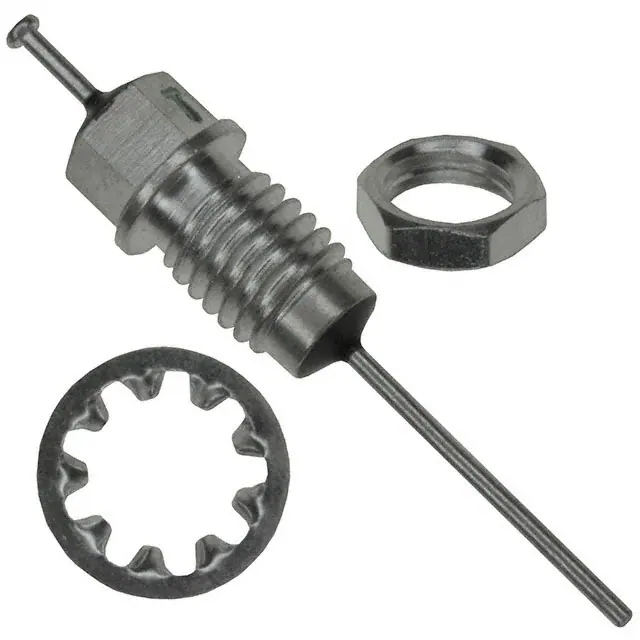

4203-003LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.250" Dia x 0.469" L (6.35mm x 11.91mm) | - |
|
4201-050LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|
4201-000LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|
FLLDU200A945I0FILTER LC (PI) 4.7UF |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 100dB @ 100MHz ~ 1GHz | - | 200 A | C = 4.7µF | No | -40°C ~ 85°C | General Purpose | 350V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|
P410CP683M300AH101FILTER RC 100 OHM/68UF TH |
0 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 68nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
P409EL474M275AH101FILTER RC 100 OHM/0.47UF TH |
0 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
BNX022-01BFILTER LC 1UF SMD |
0 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Strip | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 1MHz ~ 1GHz | 0.00043 | 10 A | C = 1µF | No | -40°C ~ 125°C | Data Lines for Mobile Devices | 50V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.130" (3.30mm) |
|
|
BNX025H01BFILTER LC 10UF SMD |
0 |
|
- |
EMIFIL®, BNX | 4-SMD, No Lead | Strip | Active | Low Pass | 5th | LC | 2 | - | 35dB @ 50kHz ~ 1GHz | 0.00043 | 15 A | C = 10µF | No | -55°C ~ 125°C | - | 25V | - | - | Surface Mount | 0.476" L x 0.358" W (12.10mm x 9.10mm) | 0.146" (3.70mm) |
|
QAS504K600D1500.5UF, 600, 36.8X15X23.4, 150 |
0 |
|
- |
QAS | Radial | Bag | Active | RC Snubber Network | 1st | RC | - | - | - | - | - | R = 150Ohms, C = 0.5µF | - | -55°C ~ 85°C | EMI, RFI Suppression; High Pulse, DV/DT; Snubber | 600V | - | - | Through Hole | 1.450" L x 0.590" W (36.80mm x 15.00mm) | 0.920" (23.40mm) |
|
KNH10C104DA20TSFILTER LC 0.1UF SMD |
0 |
|
- |
KNH, Kyocera | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Low Pass | - | LC | - | - | - | - | 2 A | C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 10V | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.41mm) |
|
AOZ8014DIFILTER RC(PI) 100 OHM/17PF SMD |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 125MHz (Cutoff) | -25dB @ 800MHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.031" (0.79mm) |
|
VEMI255A-HS3-GS08FILTER RC(PI) 50 OHM/37PF SMD |
0 |
|
- |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 100MHz (Cutoff) | - | 50 | 4 A | R = 50Ohms, C = 37pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.031" (0.79mm) |
|
AOZ8033DILFILTER RC(PI) 100 OHM/28PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 90MHz (Cutoff) | -35dB @ 800MHz ~ 2.2GHz | 100 | 20 mA | R = 100Ohms, C = 28pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.024" (0.60mm) |
|
|
AOZ8013DIFILTER RC(PI) 100 OHM/28PF SMD |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 90MHz (Cutoff) | -35dB @ 800MHz ~ 2.2GHz | 100 | 20 mA | R = 100Ohms, C = 28pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.031" (0.79mm) |
|
SP6150-01HTGTVS DIODE ARRAY EMI 5V SOT23-3L |
0 |
|
- |
SP6150 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 60MHz (Cutoff) | - | - | 10 mA | - | Yes | -40°C ~ 125°C | General Purpose | - | - | - | Surface Mount | 0.115" L x 0.051" W (2.92mm x 1.30mm) | - |
EMI/RFI Filters (LC, RC Networks) Electronic Components
Explore EMI/RFI Filters (LC, RC Networks) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
