Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FNM-5FUSE CARTRIDGE 5A 250VAC 5AG |
182 |
|
Datasheet |
FNM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | - | Slow Blow | Motor Protection, Transformer Protection | - | - | CE, CSA, UL | - | 200A | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0HEV040.ZXBDFUSE CARTRIDGE 40A 425VDC BOLT |
202 |
|
Datasheet |
LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 40A | - | 425 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | - | - |
|
0SPF005.TFUSE CARTRIDGE 5A 1KVDC 5AG |
299 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF006.TFUSE CARTRIDGE 6A 1KVDC 5AG |
210 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF001.HFUSE CARTRIDGE 1A 1KVDC 5AG |
167 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF004.TFUSE CARTRIDGE 4A 1KVDC 5AG |
164 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF020.TFUSE CARTRIDGE 20A 1KVDC 5AG |
142 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF010.HXRFUSE CARTRIDGE 10A 1KVDC 5AG |
3,119 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 10A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKD020.TFUSE CARTRIDGE 20A 600VAC/VDC |
339 |
|
Datasheet |
POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKR005.TFUSE CARTRIDGE 5A 600VAC/300VDC |
289 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 5A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLKR001.TFUSE CARTRIDGE 1A 600VAC/300VDC |
288 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
CCMR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
309 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR020.HXPFUSE CARTRIDGE 20A 600VAC/500VDC |
122 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR005.TXPFUSE CARTRIDGE 5A 600VAC/250VDC |
114 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR006.TXPFUSE CARTRIDGE 6A 600VAC/250VDC |
62 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR008.TXPFUSE CARTRIDGE 8A 600VAC/250VDC |
50 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0TLS100.TFUSE CARTRIDGE 100A 170VDC |
44 |
|
Datasheet |
POWR-GARD® TLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.880" L (14.30mm x 22.35mm) | - | - |
|

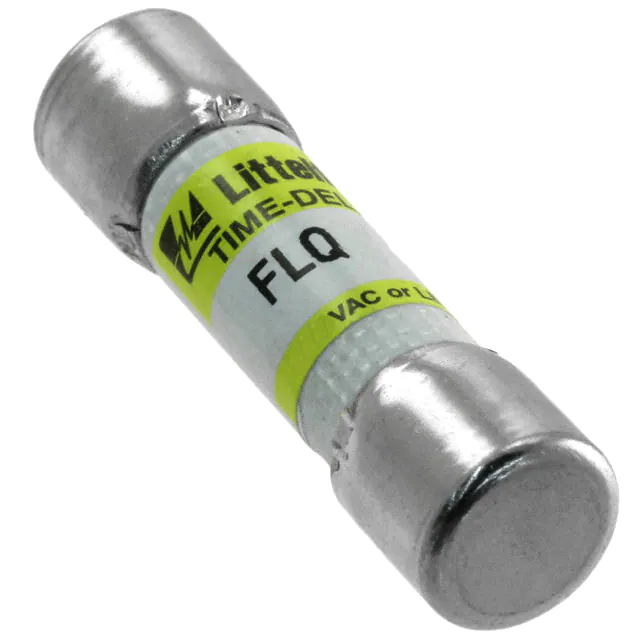

0FLQ025.TFUSE CARTRIDGE 25A 500VAC/300VDC |
27 |
|
Datasheet |
POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF004.HXRFUSE CARTRIDGE 4A 1KVDC 5AG |
584 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 4A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0SPF030.HXRFUSE CARTRIDGE 30A 1KVDC 5AG |
184 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
