Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0242.040URFUSE CRTRDGE 40MA 250VAC/VDC |
22,856 |
|
Datasheet |
242 | Cartridge, Non-Standard | Tape & Reel (TR) | Active | Surface Mount | Cartridge | 40mA | 250 VAC | 250 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | - | - |
|

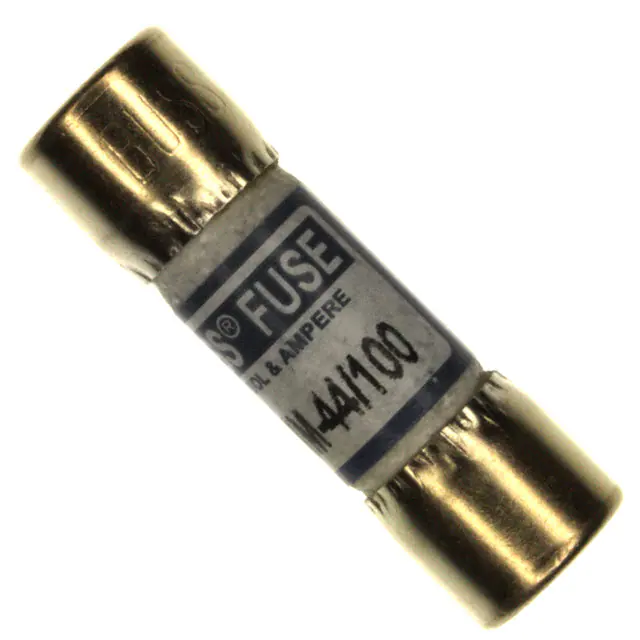

943121FUSE CARTRIDGE 440MA 1KVAC |
480 |
|
Datasheet |
- | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|

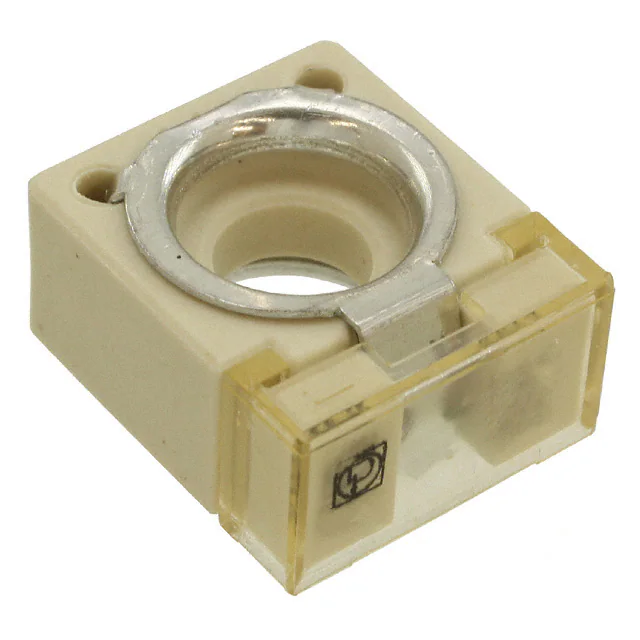

155.0892.6101FUSE SQUARE 100A 58VDC RECT |
2,544 |
|
Datasheet |
CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 100A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|

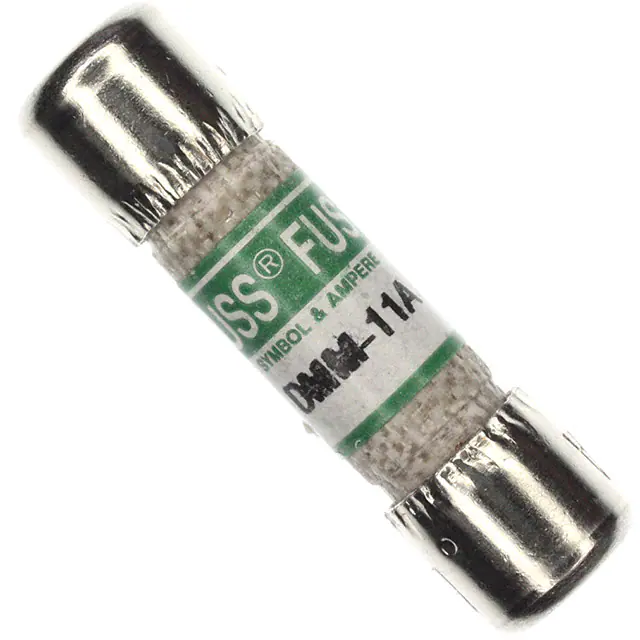

803293FUSE CARTRIDGE 11A 1KVAC 5AG |
4,315 |
|
Datasheet |
- | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|

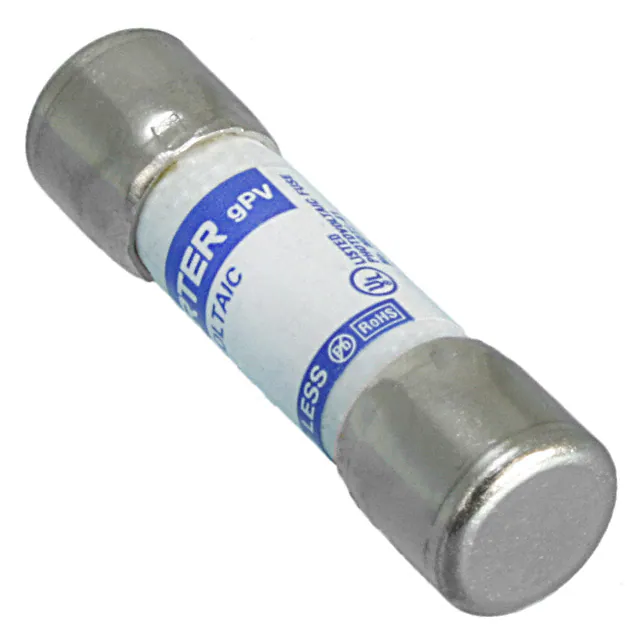

0090.0015FUSE CARTRIDGE 15A 1KVDC 5AG |
338 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|

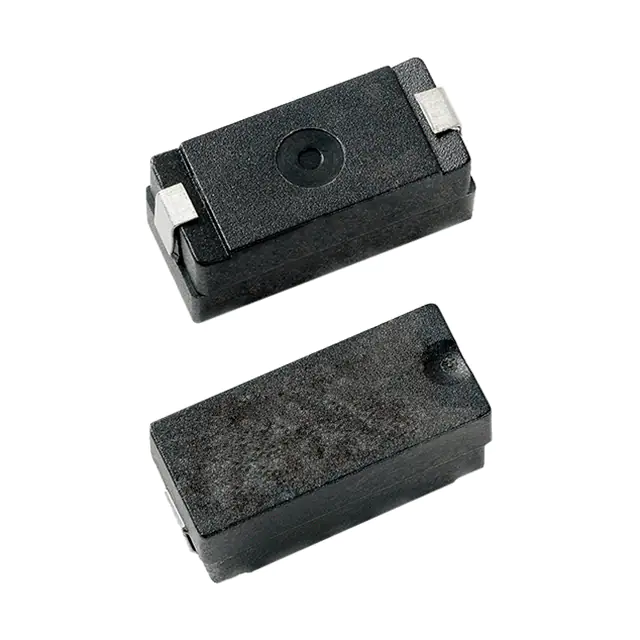

0304.100HRFUSE BRD MNT 100MA 277VAC/DC SMD |
236 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 100mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|

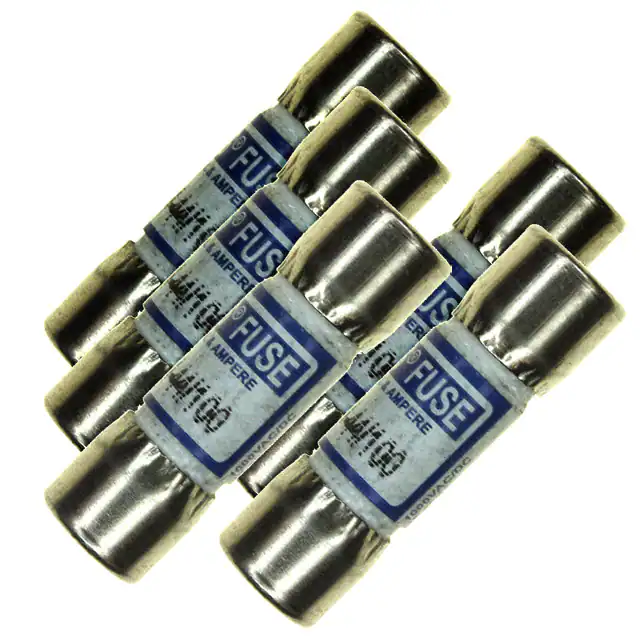

203414FUSE CARTRIDGE 440MA 1KVAC 5PK |
119 |
|
Datasheet |
- | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | - | - | - |
|
SPXV015.LFUSE CARTRIDGE 15A 1.5KVDC |
537 |
|
Datasheet |
POWR-GARD® SPXV | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
KLKR030.TFUSE CARTRIDGE 30A 600VAC/300VDC |
184 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SPF030.TFUSE CARTRIDGE 30A 1KVDC 5AG |
136 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF001.TFUSE CARTRIDGE 1A 1KVDC 5AG |
116 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0KLK020.TFUSE CARTRIDGE 20A 600VAC/500VDC |
150 |
|
Datasheet |
POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV006.TFUSE CARTRIDGE 6A 1.5KVDC |
153 |
|
Datasheet |
POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 6A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
KLKD002.TFUSE CARTRIDGE 2A 600VAC/VDC |
115 |
|
Datasheet |
POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 2A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
CCMR030.TXPFUSE CARTRIDGE 30A 600VAC/500VDC |
1,059 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR010.TXPFUSE CARTRIDGE 10A 600VAC/250VDC |
1,032 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR015.TXPFUSE CARTRIDGE 15A 600VAC/500VDC |
291 |
|
- |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR025.TXPFUSE CARTRIDGE 25A 600VAC/500VDC |
120 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR020.TXPFUSE CARTRIDGE 20A 600VAC/500VDC |
77 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 500 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SPF012.HXRFUSE CARTRIDGE 12A 1KVDC 5AG |
139 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 12A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
