Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF-FB1-300FUSE BOLT MNT 800VAC 800VDC 300A |
39 |
|
Datasheet |
POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 1.386" Dia x 2.724" L (35.20mm x 69.20mm) | - | - |
|
JLLN300.XFUSE CRTRDGE 300A 300VAC/125VDC |
58 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
0JTD080.VXIDFUSE CARTRIDGE 80A 600VAC/300VDC |
56 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 80A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
A70QS250-494832-FUSE,FORM 101 |
50 |
|
Datasheet |
A70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 700 VAC | 700 VDC | Fast Blow | Motor Protection | - | - | CSA, UL | - | 200kA AC, 100kA DC | 1.500" Dia x 5.079" L (38.10mm x 129.00mm) | - | - |
|
SPFJ125.XFUSE CARTRIDGE 125A 600VAC/1KVDC |
26 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 125A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|

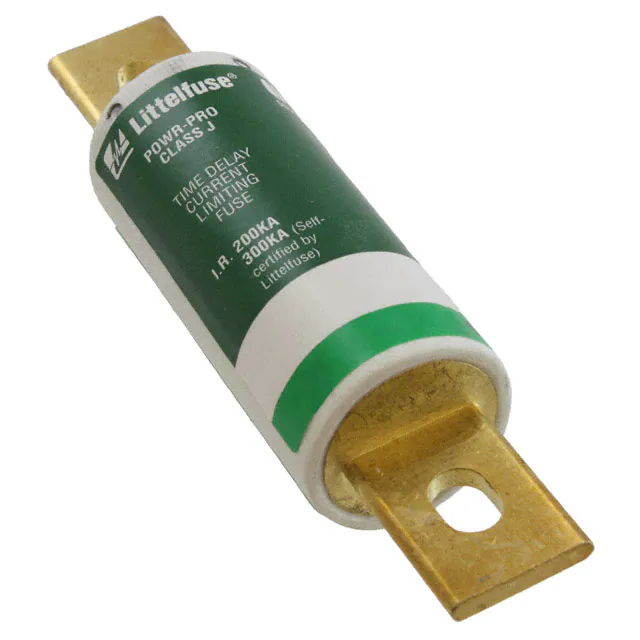

0JTD400.XFUSE CRTRDGE 400A 600VAC/500VDC |
72 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 400A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.000" Dia x 3.374" L (50.80mm x 85.70mm) | - | - |
|
156.5677.5802FUSE STRIP 80A 32VDC BOLT 5K PC |
3,663 |
|
Datasheet |
HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 80A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5677.6152FUSE STRIP 150A 32VDC BOLT 5K PC |
3,719 |
|
Datasheet |
HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 150A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5677.5402FUSE STRIP 40A 32VDC BOLT MOUNT |
3,675 |
|
Datasheet |
HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 40A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
156.5610.5502FUSE STRIP 50A 36VDC BOLT MOUNT |
3,023 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 50A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
|
156.5610.6122FUSE STRIP 125A 36VDC BOLT MOUNT |
3,920 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 125A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
|
156.5677.5801FUSE STRIP 80A 32VDC BOLT 100PC |
1,516 |
|
Datasheet |
HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 80A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
|
156.5677.5501FUSE STRIP 50A 32VDC BOLT |
170 |
|
Datasheet |
HSB | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 50A | - | 32 VDC | - | Automotive | - | - | - | -40°C ~ 125°C | 1kA | 1.654" L x 0.472" W x 0.031" H (42.00mm x 12.00mm x 0.80mm) | - | - |
|
TR-1245UMFT5-RFUSE T-DELAY 250V 1245 5A |
2,823 |
|
Datasheet |
1245UMFT | 2-SMD, Square End Block | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 5A | 250 VAC | - | Slow Blow | Electrical, Industrial | - | - | cURus | -40°C ~ 125°C | 100A | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | - | - |
|
|
156.5610.6151FUSE STRIP 150A 36VDC BOLT MOUNT |
1,384 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 150A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
SCF4030-15-05FUSE TRIGGERABLE 15A 36V 5 CELL |
4,890 |
|
Datasheet |
SCF4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 15A | - | 36 VDC | Fast Blow | Battery Protection | 12 ~ 21.5V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
|
TR-1245UMFT6-3-RFUSE T-DELAY 250V 1245 6.3A |
2,646 |
|
Datasheet |
1245UMFT | 2-SMD, Square End Block | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 6.3A | 250 VAC | - | Slow Blow | Electrical, Industrial | - | - | cURus | -40°C ~ 125°C | 100A | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | - | - |
|
|
TR-1245UMFT2-RFUSE T-DELAY 250V 1245 2A |
2,420 |
|
Datasheet |
1245UMFT | 2-SMD, Square End Block | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 2A | 250 VAC | - | Slow Blow | Electrical, Industrial | - | - | cURus | -40°C ~ 125°C | 100A | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | - | - |
|
|
TR-1245UMFT1-RFUSE T-DELAY 250V 1245 1A |
1,680 |
|
Datasheet |
1245UMFT | 2-SMD, Square End Block | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1A | 250 VAC | - | Slow Blow | Electrical, Industrial | - | - | cURus | -40°C ~ 125°C | 100A | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | - | - |
|
|
BK1/TDC180-3AFUSE CARTRIDGE 3A 240VAC 8AG |
772 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 3A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
