Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK-AHC-600-RFUSE 600V 3AB CARTRIDGE 600MA |
164 |
|
Datasheet |
AHC | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Active | Requires Holder | Cartridge, Ceramic | 600mA | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | cURus | -55°C ~ 125°C | 10kA | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | - | - |
|
|
BK-AHC-400-RFUSE 600V 3AB CARTRIDGE 400MA |
198 |
|
Datasheet |
AHC | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Active | Requires Holder | Cartridge, Ceramic | 400mA | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | cURus | -55°C ~ 125°C | 10kA | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | - | - |
|
SCF9550-45-14FUSE TRIGGERABLE 45A 80V 13-14 C |
5,587 |
|
Datasheet |
SCF9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 45A | - | 80 VDC | Fast Blow | Battery Protection | 47.2 ~ 62V Triggerable | - | cURus | -20°C ~ 60°C | 120A | 0.374" L x 0.197" W x 0.091" H (9.50mm x 5.00mm x 2.30mm) | - | - |
|

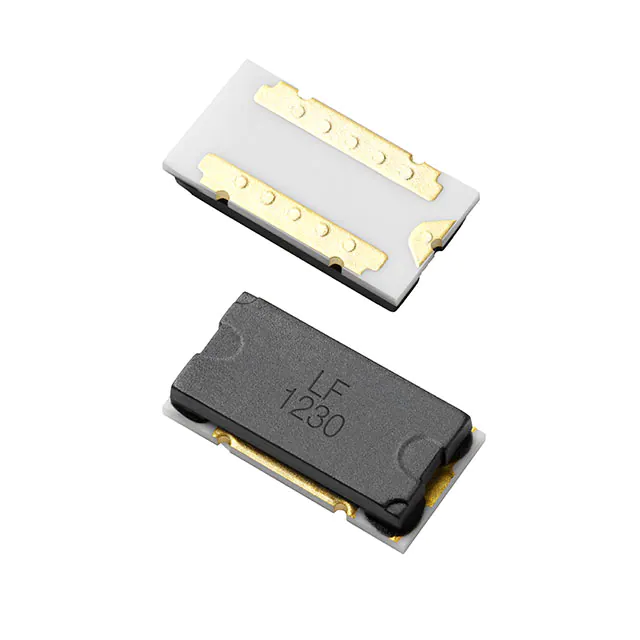

ITV9550L5045MRFUSE BATTERY PROTECTOR 50V 45A |
2,593 |
|
Datasheet |
POLYSWITCH®, ITV9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 45A | - | 62 VDC | Fast Blow | Battery Protection | 43.7 ~ 62V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 120A | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | - | - |
|
|
ITV9550L4045MRFUSE BATTERY PROTECTOR 40V 45A |
1,432 |
|
Datasheet |
POLYSWITCH®, ITV9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 45A | - | 62 VDC | Fast Blow | Battery Protection | 33 ~ 46.9V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 120A | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | - | - |
|

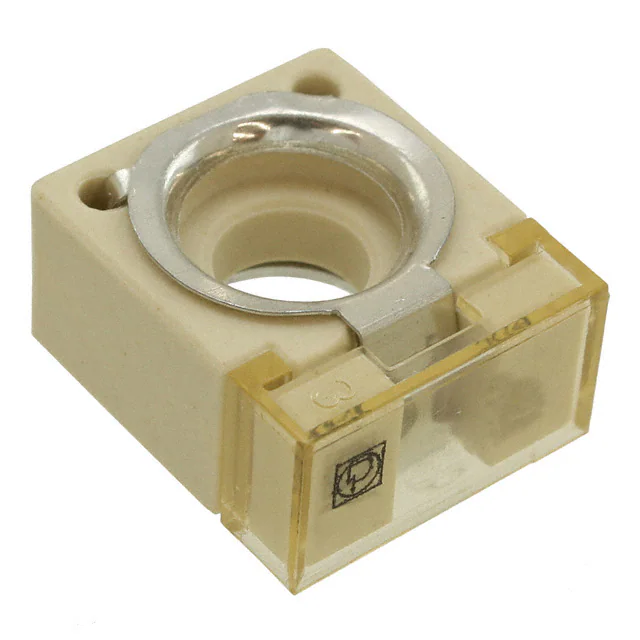

155.0892.5501FUSE SQUARE 50A 58VDC RECT |
1,123 |
|
Datasheet |
CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 50A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|

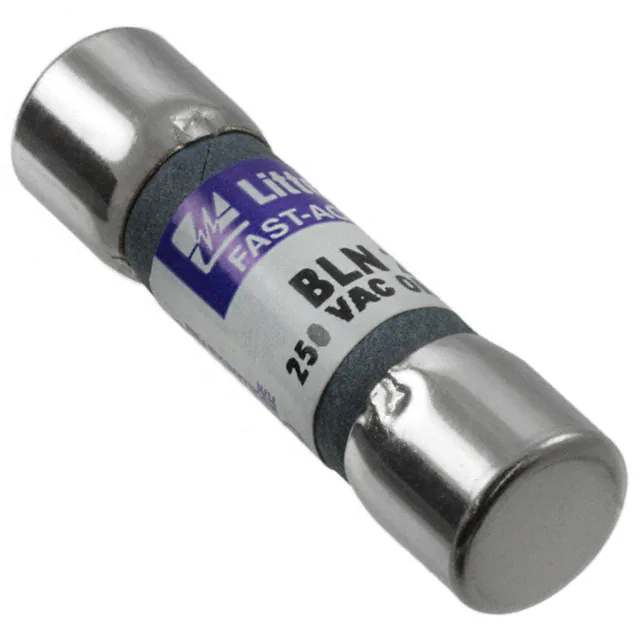

0BLN015.TFUSE CARTRIDGE 15A 250VAC 5AG |
108 |
|
Datasheet |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
155.0892.6301FUSE SQUARE 300A 58VDC RECT |
285 |
|
Datasheet |
CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 300A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|

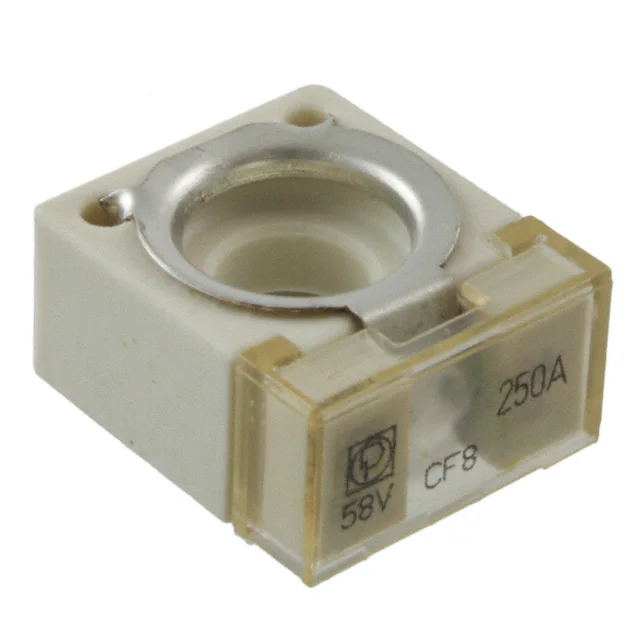

155.0892.6251FUSE SQUARE 250A 58VDC RECT |
188 |
|
Datasheet |
CF8 | Rectangular | Bulk | Active | Bolt Mount | Square | 250A | - | 58 VDC | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA | 0.925" L x 0.787" W x 0.453" H (23.50mm x 20.00mm x 11.50mm) | - | - |
|
|
ITV9550L5060MRBATTERY PROTECTOR |
410 |
|
Datasheet |
ITV9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 60A | - | 85 VDC | Fast Blow | Battery Protection | - | - | - | -10°C ~ 65°C | 160A | 0.374" L x 0.197" W x 0.079" H (9.50mm x 5.00mm x 2.00mm) | - | - |
|
|
AHCA-30-1PFUSE PCB 6X32MM AUTO 30A |
1,849 |
|
Datasheet |
AHCA | Radial Bend Cylinder | Tray | Active | Through Hole | Cartridge, Ceramic | 30A | 450 VAC | 450 VDC | Fast Blow | Electrical, Industrial | - | - | cURus | -55°C ~ 125°C | 10kA | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | - | - |
|

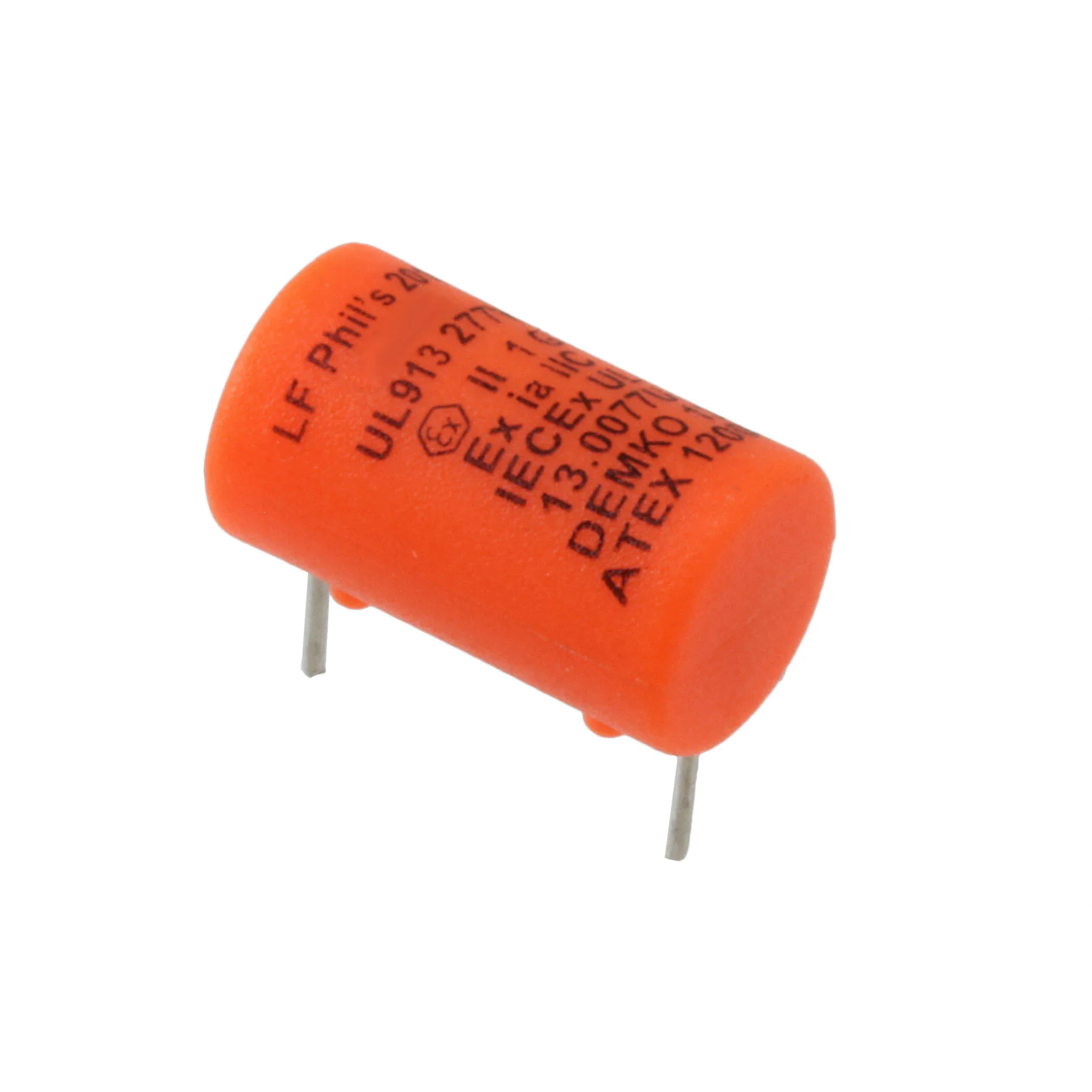

0305.160HFUSE BRD MNT 160MA 277VAC/VDC |
179 |
|
Datasheet |
PICO® 305 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 160mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | ATEX, cURus, IECEx | -40°C ~ 50°C | 1.5kA | 0.354" Dia x 0.614" L (9.00mm x 15.60mm) | - | - |
|
0ADHC0440-BEFUSE CERM 0.44A 1000VAC/VDC |
852 |
|
Datasheet |
0ADH | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge, Ceramic | 440mA | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | - | - | 30kA | 0.406" Dia x 1.476" L (10.30mm x 37.50mm) | - | - |
|

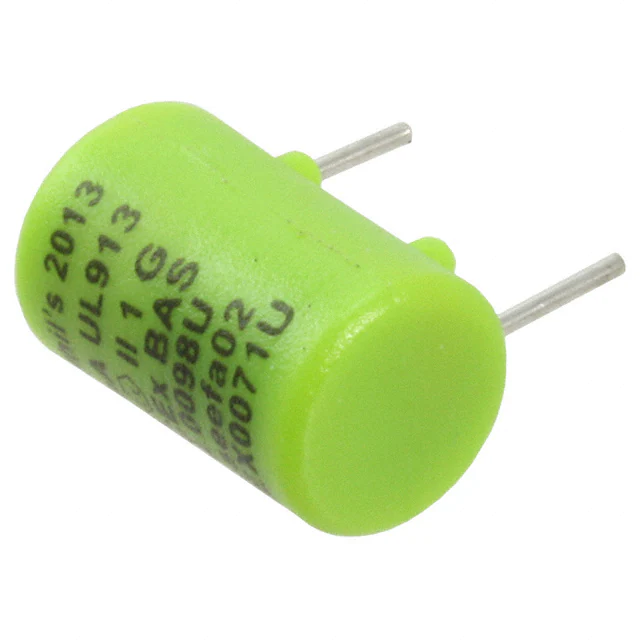

0259.125MX913FUSE BRD MNT 125MA 125VAC/VDC |
1,362 |
|
Datasheet |
PICO® 259-UL913 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 125mA | 125 VAC | 125 VDC | - | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | - | - |
|
0090.0030FUSE CARTRIDGE 30A 1KVDC 5AG |
727 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0ADHC9110-BEFUSE CERM 11A 1000VAC/VDC |
622 |
|
Datasheet |
0ADH | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge, Ceramic | 11A | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | - | - | 30kA | 0.406" Dia x 1.476" L (10.30mm x 37.50mm) | - | - |
|
|
EKC14-50-SCTFUSE EV 50A 1000VDC SCT TERM |
245 |
|
Datasheet |
EKC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
|
EKC14-40-SCTFUSE EV 40A 1000VDC SCT TERM |
205 |
|
Datasheet |
EKC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
|
0ADHC9100-BEFUSE CERM 10A 1000VAC/VDC |
308 |
|
Datasheet |
0ADH | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10A | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | - | - | 30kA | 0.406" Dia x 1.476" L (10.30mm x 37.50mm) | - | - |
|
CCMR010.HXPFUSE CARTRIDGE 10A 600VAC/250VDC |
132 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
