Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP-CC-30FUSE CARTRIDGE 30A 600VAC/300VDC |
135 |
|
Datasheet |
Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
|
LP-CC-15FUSE CARTRIDGE 15A 600VAC/150VDC |
49 |
|
Datasheet |
Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 150 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
|

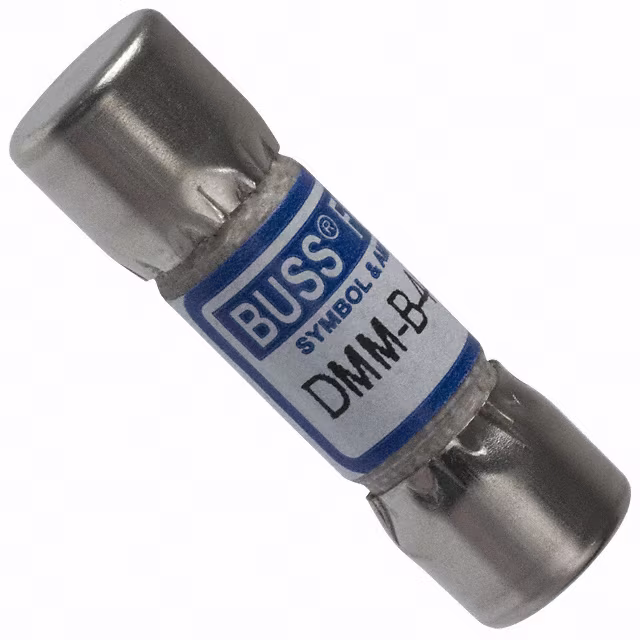

DMM-B-44/100FUSE CARTRIDGE 440MA 1KVAC/VDC |
61 |
|
Datasheet |
DMM-B | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | UL | - | 10kA | 0.394" Dia x 1.374" L (10.00mm x 34.90mm) | - | - |
|
TCF20RNFUSE RECT 20A 600VAC/300VDC |
49 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 20A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.890" L x 0.748" W x 0.984" H (48.00mm x 19.00mm x 25.00mm) | - | - |
|

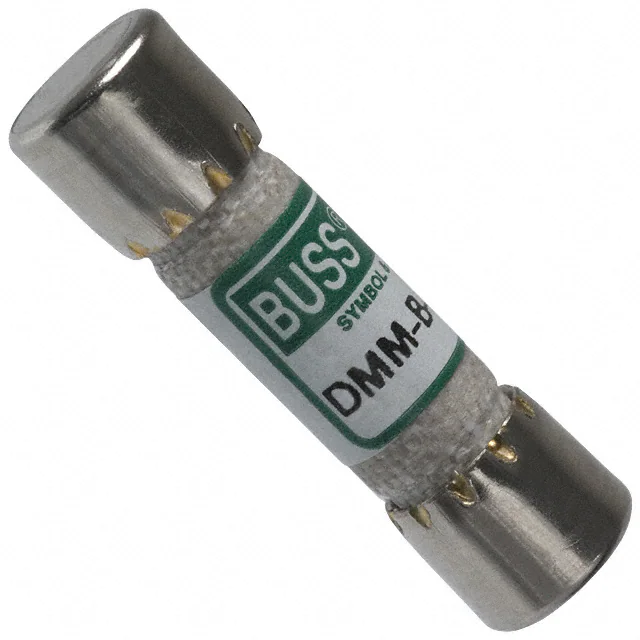

DMM-B-11AFUSE CARTRIDGE 11A 1KVAC/VDC |
31 |
|
Datasheet |
DMM-B | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | UL | - | 20kA | 0.394" Dia x 1.500" L (10.00mm x 38.10mm) | - | - |
|

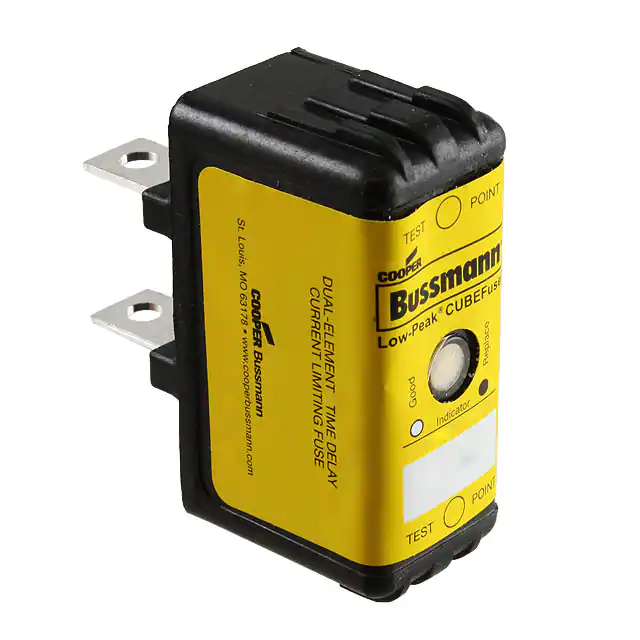

TCF30FUSE RECT 30A 600VAC/300VDC BLAD |
40 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
FWP-80A22FFUSE CARTRIDGE 80A 700VAC/500VDC |
156 |
|
Datasheet |
FWP | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 80A | 700 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA AC, 50kA DC | 0.874" Dia x 2.283" L (22.20mm x 58.00mm) | - | - |
|

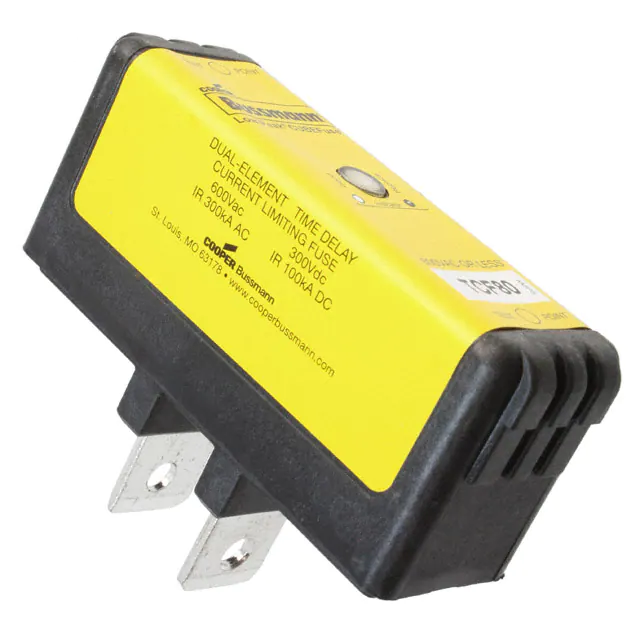

TCF80FUSE RECT 80A 600VAC/300VDC BLAD |
50 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 80A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
BK1/TDC180-10AFUSE CARTRIDGE 10A 240VAC 8AG |
4,580 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 10A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
BK1/TDC180-13AFUSE CARTRIDGE 13A 240VAC 8AG |
542 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 13A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
|
TPS259813ARPWR2.7-V TO 16-V, 10-A, 6-M EFUSE W |
2,039 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BK1/TDC180-5AFUSE CARTRIDGE 5A 240VAC 8AG |
709 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 5A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
BK1/TDC180-1AFUSE CARTRIDGE 1A 240VAC 8AG |
971 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 1A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
SCF4030-22-04FUSE TRIGGERABLE 22A 48V 4 CELL |
3,833 |
|
Datasheet |
SCF4030 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 22A | - | 48 VDC | Fast Blow | Battery Protection | 12 ~ 18.5V Triggerable | - | cURus | -20°C ~ 60°C | 200A | 0.157" L x 0.118" W x 0.039" H (4.00mm x 3.00mm x 1.00mm) | - | - |
|
BK-TDC600-2-RFUSE CARTRIDGE 2A 600VAC 8AG 1=1 |
579 |
|
Datasheet |
TDC600 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | UL | - | 200A | 0.250" Dia x 1.000" L (6.35mm x 25.40mm) | - | - |
|
|
BK/TDC600-10-RFUSE CARTRIDGE 10A 600VAC 8AG |
155 |
|
Datasheet |
TDC600 | 8AG, 1/4" x 1" | - | Active | Requires Holder | Cartridge | 10A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, BSI | - | 200A | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
ITV4030L1412NRFUSE BATTERY PROTECTOR 36V 12A |
3,165 |
|
Datasheet |
POLYSWITCH®, ITV4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 12A | - | 36 VDC | Fast Blow | Battery Protection | 10.5 ~ 19.6V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
SCF5432-30-10FUSE TRIGGERABLE 30A 62V 9-10C |
4,449 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 34.2 ~ 46.9V Triggerable | - | cURus | -20°C ~ 60°C | 80A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
0308.375URFUSE BRD MNT 375MA 24VAC/30VDC |
528 |
|
Datasheet |
308 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 375mA | 24 VAC | 30 VDC | Slow Blow | Hazardous Locations | Intrinsically Safe | - | cURus, Ex, IEC, IECEx | -40°C ~ 70°C | 50A | 0.213" L x 0.150" W x 0.144" H (5.40mm x 3.80mm x 3.65mm) | - | - |
|
|
03081.25URFUSE BRD MNT 1.25A 24VAC/30VDC |
511 |
|
Datasheet |
308 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1.25A | 24 VAC | 30 VDC | Slow Blow | Hazardous Locations | Intrinsically Safe | - | cURus, Ex, IEC, IECEx | -40°C ~ 70°C | 50A | 0.213" L x 0.150" W x 0.144" H (5.40mm x 3.80mm x 3.65mm) | - | - |
