Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF4030-12-02FUSE TRIGGERABLE 12A 36V 2 CELL |
14,610 |
|
Datasheet |
SCF4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 12A | - | 36 VDC | Fast Blow | Battery Protection | 4 ~ 9V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
|
SCF4030-12-04FUSE BRD MNT 12A 36VDC SMD |
14,065 |
|
Datasheet |
SCF4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 12A | - | 36 VDC | Fast Blow | Battery Protection | 10.5 ~ 19.6V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
|
SCF4030-15-02FUSE TRIGGERABLE 15A 36V 2 CELL |
4,890 |
|
Datasheet |
SCF4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 15A | - | 36 VDC | Fast Blow | Battery Protection | 5 ~ 9V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
|
SCF4030-12-01FUSE TRIGGERABLE 12A 36V 1 CELL |
4,621 |
|
Datasheet |
SCF4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 12A | - | 36 VDC | Fast Blow | Battery Protection | 3 ~ 4.5V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
CC12M20AFUSE CARTRIDGE 20A 600VAC/300VDC |
2,609 |
|
Datasheet |
CC12M | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CSA, UL | - | 200kA AC, 20kA DC | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - |
|
BK1/TDC180-2AFUSE CARTRIDGE 2A 240VAC 8AG |
821 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 2A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|
BK1/TDC180-7AFUSE CARTRIDGE 7A 240VAC 8AG |
765 |
|
Datasheet |
TDC180 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 7A | 240 VAC | - | Fast Blow | Electrical, Industrial | - | - | ASTA, CCC | - | 6kA | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) | - | - |
|

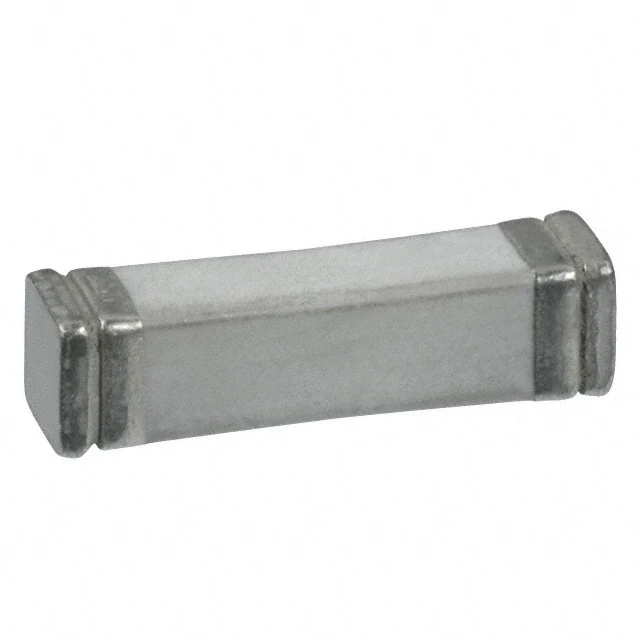

TR2/TCP1.25-RFUSE BRD MNT 1.25A 250VAC 2SMD |
3,953 |
|
Datasheet |
TCP | 2-SMD, Square End Block | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1.25A | 250 VAC | - | - | Telecom | - | - | CSA, UR | - | 50A | 0.405" L x 0.109" W x 0.109" H (10.29mm x 2.77mm x 2.77mm) | - | - |
|
SCF5432-15-05FUSE TRIGGERABLE 15A 36V 5 CELL |
5,245 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 15A | - | 36 VDC | Fast Blow | Battery Protection | 14.4 ~ 23.5V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
|
SCF5432-15-03FUSE TRIGGERABLE 15A 36V 3 CELL |
1,966 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 15A | - | 36 VDC | Fast Blow | Battery Protection | 7.4 ~ 13.8V Triggerable | - | cURus | -20°C ~ 60°C | 50A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
030801.5URFUSE BRD MNT 1.5A 24VAC/30VDC |
375 |
|
Datasheet |
308 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1.5A | 24 VAC | 30 VDC | Slow Blow | Hazardous Locations | Intrinsically Safe | - | cURus, Ex, IEC, IECEx | -40°C ~ 70°C | 50A | 0.213" L x 0.150" W x 0.144" H (5.40mm x 3.80mm x 3.65mm) | - | - |
|
0259.750MFUSE BRD MNT 750MA 125VAC/VDC |
990 |
|
Datasheet |
259 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 750mA | 125 VAC | 125 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | - | - |
|
ITV4030L2015NRFUSE BATTERY PROTECTOR 20V 15A |
4,017 |
|
Datasheet |
POLYSWITCH®, ITV4030 | 1612 (4030 Metric) | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 15A | - | 36 VDC | Fast Blow | Battery Protection | 14.4 ~ 23.5V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 50A | 0.157" L x 0.118" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) | - | - |
|
|
SCF5432-30-04FUSE TRIGGERABLE 30A 62V 4 CELL |
5,004 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 13.4 ~ 18.4V Triggerable | - | cURus | -20°C ~ 60°C | 80A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
157.5700.6401FUSE STRIP 400A 48VDC BOLT MOUNT |
167 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 400A | - | 48 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 2.4kA | 3.228" L x 0.787" W x 0.030" H (82.00mm x 20.00mm x 0.75mm) | - | - |
|
|
SCF5432-30-14FUSE TRIGGERABLE 30A 62V 12-14C |
14,383 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 45.2 ~ 62V Triggerable | - | cURus | -20°C ~ 60°C | 80A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
|
SCF5432-30-07FUSE TRIGGERABLE 30A 62V 6-7CELL |
376 |
|
Datasheet |
SCF5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 23 ~ 31.5V Triggerable | - | cURus | -20°C ~ 60°C | 80A | 0.213" L x 0.126" W x 0.053" H (5.40mm x 3.20mm x 1.35mm) | - | - |
|
C308F200MA-TR1FUSE CERAMIC 200MA 250VAC/VDC |
872 |
|
Datasheet |
C308F | Cartridge, Non-Standard | Tape & Reel (TR) | Active | Surface Mount | Cartridge, Ceramic | 200mA | 250 VAC | 250 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -55°C ~ 125°C | 4kA | 0.120" Dia x 0.343" L (3.05mm x 8.70mm) | - | - |
|
01591.25MRFUSE BOARD MNT 1.25A 600VAC 2SMD |
2,959 |
|
Datasheet |
Telelink® 159 | 2-SMD, Square End Block with Clip | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1.25A | 600 VAC | - | - | Telecom | Clips Included | - | cURus | -55°C ~ 125°C | 60A | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | - | - |
|
|
C308F63MA-TR1FUSE CERM 63MA 250VAC/VDC |
1,980 |
|
Datasheet |
C308F | Cartridge, Non-Standard | Tape & Reel (TR) | Active | Surface Mount | Cartridge, Ceramic | 63mA | 250 VAC | 250 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -55°C ~ 125°C | 4kA | 0.120" Dia x 0.343" L (3.05mm x 8.70mm) | - | - |
