Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR10V-11140CMC 14MH 1.1A 2LN TH |
296 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 14 mH @ 10 kHz | 1.1A | 370mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NVS-041090CMC 109MH 400MA 2LN TH |
259 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 109 mH @ 10 kHz | 400mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10VS-17048CMC 4.8MH 1.7A 2LN TH |
245 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.8 mH @ 10 kHz | 1.7A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-06385CMC 38.5MH 600MA 2LN TH |
238 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 38.5 mH @ 10 kHz | 600mA | 710mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-05570CMC 57MH 500MA 2LN TH |
230 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 57 mH @ 10 kHz | 500mA | 1.06Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-07330CMC 33MH 700MA 2LN TH |
180 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 10 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R13025CMC 2.5MH 1.3A 2LN TH |
700 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 1.3A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AML04B13-2R3M6R5-S1CMC 6.5A 2LN TH AEC-Q200 |
586 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6.5A | 15mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS26V-180092CMC 9.2MH 1.8A 2LN TH |
231 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.2 mH @ 1 kHz | 1.8A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-321CMC 3.5UH 3A 2LN TH |
145 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 µH @ 100 kHz | 3A | 14mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SH-201CMC 3A 2LN TH |
826 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 0.5 µH @ 100 kHz | 3A | 16mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSR21NV-06500CMC 50MH 600MA 2LN TH |
257 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 600mA | 760mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NH-031810CMC 181MH 300MA 2LN TH |
238 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 181 mH @ 10 kHz | 300mA | 2.85Ohm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M07680CMC 68MH 700MA 2LN TH |
236 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 700mA | 950mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-12175CMC 17.5MH 1.2A 2LN TH |
233 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 17.5 mH @ 10 kHz | 1.2A | 270mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-06500CMC 50MH 600MA 2LN TH |
210 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 600mA | 760mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

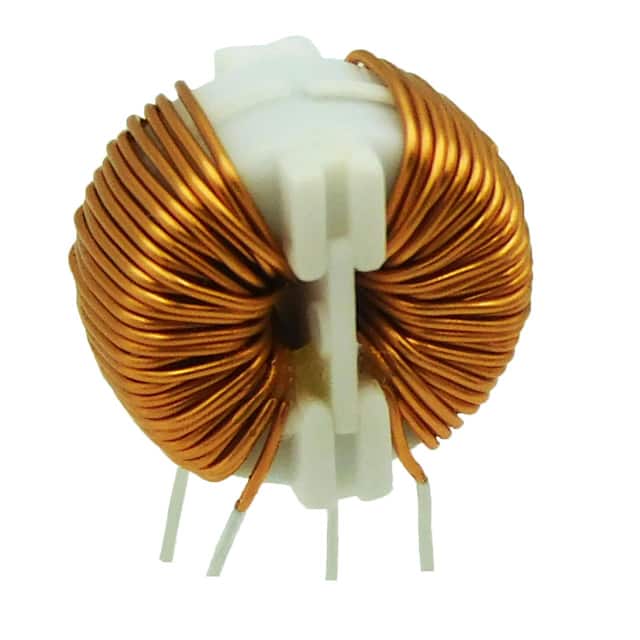

LPTC-V-2.55-2-75CMC 2.55MH 2A 2LN TH |
105 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2.55 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
B82721K2132U030CMC 65UH 1.3A 2LN TH |
710 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 µH @ 10 kHz | 1.3A | 200mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2501U030CMC 370UH 500MA 2LN TH |
675 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 370 µH @ 10 kHz | 500mA | 1.38Ohm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SSR21NH-M031900CMC 190MH 300MA 2LN TH |
537 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 190 mH @ 10 kHz | 300mA | 2.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
