Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NH-M30064CMC 6.4MH 3A 2LN TH |
405 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M15220CMC 22MH 1.5A 2LN TH |
239 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.5A | 260mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21HS-R08410CMC 41MH 800MA 2LN TH |
364 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 41 mH @ 10 kHz | 800mA | 780mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R041250CMC 125MH 400MA 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 125 mH @ 10 kHz | 400mA | 2.25Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R041050CMC 105MH 400MA 2LN TH |
119 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 105 mH @ 10 kHz | 400mA | 2.03Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R08540CMC 54MH 800MA 2LN TH |
115 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 54 mH @ 10 kHz | 800mA | 880mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R07700CMC 70MH 700MA 2LN TH |
108 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 70 mH @ 10 kHz | 700mA | 1.16Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SPDL764WM-225-2P-TCMC 5A 2LN 225 OHM SMD |
1,500 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 225 Ohms @ 100 MHz | - | 5A | 10Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
AML04A14-2R2M6R5-S1CMC 6.5A 2LN TH AEC-Q200 |
625 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6.5A | 10mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS28H-R10450-CHCMC 45MH 1A 2LN TH |
122 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 1 kHz | 1A | 650mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ECMT1V1714H-1R0-RCMC 1MH 1A 2LN TH |
2,407 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

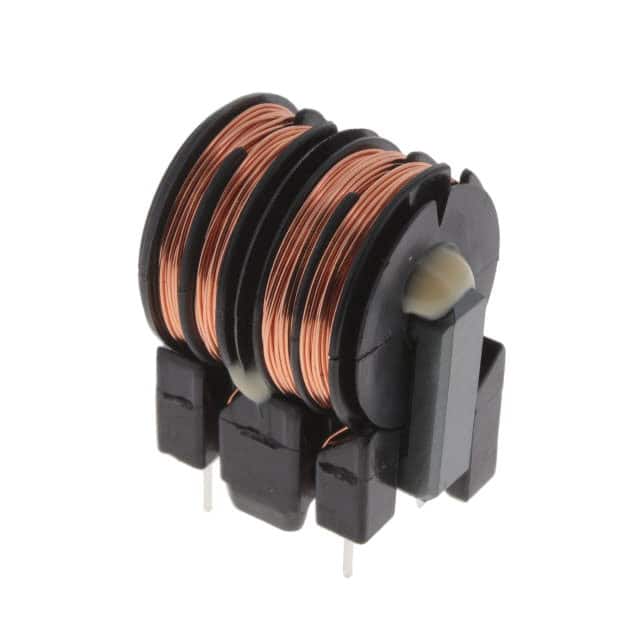

SS26V-R060860CMC 86MH 600MA 2LN TH |
346 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 86 mH @ 1 kHz | 600mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS26V-R070680CMC 68MH 700MA 2LN TH |
238 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 1 kHz | 700mA | 1.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CM1812A204R-1ACMC 200UH 100MA 2LN SMD AEC-Q200 |
13,806 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SSRH24NV-35086CMC 8.6MH 3.5A 2LN TH |
237 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.6 mH @ 10 kHz | 3.5A | 78mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-40069CMC 6.9MH 4A 2LN TH |
180 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.9 mH @ 10 kHz | 4A | 57mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-45059CMC 5.9MH 4.5A 2LN TH |
177 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.9 mH @ 10 kHz | 4.5A | 48mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-35086CMC 8.6MH 3.5A 2LN TH |
103 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.6 mH @ 10 kHz | 3.5A | 78mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH7HS-M13046CMC 4.6MH 1.3A 2LN TH |
692 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 1.3A | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
AML04B16-4R6M6R0-S1CMC 6A 2LN TH AEC-Q200 |
676 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6A | 20mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
