Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21HS-R12220CMC 22MH 1.2A 2LN TH |
360 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

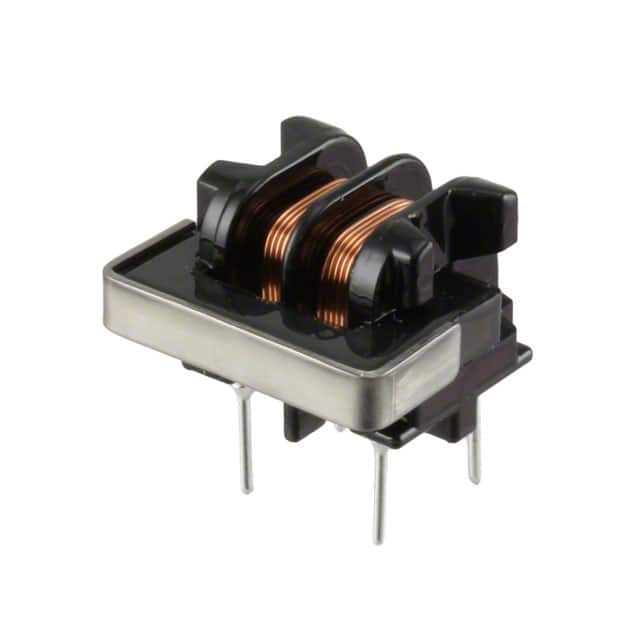

SU9H-10005CMC 500UH 1A 2LN TH |
586 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 1 kHz | 1A | 300mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSR21NV-07405CMC 40.5MH 700MA 2LN TH |
269 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 40.5 mH @ 10 kHz | 700mA | 610mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-25027CMC 2.7MH 2.5A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 10 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-04507CMC 50.7MH 400MA 2LN TH |
236 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50.7 mH @ 10 kHz | 400mA | 2.03Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SU10VFC-R17016CMC 1.6MH 1.7A 2LN TH |
349 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 1 kHz | 1.7A | 210mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
7448640408CMC 1.8MH 1.5A 2LN TH |
122 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1.5A | 120mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640399CMC 3.9MH 1A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640403CMC 18MH 500MA 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.17Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640407CMC 1.2MH 1.6A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 1.6A | 100mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640402CMC 10MH 600MA 2LN TH |
110 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 600mA | 720mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SHO-501CMC 800MA 2LN TH |
988 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 17.5 µH @ 100 kHz | 800mA | 105mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SU10VD-10050CMC 50UH 1A 2LN TH |
556 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 µH @ 1 kHz | 1A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN5-5501NMC 80.0UH 1.0A 0.2000 OHM TH |
191 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
ECMT1V2023S-2R0-RCMC 2MH 1.5A 2LN TH |
2,283 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 1.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721K2801U030CMC 150UH 800MA 2LN TH |
740 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 150 µH @ 10 kHz | 800mA | 470mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSR10H-17058CMC 5.8MH 1.7A 2LN TH |
598 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.8 mH @ 10 kHz | 1.7A | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10VS-05495CMC 49.5MH 500MA 2LN TH |
596 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 49.5 mH @ 10 kHz | 500mA | 1.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10V-06475CMC 47.5MH 600MA 2LN TH |
590 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10V-22034CMC 3.4MH 2.2A 2LN TH |
371 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
