Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS11VL-13035CMC 3.5MH 1.3A 2LN TH |
3,895 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1.3A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN212-3.6-02-0M4CMC 400UH 3.6A 2LN TH |
2,861 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 10 kHz | 3.6A | 27mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN212-0.4-02-39MCMC 39MH 400MA 2LN TH |
2,593 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 1.5Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN114-0.3-02-47MCMC 47MH 300MA 2LN TH |
1,322 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 1.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82731T2132A020CMC 6.8MH 1.3A 2LN TH |
532 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 370mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN214-0.3-02-47MCMC 47MH 300MA 2LN TH |
468 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 1.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

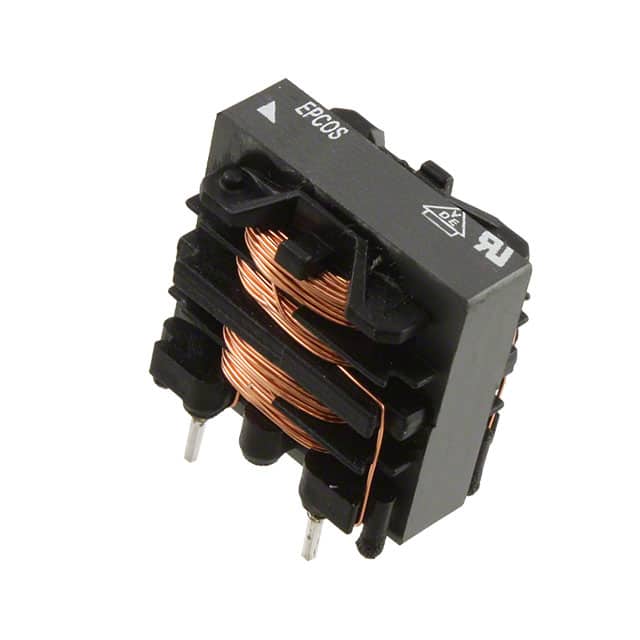

B82731T2801A020CMC 15MH 800MA 2LN TH |
382 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 800mA | 950mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SU10VFC-R20010CMC 1MH 2A 2LN TH |
1,513 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R05140CMC 14MH 500MA 2LN TH |
511 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 500mA | 1.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
RN214-1.5-02-6M8CMC 6.8MH 1.5A 2LN TH |
11,920 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A | 123mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82732R2701B030CMC 39MH 700MA 2LN TH |
1,238 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 700mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82791G2501N001CMC 10MH 500MA 2LN TH |
130 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

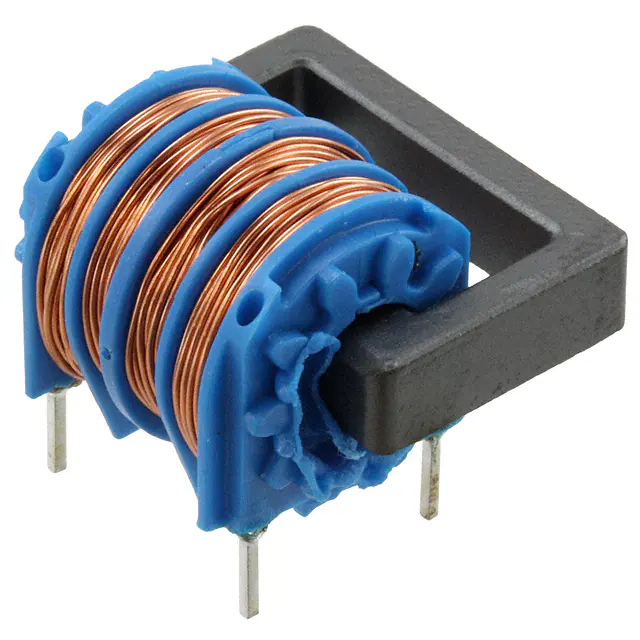

B82731H2701A030CMC 27MH 700MA 2LN TH |
1,501 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 700mA | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82731T2301A020CMC 100MH 300MA 2LN TH |
376 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 300mA | 6.6Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS21V-R300013CMC 1.3MH 3A 2LN TH |
507 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 1 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721K2402N020CMC 700UH 4A 2LN TH |
295 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 4A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SU10VD-20010CMC 10UH 2A 2LN TH |
1,840 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 2A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

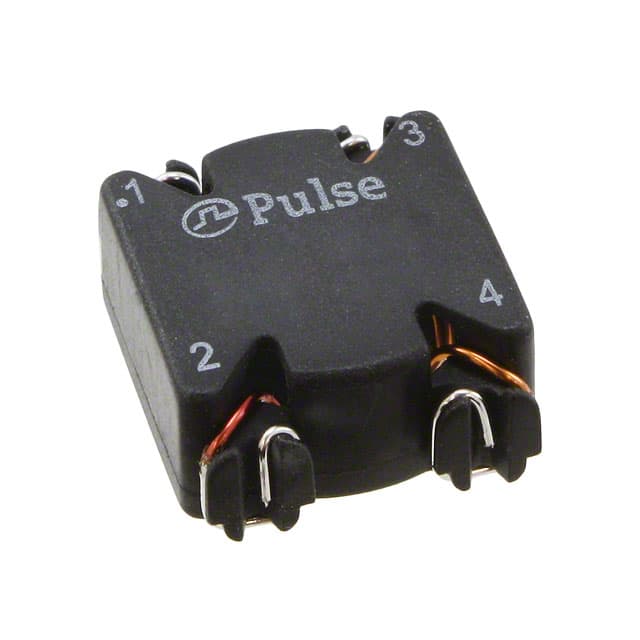

PA2751NLCMC 4.2A 2LN SMD |
1,554 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.2A | 16mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
744225CMC 40UH 900MA 2LN 3.1K OHM SMD |
6,340 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.1 kOhms @ 40 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744228SCMC 25UH 1A 2LN 2.8K OHM SMD |
3,098 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 25 µH @ 1 kHz | 1A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
