Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

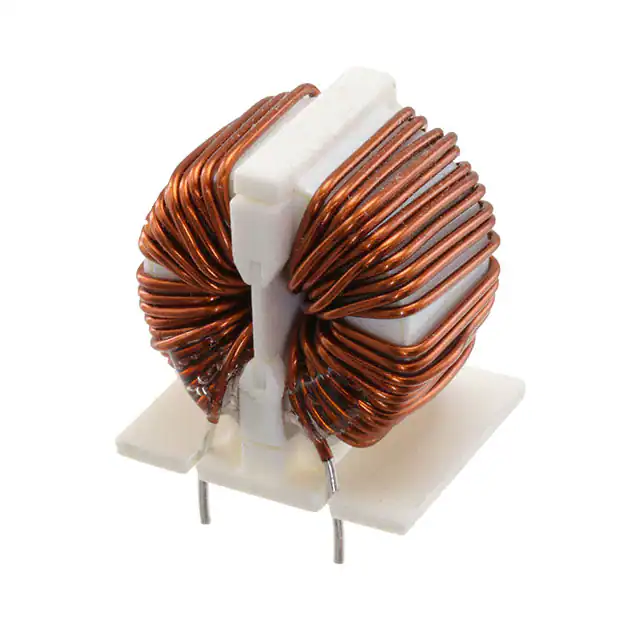

SC-04-E17JCMC 1.785MH 4.3A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.785 mH @ 10 kHz | 4.3A | 31.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSR10H-14140CMC 14MH 1.4A 2LN TH |
1,049 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 10 kHz | 1.4A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82730U3951A020CMC 2.2MH 950MA 2LN TH |
851 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 950mA | 410mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
SSR10V-21038CMC 3.8MH 2.1A 2LN TH |
431 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 2.1A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VD-10010CMC 10UH 1A 2LN TH |
787 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 1A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

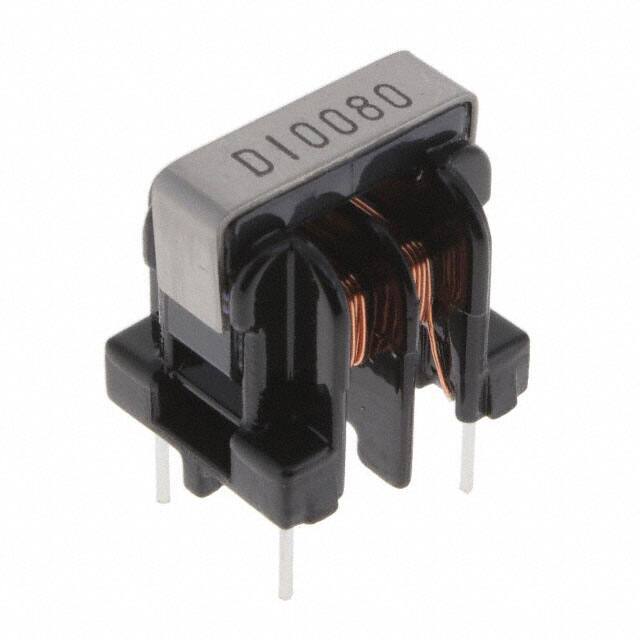

SU10VD-10080CMC 80UH 1A 2LN TH |
426 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 80 µH @ 1 kHz | 1A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE060502A650TGCMC 50MA 2LN 65 OHM SMD ESD |
9,358 |
|
Datasheet |
0202 (0605 Metric), 6 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 50mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACMP-1264-231-TCMC 10A 2LN 230 OHM SMD |
4,528 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 4mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82731M2351A030CMC 100MH 350MA 2LN TH |
5,024 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 350mA | 4.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

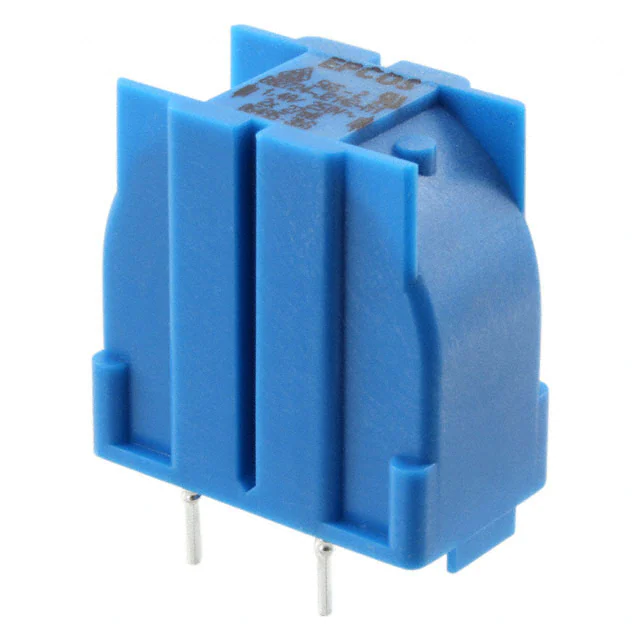

B82724J2142N001CMC 27MH 1.4A 2LN TH |
791 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2501U031CMC 280UH 500MA 2LN TH |
380 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 280 µH @ 10 kHz | 500mA | 1.14Ohm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NV-M031900CMC 190MH 300MA 2LN TH |
1,034 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 190 mH @ 10 kHz | 300mA | 2.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-060220CMC 22MH 600MA 2LN TH |
600 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82732F2901B001CMC 27MH 900MA 2LN TH |
2,769 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 900mA | 770mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

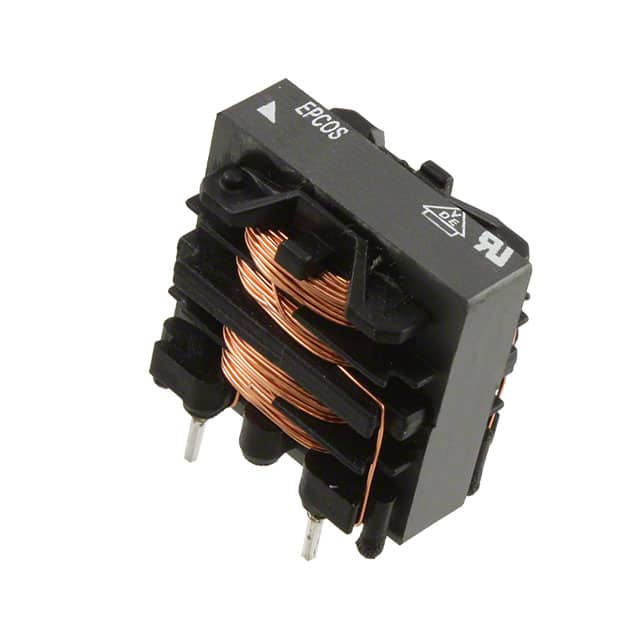

B82731T2451A020CMC 47MH 450MA 2LN TH |
1,224 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 450mA | 2.8Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

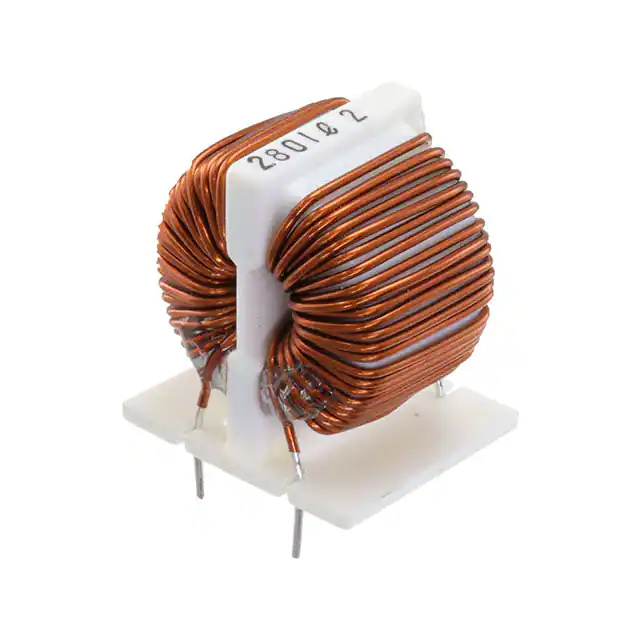

SC-05-06JCMC 600UH 5A 2LN TH |
104 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 5A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SPDL764WM-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,226 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 15Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SS21V-100098CMC 9.8MH 1A 2LN TH |
200 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.8 mH @ 1 kHz | 1A | 600mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721A2401N020CMC 39MH 400MA 2LN TH |
3,067 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82722A2501N001CMC 27MH 500MA 2LN TH |
1,979 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
