Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SU7VC-05011CMC 1.1MH 500MA 2LN TH |
3,364 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 1 kHz | 500mA | 840mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
B82733F2142B001CMC 27MH 1.4A 2LN TH |
1,193 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SU9VF-03060CMC 6MH 300MA 2LN TH |
717 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 1 kHz | 300mA | 2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
ACE2V3225-101-RCMC 80UH 100MA 2LN 3KOHM SMD |
4,456 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 10 MHz | 80 µH @ 100 kHz | 100mA | 3.12Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82730U3451A020CMC 10MH 450MA 2LN TH |
8,696 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 450mA | 1.75Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
SU9V-03050CMC 5MH 300MA 2LN TH |
1,000 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 300mA | 3Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
|
SU9V-10005CMC 500UH 1A 2LN TH |
733 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 1 kHz | 1A | 300mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
ECLAMP8052PQTCTCMC 2LN SMD ESD AEC-Q100 |
6,058 |
|
Datasheet |
5-UFDFN | - | 2 | - | - | - | 1.8Ohm | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
B82730G3401A020CMC 15MH 400MA 2LN TH |
1,283 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 2.4Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
SS11VL-R03820CMC 82MH 300MA 2LN TH |
685 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 1 kHz | 300mA | 4.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
B82730G3262A020CMC 330UH 2.6A 2LN TH |
680 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 2.6A | 60mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

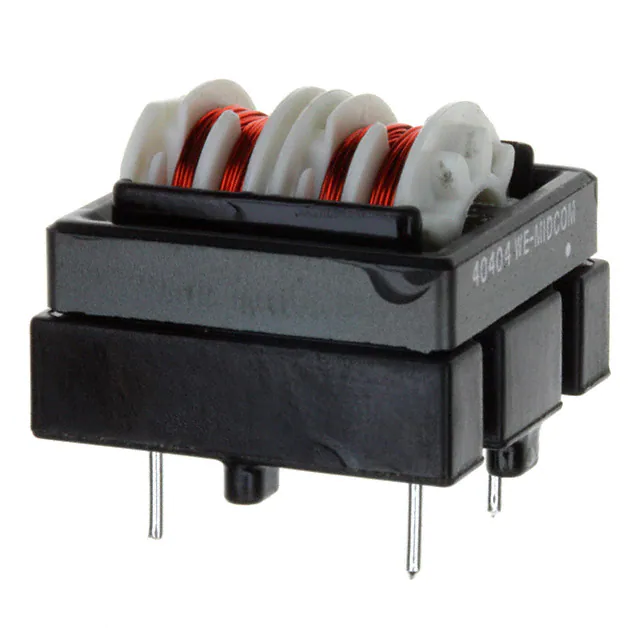

7448640404CMC 22MH 400MA 2LN TH |
369 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 400mA | 1.61Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640417CMC 22MH 400MA 2LN TH |
304 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 10 kHz | 520mA | 1.87Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640395CMC 820UH 2A 2LN TH |
249 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 820 µH @ 10 kHz | 2A | 70mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640412CMC 3.9MH 1A 2LN TH |
155 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1A | 270mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640401CMC 6.8MH 800MA 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 800mA | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640406CMC 820UH 2A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 820 µH @ 10 kHz | 2A | 70mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640409CMC 2.2MH 1.3A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 1.3A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640396CMC 1.8MH 1.5A 2LN TH |
119 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1.5A | 150mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640405CMC 33MH 300MA 2LN TH |
108 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 300mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
