Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EH20-0.3-02-33MCMC 33MH 300MA 2LN TH |
522 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 400 Hz | 300mA | 1.78Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
RN218-0.6-02-47MCMC 47MH 600MA 2LN TH |
500 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN218-0.4-02-100MCMC 100MH 400MA 2LN TH |
271 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 400mA | 2.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82732R2142B030CMC 10MH 1.4A 2LN TH |
2,442 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 300mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN218-1.4-02-10MCMC 10MH 1.4A 2LN TH |
1,652 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 330mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSHB10HS-04265CMC 26.5MH 400MA 2LN TH |
300 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 26.5 mH @ 10 kHz | 400mA | 2.45Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

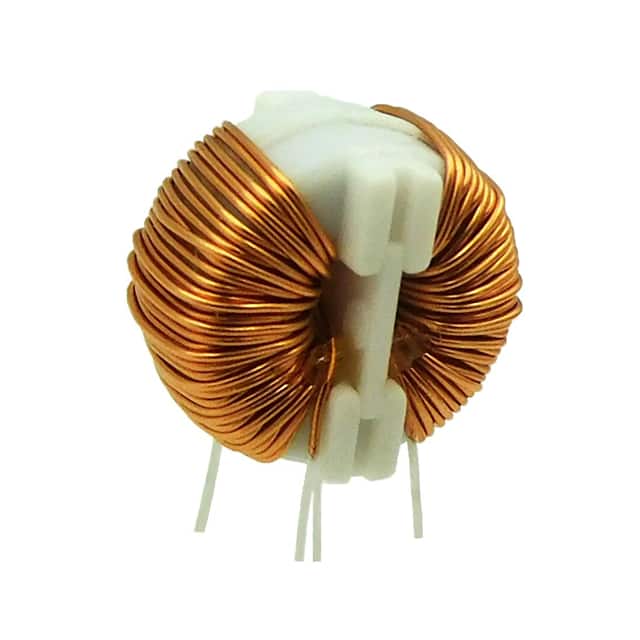

LPTC-V-4.25-1-150CMC 4.25MH 1A 2LN TH |
1,150 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.25 mH @ 1 kHz | 1A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SS21V-080136CMC 13.6MH 800MA 2LN TH |
600 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 13.6 mH @ 1 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

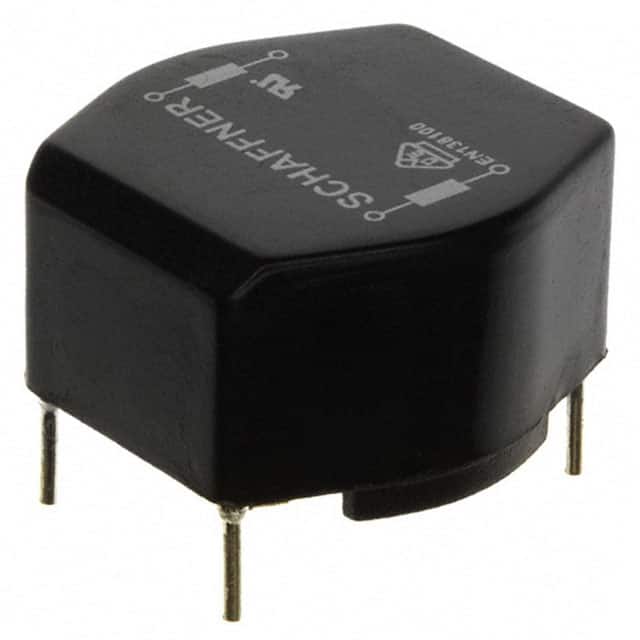

RN116-1.5-02-10MCMC 10MH 1.5A 2LN TH |
167 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 148mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82722A2301N001CMC 47MH 300MA 2LN TH |
280 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
LPTC-V-0.51-3-20CMC 510UH 3A 2LN TH |
1,461 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 510 µH @ 1 kHz | 3A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
RN116-2-02-2M2CMC 2.2MH 2A 2LN TH |
729 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 66mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NVS-M10345CMC 34.5MH 1A 2LN TH |
163 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1A | 510mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-04-200CMC 2MH 4A 2LN TH |
114 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 4A | 55mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
EV20-0.3-02-33MCMC 33MH 300MA 2LN TH |
1,917 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 300mA | 1.78Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EV20-0.5-02-18MCMC 18MH 500MA 2LN TH |
1,442 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 400 Hz | 500mA | 725mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SSR21NV-M20125CMC 12.5MH 2A 2LN TH |
855 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 2A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-M30064CMC 6.4MH 3A 2LN TH |
833 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

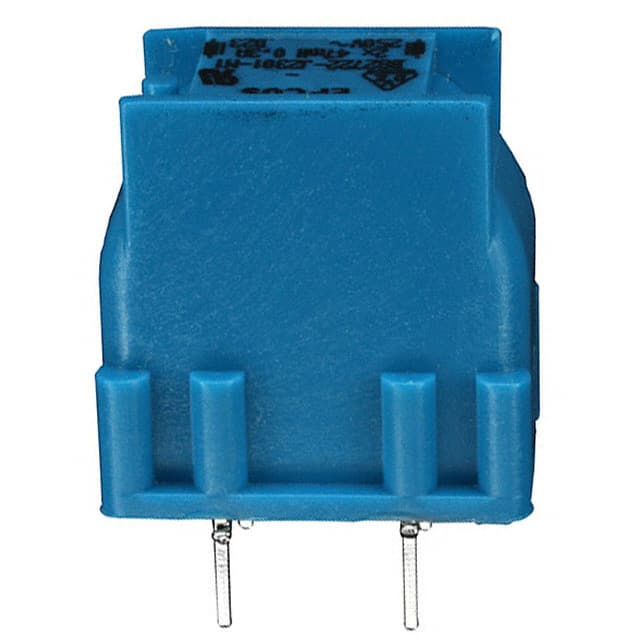

B82722J2301N001CMC 47MH 300MA 2LN TH |
581 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

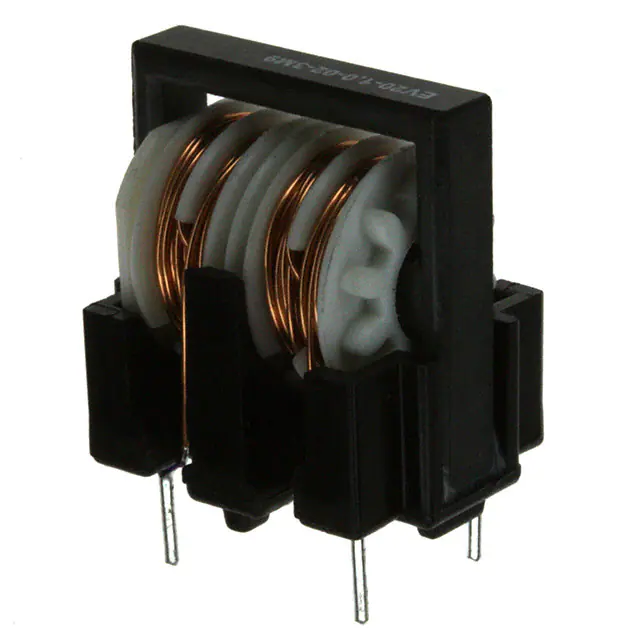

EV20-1.0-02-3M9CMC 3.9MH 1A 2LN TH |
195 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 400 Hz | 1A | 168mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
