Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82731M2901A030CMC 15MH 900MA 2LN TH |
4,467 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 900mA | 600mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-04-D050CMC 50UH 4A 2LN TH |
237 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 4A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

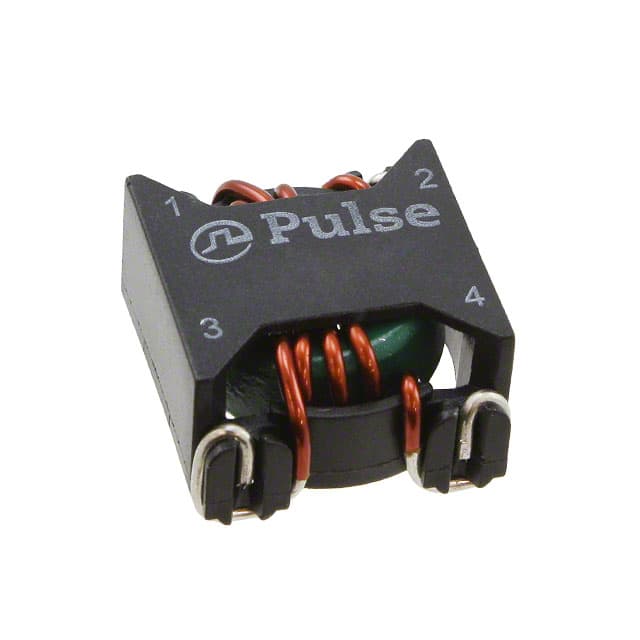

PA2752NLCMC 1.4A 2LN SMD |
219 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1.4A | 210mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82721K2401N020CMC 39MH 400MA 2LN TH |
1,968 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS26V-300028CMC 2.8MH 3A 2LN TH |
415 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 1 kHz | 3A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
B82732R2222B030CMC 3.3MH 2.2A 2LN TH |
1,212 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

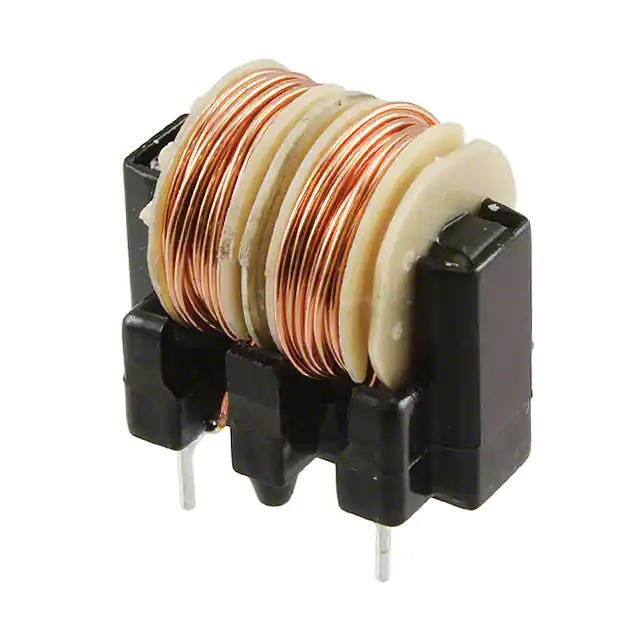

SSB11V-R17043CMC 4.3MH 1.7A 2LN TH |
1,598 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.3 mH @ 1 kHz | 1.7A | 180mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
B82720H0015A025CMC 10MH 600MA 2LN TH |
2,900 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 600mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82720K2301N042CMC 22MH 300MA 2LN TH |
1,904 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSHB10HS-R30015CMC 1.5MH 3A 2LN TH |
223 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-R22034CMC 3.4MH 2.2A 2LN TH |
183 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721A2152N001CMC 3.3MH 1.5A 2LN TH |
1,720 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 180mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

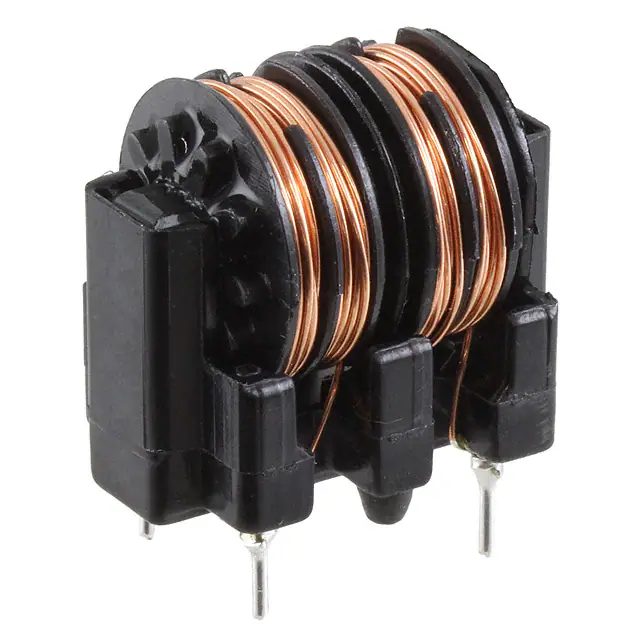

SS11V-R10093-CHCMC 9.3MH 1A 2LN TH |
605 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.3 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

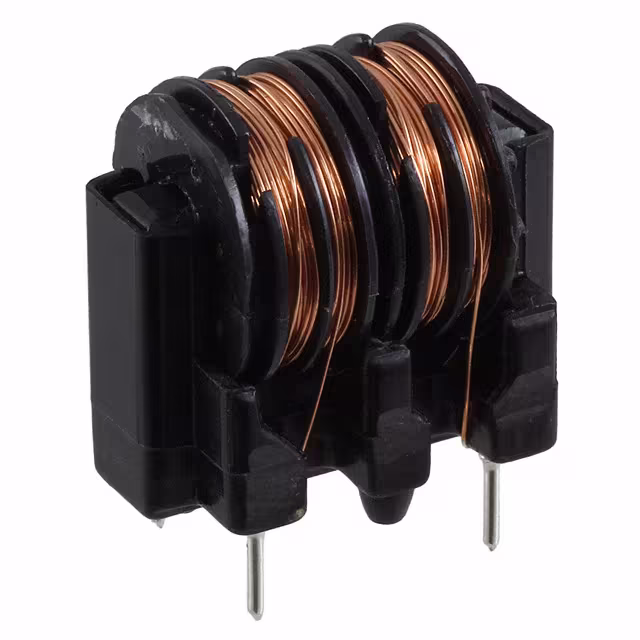

SS11V-R05350-CHCMC 35MH 500MA 2LN TH |
588 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 500mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721A2602N020CMC 200UH 6A 2LN TH |
587 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 6A | 15mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS20H-08100CMC 10MH 800MA 2LN TH |
113 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 800mA | 660mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SBT-0140WCMC 40UH 500MA 2LN TH |
755 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 40 µH @ 1 kHz | 500mA | 40mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|

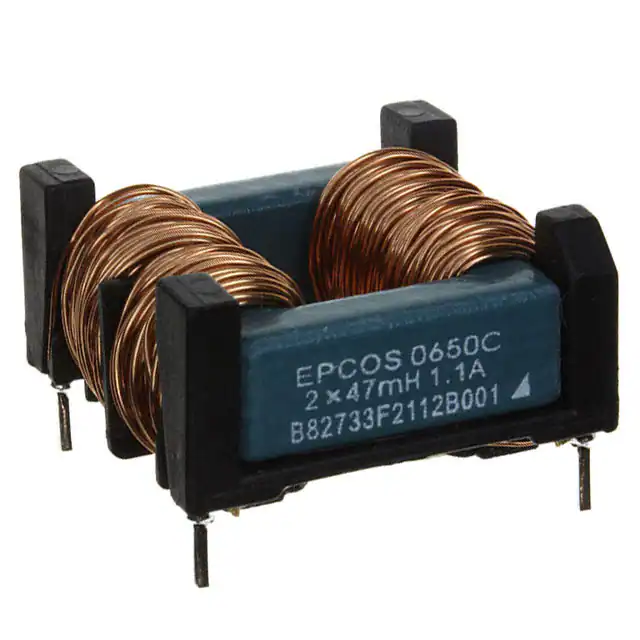

B82733F2112B001CMC 47MH 1.1A 2LN TH |
723 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.1A | 804mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SSHB10H-R06400CMC 40MH 600MA 2LN TH |
300 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 40 mH @ 10 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ECMT1V1717S-330-RCMC 33MH 500MA 2LN TH |
1,244 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 500mA | 2.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
