Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN116-0.5-02-47MCMC 47MH 500MA 2LN TH |
846 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 500mA | 960mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

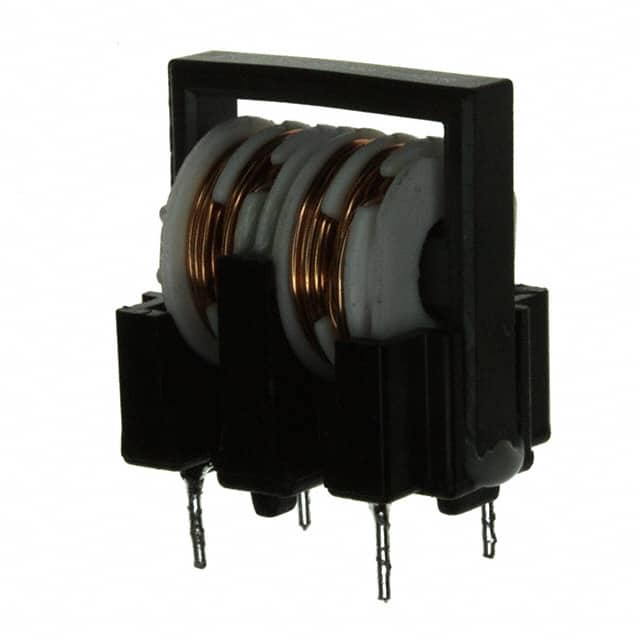

EV20-1.2-02-3M3CMC 3.3MH 1.2A 2LN TH |
295 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 400 Hz | 1.2A | 127mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82791G2251N020CMC 47MH 250MA 2LN TH |
1,105 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 250mA | 2.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-06-E200JHCMC 2MH 6A 2LN TH |
574 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

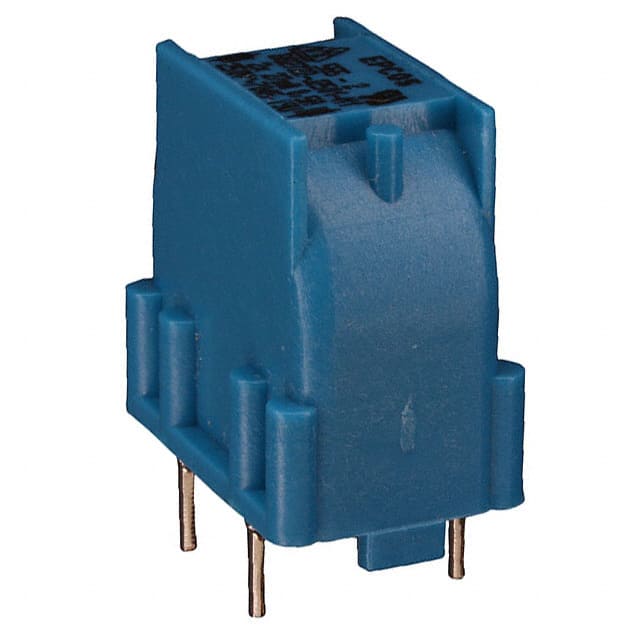

B82722J2501N001CMC 27MH 500MA 2LN TH |
493 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82722J2152N020CMC 10MH 1.5A 2LN TH |
181 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 240mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82734R2232B030CMC 15MH 2.3A 2LN TH |
7,875 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.3A | 185mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744281471CMC 470UH 150MA 2LN 100K OHM SMD |
866 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 100 kOhms @ 3 MHz | 470 µH @ 100 kHz | 150mA | 4.3Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82720K2152N040CMC 1.6MH 1.5A 2LN TH |
613 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
744281101CMC 100UH 350MA 2LN 50K OHM SMD |
512 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 50 kOhms @ 7 MHz | 100 µH @ 100 kHz | 350mA | 950mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-090CMC 9.4MH 2A 2LN TH |
139 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9.4 mH @ 10 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SBT-0160WCMC 60UH 500MA 2LN TH |
1,841 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 60 µH @ 1 kHz | 500mA | 45mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
SC-01-50GCMC 5MH 1A 2LN TH |
1,315 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 1A | 150mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82720A2152N040CMC 1.6MH 1.5A 2LN TH |
683 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CMF23V-103231CMC 10MH 2.3A 2LN TH |
290 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 206mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
SH-303CMC 15UH 2.1A 2LN TH |
522 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 µH @ 100 kHz | 2.1A | 10mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SU16VD-40010CMC 10UH 4A 2LN TH |
459 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 4A | 40mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
744207CMC 35UH 2.7A 2LN SMD |
2,726 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 35 µH @ 100 kHz | 2.7A | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

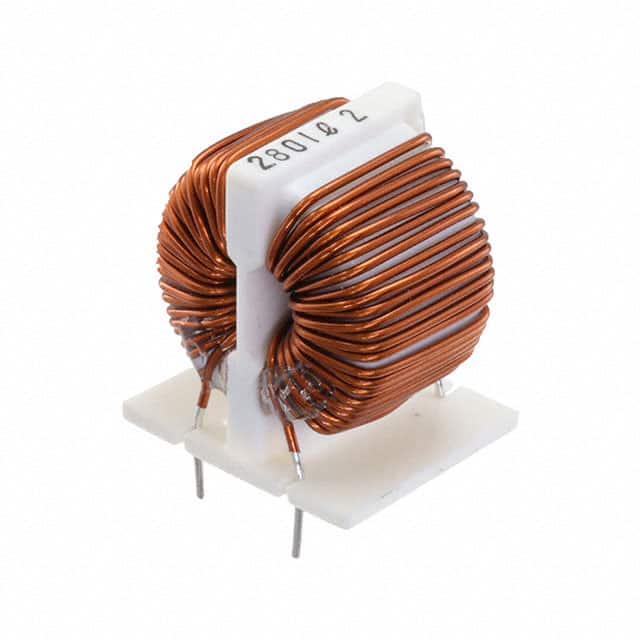

SC-03-06GCMC 600UH 3A 2LN TH |
527 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 3A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82791H2601N001CMC 6.8MH 600MA 2LN TH |
639 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 600mA | 630mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
